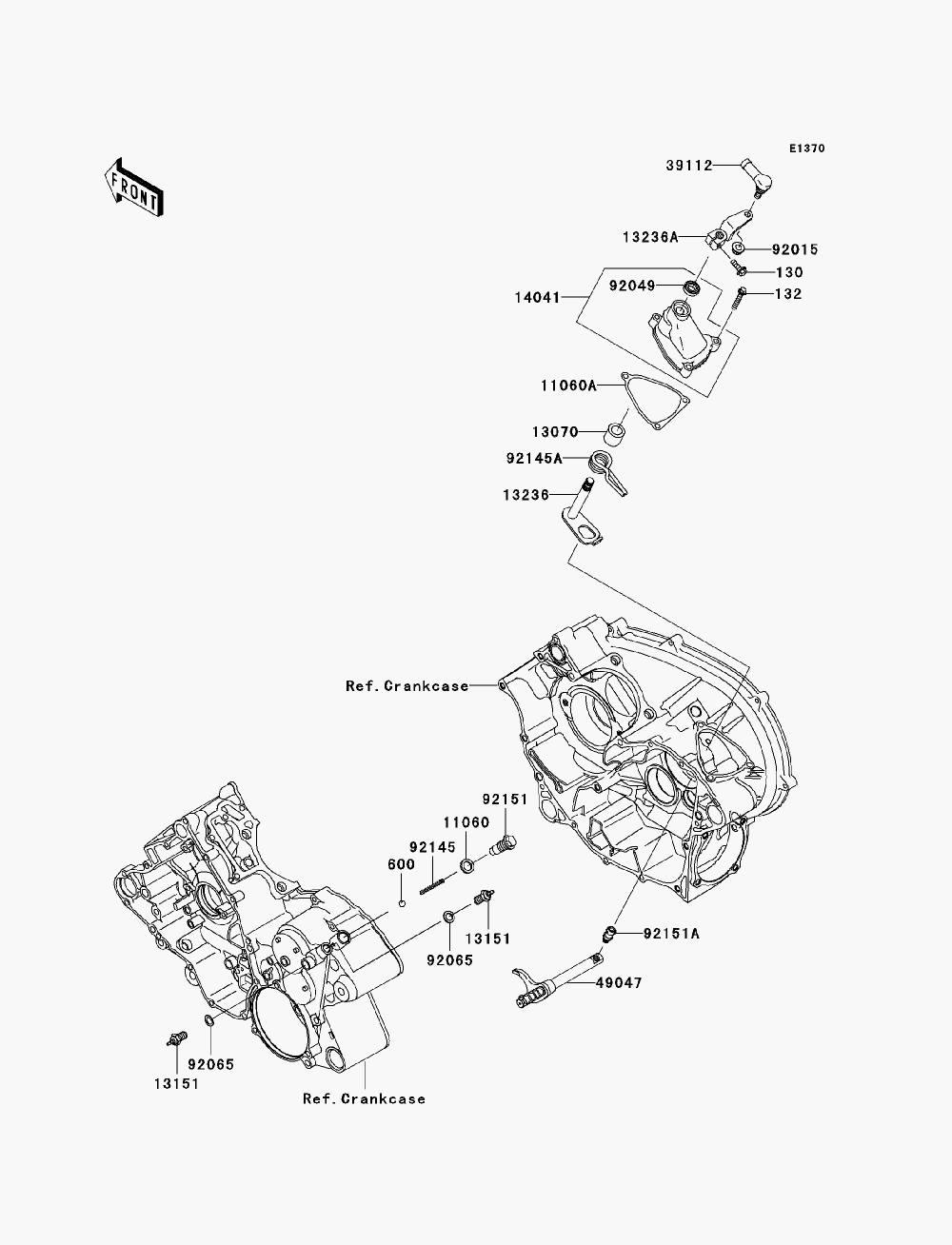

GEAR CHANGE MECHANISM для Kawasaki BRUTE FORCE 750 4X4I (KVF750C7F) - 2007 года выпуска
-
№АртикулНазвание
-
130130Z0620 BOLT-FLANGED,6X20BOLT-FLANGED,6X20
-
132132Y0630 BOLT-FLANGED-SMALL,6X30BOLT-FLANGED-SMALL,6X30
-
600600A1000 BALL-STEEL,5/16"BALL-STEEL,5/16"
-
1106011060-1287 GASKET,14X20X2GASKET,14X20X2
-
11060A11060-1956 GASKET,CHANGE LEVER COVERGASKET,CHANGE LEVER COVER
-
1307013070-1352 GUIDEGUIDE
-
1315113151-1080 SWITCH-COMP,NEUTRALSWITCH-COMP,NEUTRAL
-
1323613236-0051 LEVER-COMP,CHANGELEVER-COMP,CHANGE
-
13236A13236-1343 LEVER-COMP,CHANGE LEVERLEVER-COMP,CHANGE LEVER
-
1404114041-1136 COVER-COMP,CHANGE LEVERCOVER-COMP,CHANGE LEVER
-
3911239112-1080 RODEND-TIE,CHANGE LEVERRODEND-TIE,CHANGE LEVER
-
4904749047-1104 ROD-SHIFTROD-SHIFT
-
9201592015-1432 NUT,8MMNUT,8MM
-
9204992049-1271 SEAL-OIL,TB12205.5SEAL-OIL,TB12205.5
-
9206592065-058 GASKET,10.5X16X1GASKET,10.5X16X1
-
9214592145-1297 SPRING,CHANGE POSITIONSPRING,CHANGE POSITION
-
92145A92145-1299 SPRING,CHANGE LEVERSPRING,CHANGE LEVER
-
9215192151-1687 BOLT,CHANGE POSITIONBOLT,CHANGE POSITION
-
92151A92151-1699 BOLT,SHIFT RODBOLT,SHIFT ROD
