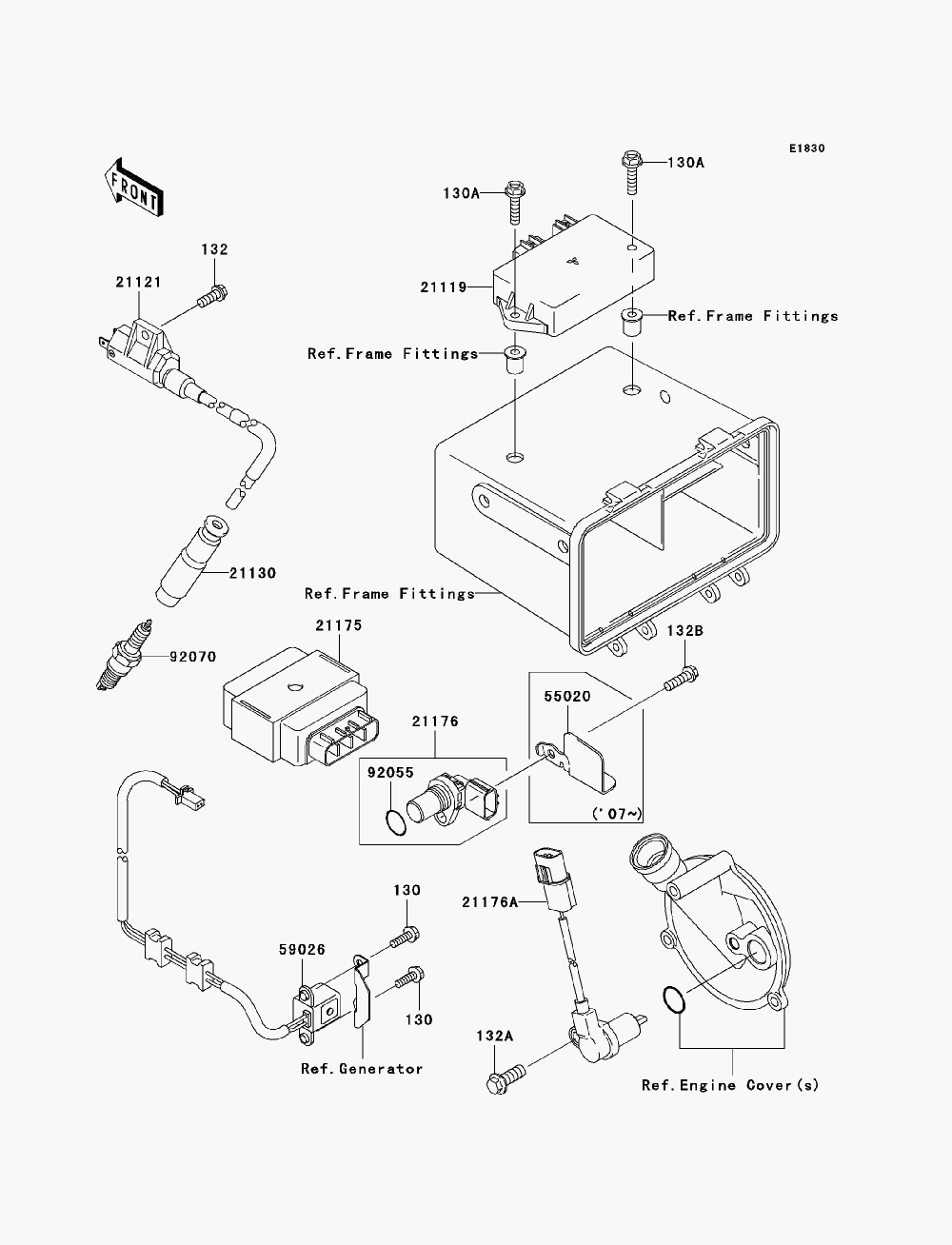

IGNITION SYSTEM для Kawasaki PRAIRIE 360 (KVF360B7F) - 2007 года выпуска
-
№АртикулНазвание
-
130130G0516 BOLT-FLANGED,5X16BOLT-FLANGED,5X16
-
130A130J0625 BOLT-FLANGED,6X25BOLT-FLANGED,6X25
-
132132H0616 BOLT-FLANGED-SMALL,6X16BOLT-FLANGED-SMALL,6X16
-
132A132H0822 BOLT-FLANGED-SMALL,8X22BOLT-FLANGED-SMALL,8X22
-
132B132Y0620 BOLT-FLANGED-SMALL,6X20BOLT-FLANGED-SMALL,6X20
-
2111921119-1627 IGNITERIGNITER
-
2112121121-1160 COIL-IGNITIONCOIL-IGNITION
-
2113021130-1071 CAP-SPARK PLUGCAP-SPARK PLUG
-
2117521175-0086 CONTROL UNIT-ELECTRONICCONTROL UNIT-ELECTRONIC
-
2117621176-1104 SENSOR,SPEEDSENSOR,SPEED
-
21176A21176-1109 SENSOR, REVERSESENSOR, REVERSE
-
5502055020-0247 GUARDGUARD
-
5902659026-1110 COIL-PULSINGCOIL-PULSING
-
9205592055-1718 RING-ORING-O
-
9207092070-1065 PLUG-SPARK,DPR8EA-9(NGK)PLUG-SPARK,DPR8EA-9(NGK)
