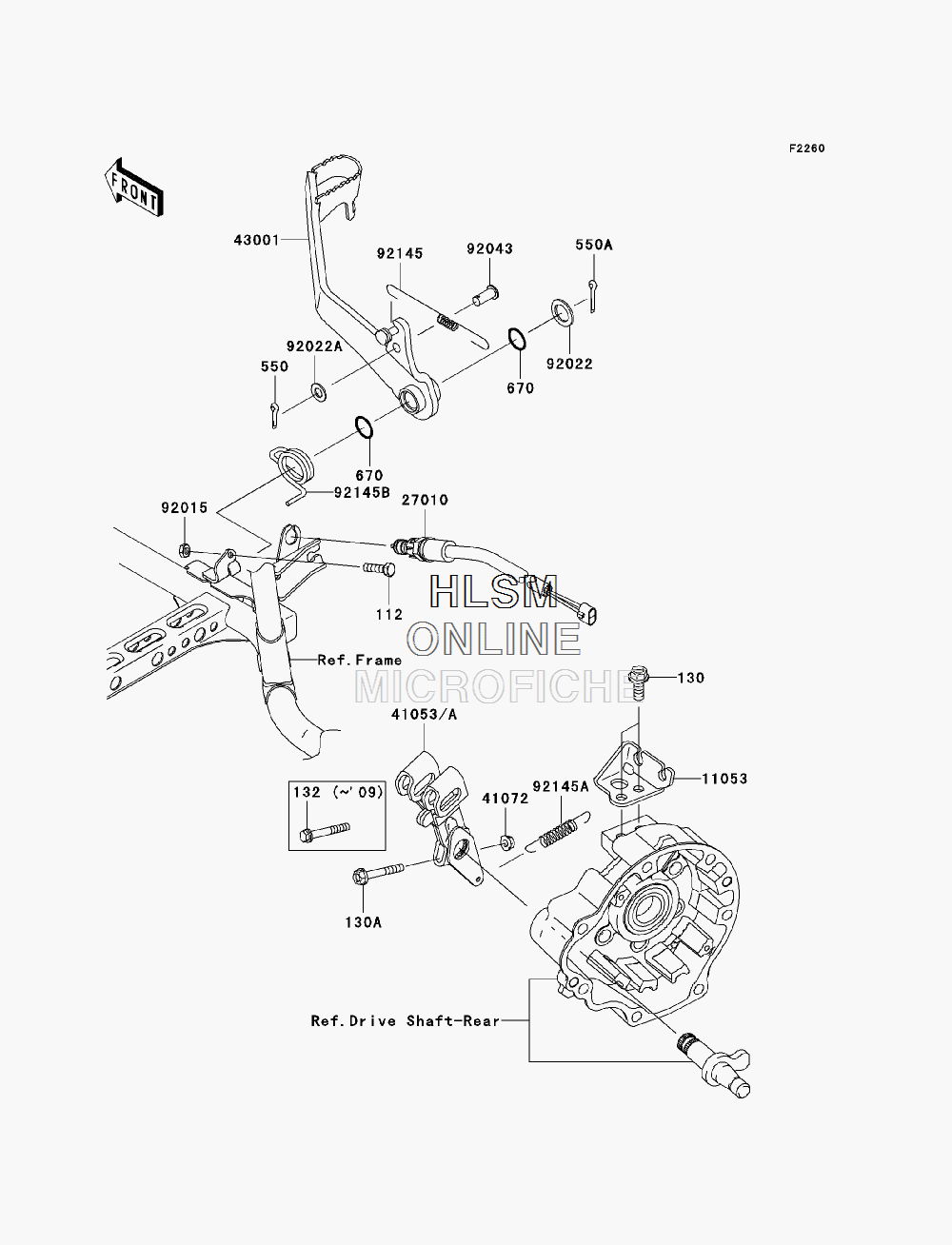

BRAKE PEDAL для Kawasaki BRUTE FORCE 750 4X4I HARDWOODS GREEN HD (KVF750E8F) - 2008 года выпуска
-
№АртикулНазвание
-
112112AA0622 BOLT-UPSET,6X22BOLT-UPSET,6X22
-
130130BB0820 BOLT-FLANGED,8X20BOLT-FLANGED,8X20
-
132132BA0640 BOLT-FLANGED-SMALL,6X40BOLT-FLANGED-SMALL,6X40
-
550550AA2015 PIN-COTTER,2.0X15PIN-COTTER,2.0X15
-
550A550AA2022 PIN-COTTER,2.0X22PIN-COTTER,2.0X22
-
670670B2015 O RING,15MMO RING,15MM
-
1105311053-0642 BRACKET,BRAKE CABLEBRACKET,BRAKE CABLE
-
2701027010-1494 SWITCH,BRAKESWITCH,BRAKE
-
4105341053-0006 LEVER-BRAKE CAMLEVER-BRAKE CAM
-
4107241072-007 NUT,6MMNUT,6MM
-
4300143001-0092 LEVER-BRAKE,PEDALLEVER-BRAKE,PEDAL
-
9201592015-1410 NUT,6MMNUT,6MM
-
9202292022-1049 WASHER,15.5X24X1.6WASHER,15.5X24X1.6
-
92022A92022-1582 WASHER,8.5X16X1.2WASHER,8.5X16X1.2
-
9204392043-1013 PIN,8X16PIN,8X16
-
9214592145-0144 SPRING, REAR BRAKE SWITCHSPRING, REAR BRAKE SWITCH
-
92145A92145-1313 SPRING,BRAKE LEVER RETURNSPRING,BRAKE LEVER RETURN
-
92145B92145-1421 SPRING,BRAKE PEDAL RETURNSPRING,BRAKE PEDAL RETURN
