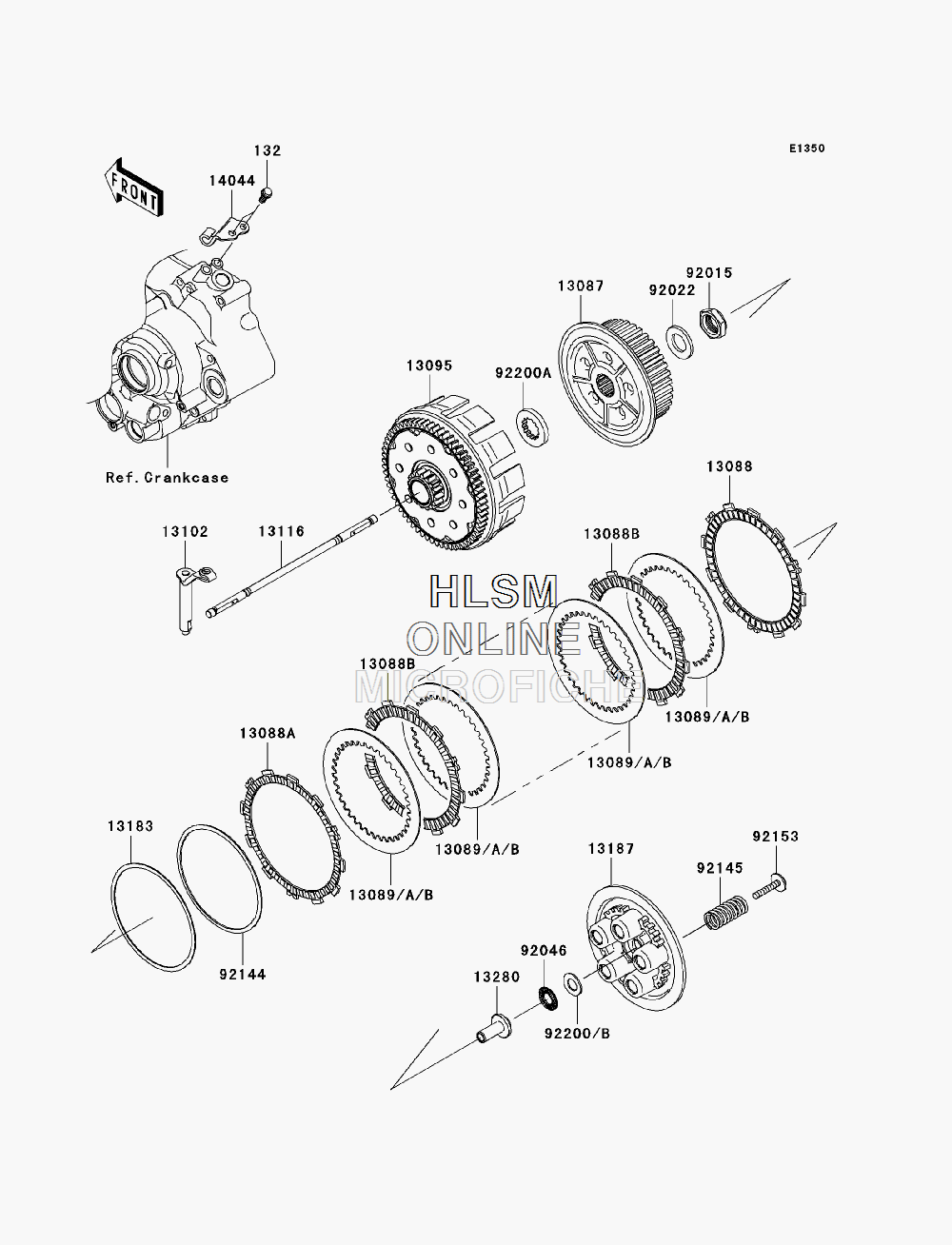

CLUTCH для Kawasaki KFX450R (KSF450B8F) - 2008 года выпуска
-
№АртикулНазвание
-
132132BD0614 BOLT-FLANGED-SMALL,6X14BOLT-FLANGED-SMALL,6X14
-
1308713087-0015 HUB-CLUTCHHUB-CLUTCH
-
1308813088-0010 PLATE-FRICTIONPLATE-FRICTION
-
13088A13088-0029 PLATE-FRICTIONPLATE-FRICTION
-
13088B13088-0035 PLATE-FRICTIONPLATE-FRICTION
-
1308913089-1005 PLATE-CLUTCH,T=2.0PLATE-CLUTCH,T=2.0
-
13089A13089-1010 PLATE-CLUTCH,T=1.2PLATE-CLUTCH,T=1.2
-
13089B13089-1095 PLATE-CLUTCH,T=1.6PLATE-CLUTCH,T=1.6
-
1309513095-0074 HOUSING-COMP-CLUTCHHOUSING-COMP-CLUTCH
-
1310213102-0030 RELEASE-COMP-CLUTCHRELEASE-COMP-CLUTCH
-
1311613116-0019 ROD-PUSHROD-PUSH
-
1318313183-1722 PLATE,JUDDER SPRINGPLATE,JUDDER SPRING
-
1318713187-0007 PLATE-CLUTCH OPERATINGPLATE-CLUTCH OPERATING
-
1328013280-0067 HOLDERHOLDER
-
1404414044-0027 HOLDER-CABLEHOLDER-CABLE
-
9201592015-1725 NUT,20MMNUT,20MM
-
9202292022-1868 WASHER,20.3X36X3.7WASHER,20.3X36X3.7
-
9204692046-1190 BEARING-NEEDLE,FNTA-1326BEARING-NEEDLE,FNTA-1326
-
9214492144-1591 SPRING,JUDDERSPRING,JUDDER
-
9214592145-0458 SPRINGSPRING
-
9215392153-1876 BOLT,WP,6X35BOLT,WP,6X35
-
9220092200-0045 WASHER,13.4X25X1.0WASHER,13.4X25X1.0
-
92200A92200-0245 WASHER,25X41X5.5WASHER,25X41X5.5
-
92200B92200-0479 WASHER,13.4X25X1.5WASHER,13.4X25X1.5
