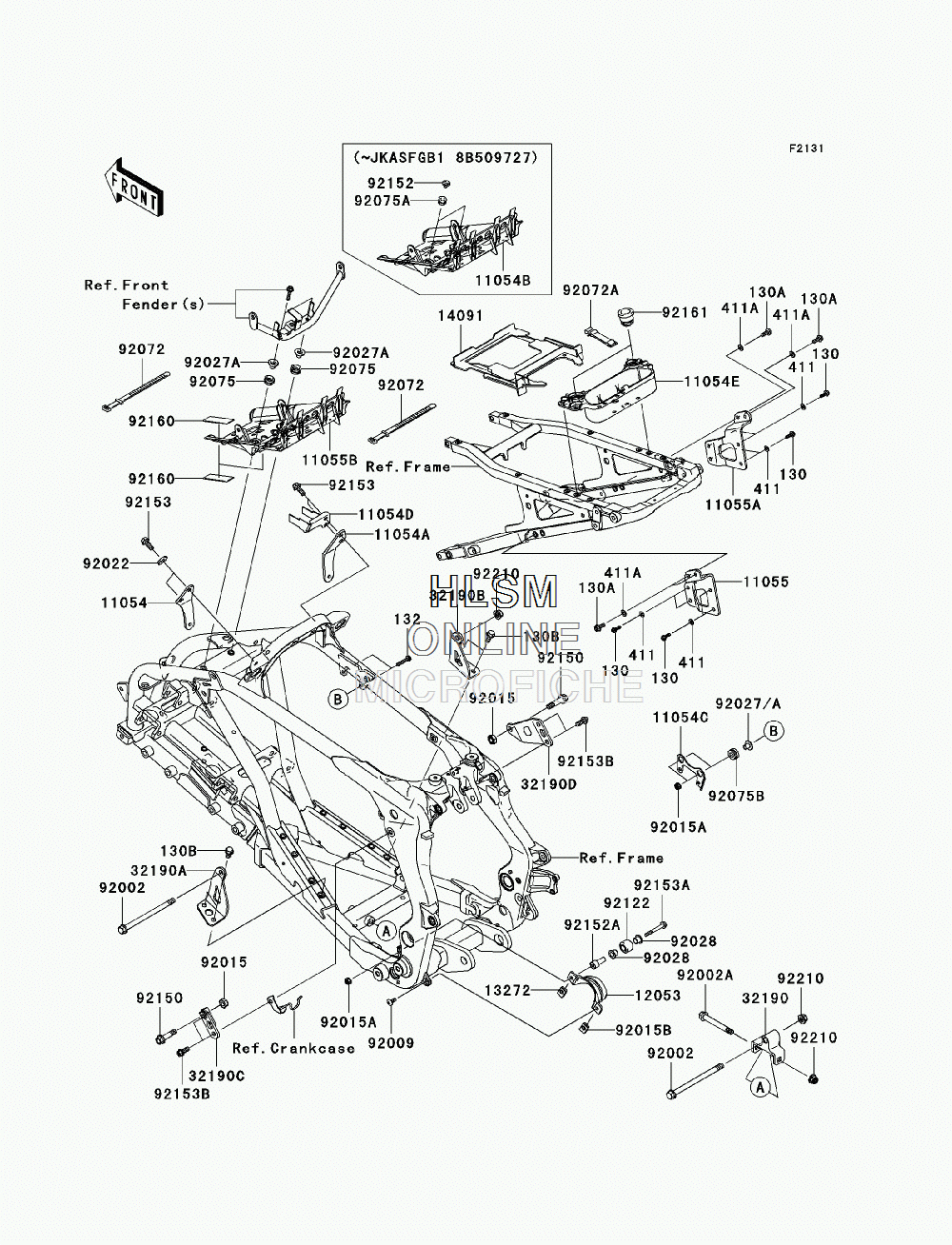

FRAME FITTINGS для Kawasaki KFX450R (KSF450B8FA) - 2008 года выпуска
-
№АртикулНазвание
-
1105411054-0279 BRACKET,PAD,UPP, LEFT HANDBRACKET,PAD,UPP, LEFT HAND
-
11054A11054-0280 BRACKET,PAD,UPP, RIGHT HANDBRACKET,PAD,UPP, RIGHT HAND
-
11054B11054-1710 BRACKET,ELECTRIC (UP TO JKASFGB1 8B509727)BRACKET,ELECTRIC (UP TO JKASFGB1 8B509727)
-
11054C11054-1805 BRACKET,IGNITION COILBRACKET,IGNITION COIL
-
11054D11054-1819 BRACKETBRACKET
-
11054E11054-1881 BRACKET,TOOL CASEBRACKET,TOOL CASE
-
1105511055-0070 BRACKET,AIR CLEANER BOX, LEFT HANDBRACKET,AIR CLEANER BOX, LEFT HAND
-
11055A11055-0071 BRACKET,AIR CLEANER BOX, RIGHT HANDBRACKET,AIR CLEANER BOX, RIGHT HAND
-
11055B11055-0480 BRACKET,ELECTRIC (JKASFGB1 8B509728 AND ABOVE)BRACKET,ELECTRIC (JKASFGB1 8B509728 AND ABOVE)
-
1205312053-0077 GUIDE-CHAINGUIDE-CHAIN
-
1327213272-0080 PLATE,CHAIN GUIDEPLATE,CHAIN GUIDE
-
1409114091-0744 COVER,AIR CLEANERCOVER,AIR CLEANER
-
3219032190-0281 BRACKET-ENGINEBRACKET-ENGINE
-
32190A32190-0296 BRACKET-ENGINE, FRONT,LWR, LEFT HANDBRACKET-ENGINE, FRONT,LWR, LEFT HAND
-
32190B32190-0297 BRACKET-ENGINE, FRONT,LWR, RIGHT HANDBRACKET-ENGINE, FRONT,LWR, RIGHT HAND
-
32190C32190-0298 BRACKET-ENGINE,HEAD, LEFT HANDBRACKET-ENGINE,HEAD, LEFT HAND
-
32190D32190-0299 BRACKET-ENGINE,HEAD, RIGHT HANDBRACKET-ENGINE,HEAD, RIGHT HAND
-
9200292002-1348 BOLT,10X145BOLT,10X145
-
92002A92002-1576 BOLT,ARM,10MMBOLT,ARM,10MM
-
9200992009-3830 SCREW,6X15SCREW,6X15
-
9201592015-1189 NUT,LOCK,10MM,BLACKNUT,LOCK,10MM,BLACK
-
92015A92015-1339 NUT,LOCK,FLANGED,6MMNUT,LOCK,FLANGED,6MM
-
92015B92015-1602 NUT,6MMNUT,6MM
-
9202292022-3744 WASHER,8.4X23X2.5WASHER,8.4X23X2.5
-
9202792027-1651 COLLAR,FLANGED,L=12.1,BLACK (UP TO JKASFGB1 8B509727)COLLAR,FLANGED,L=12.1,BLACK (UP TO JKASFGB1 8B509727)
-
92027A92027-1651 COLLAR,FLANGED,L=12.1,BLACK (JKASFGB1 8B509728 AND ABOVE)COLLAR,FLANGED,L=12.1,BLACK (JKASFGB1 8B509728 AND ABOVE)
-
9202892028-1507 BUSHINGBUSHING
-
9207292072-056 BAND,L=186BAND,L=186
-
92072A92072-1085 BANDBAND
-
9207592075-1634 DAMPER (JKASFGB1 8B509728 AND ABOVE)DAMPER (JKASFGB1 8B509728 AND ABOVE)
-
92075A92075-1912 DAMPER (UP TO JKASFGB1 8B509727)DAMPER (UP TO JKASFGB1 8B509727)
-
92075B92075-277 DAMPERDAMPER
-
9212292122-0020 ROLLERROLLER
-
130130BA0516 BOLT-FLANGED,5X16BOLT-FLANGED,5X16
-
130A130BA0616 BOLT-FLANGED,6X16BOLT-FLANGED,6X16
-
130B130CD0818 BOLT-FLANGED,8X18BOLT-FLANGED,8X18
-
132132BA0630 BOLT-FLANGED-SMALL,6X30BOLT-FLANGED-SMALL,6X30
-
411411AA0500 WASHER-PLAIN,5MMWASHER-PLAIN,5MM
-
411A411AA0600 WASHER-PLAIN,6.5X13X1WASHER-PLAIN,6.5X13X1
-
9215092150-1711 BOLT,FLANGED,10X40BOLT,FLANGED,10X40
-
9215292152-0237 COLLAR (UP TO JKASFGB1 8B509727)COLLAR (UP TO JKASFGB1 8B509727)
-
92152A92152-0585 COLLARCOLLAR
-
9215392153-0892 BOLT,8X20BOLT,8X20
-
92153A92153-0925 BOLT,6X50,WHITEBOLT,6X50,WHITE
-
92153B92153-0995 BOLT,FLANGED,8X20BOLT,FLANGED,8X20
-
9216092160-1075 DAMPERDAMPER
-
9216192161-0048 DAMPERDAMPER
-
9221092210-1080 NUT,LOCK,FLANGED,10MMNUT,LOCK,FLANGED,10MM
