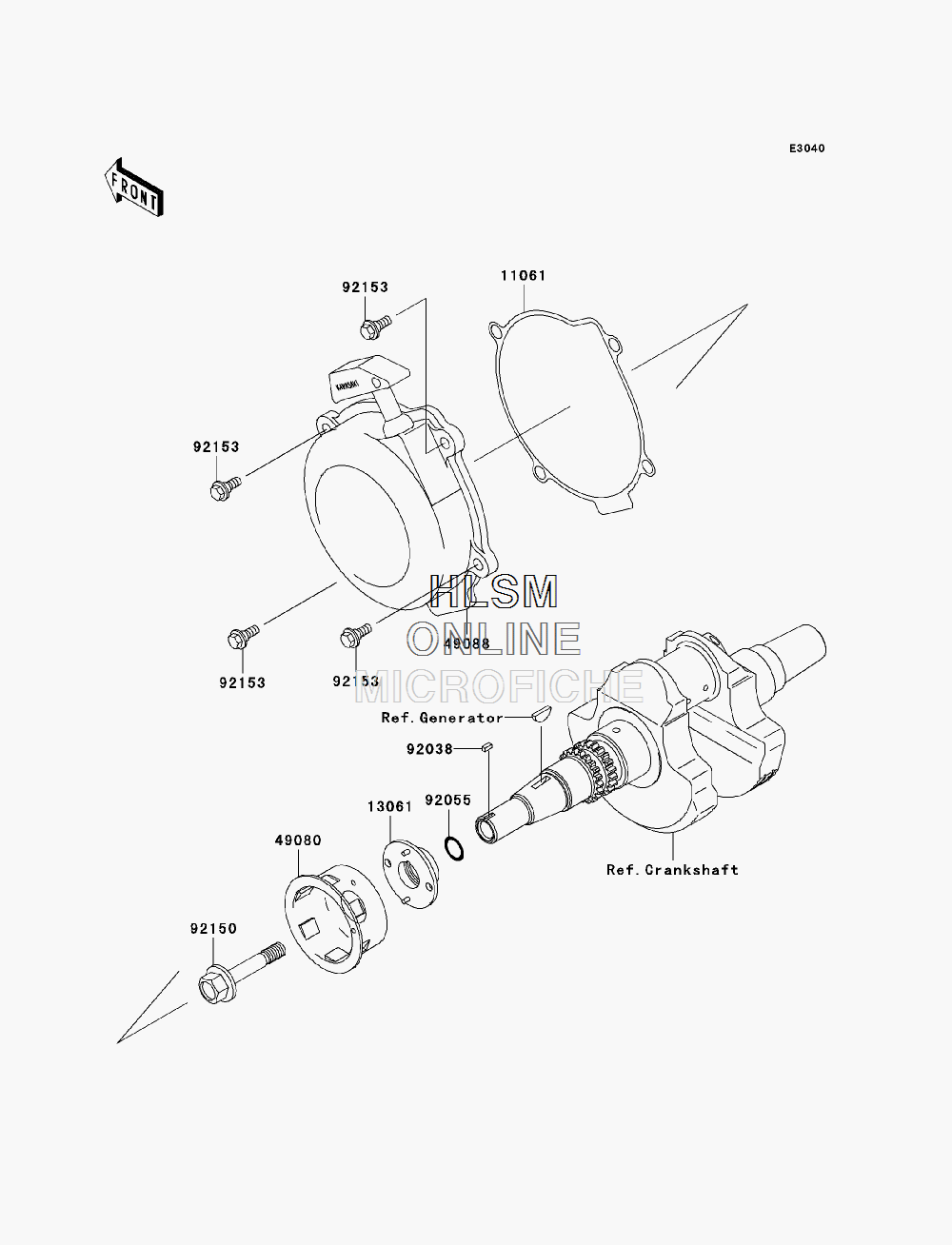

RECOIL STARTER (UP TO VF650AE640351) для Kawasaki BRUTE FORCE 650 4X4I HARDWOODS GREEN HD (KVF650G9F) - 2009 года выпуска
-
№АртикулНазвание
-
11061-1153 GASKETGASKET
-
1306113061-1873 BOSSBOSS
-
4908049080-1061 PULLEY-STARTINGPULLEY-STARTING
-
4908849088-1058 STARTER-RECOILSTARTER-RECOIL
-
9203892038-1051 KEY,SUNKKEY,SUNK
-
9205592055-1215 RING-O,19.8X2.2RING-O,19.8X2.2
-
9215092150-1987 BOLT,12X65BOLT,12X65
-
9215392153-7007 BOLT,FLANGED,6X16BOLT,FLANGED,6X16
