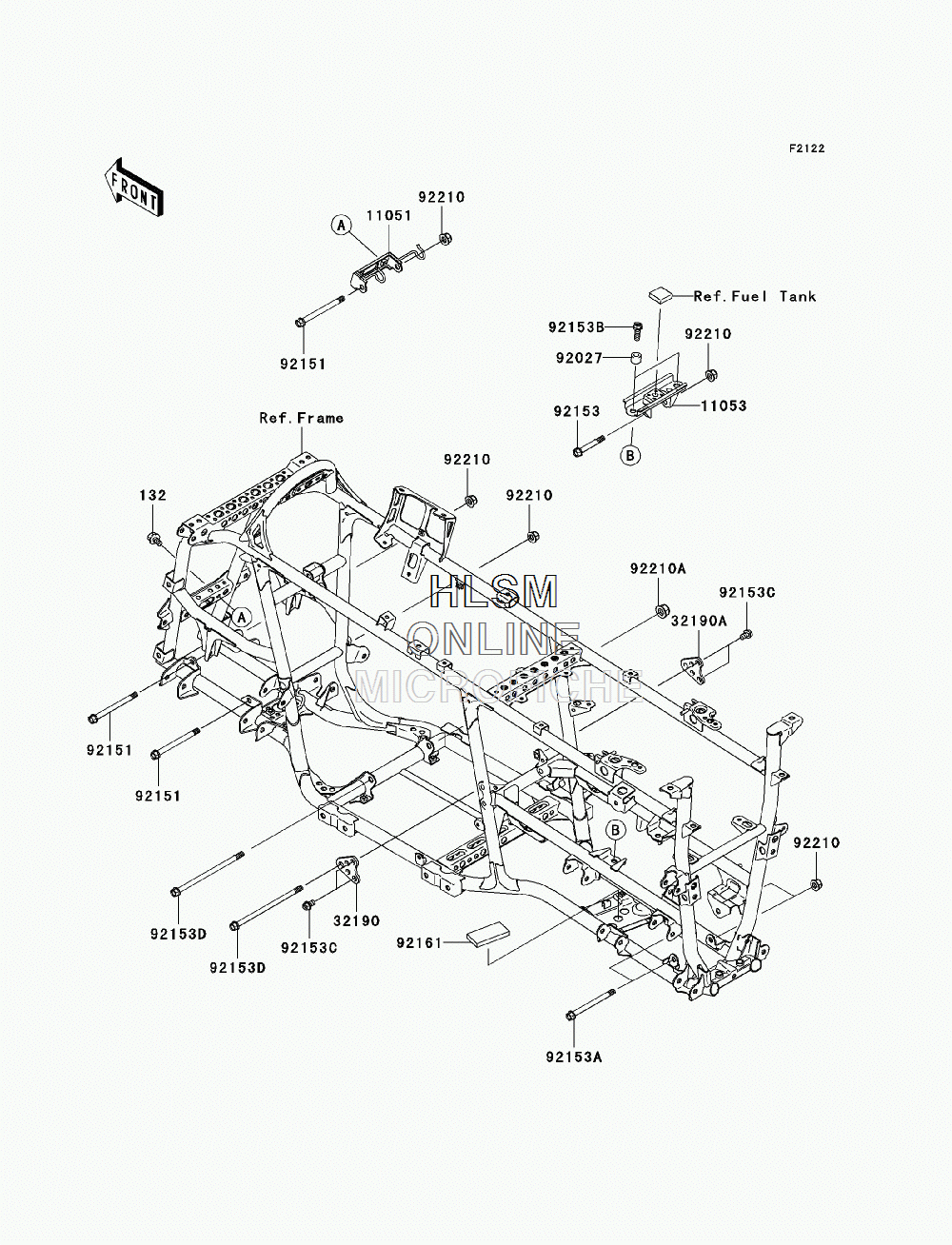

ENGINE MOUNT для Kawasaki BRUTE FORCE 650 4X4I (KVF650F9F) - 2009 года выпуска
-
№АртикулНазвание
-
132132BB0814 BOLT-FLANGED-SMALL,8X14BOLT-FLANGED-SMALL,8X14
-
1105111051-1929 BRACKET, FRONT DIFFBRACKET, FRONT DIFF
-
1105311053-1592 BRACKET, REAR DIFF,TOPBRACKET, REAR DIFF,TOP
-
3219032190-0059 BRACKET-ENGINE, REAR,UPP, LEFT HANDBRACKET-ENGINE, REAR,UPP, LEFT HAND
-
32190A32190-0060 BRACKET-ENGINE, REAR,UPP, RIGHT HANDBRACKET-ENGINE, REAR,UPP, RIGHT HAND
-
9202792027-1472 COLLAR, FRONT AXLE,L=14.5COLLAR, FRONT AXLE,L=14.5
-
9215192151-1914 BOLT,FLANGED,10X120BOLT,FLANGED,10X120
-
9215392153-0871 BOLT,FLANGED,10X70BOLT,FLANGED,10X70
-
92153A92153-0872 BOLT,FLANGED,10X120BOLT,FLANGED,10X120
-
92153B92153-0930 BOLT,FLANGED,10X30BOLT,FLANGED,10X30
-
92153C92153-0991 BOLT,FLANGED,10X16BOLT,FLANGED,10X16
-
92153D92153-1502 BOLT,FLANGED,12X190BOLT,FLANGED,12X190
-
9216192161-0215 DAMPERDAMPER
-
9221092210-1081 NUT,LOCK,FLANGED,10MMNUT,LOCK,FLANGED,10MM
-
92210A92210-1150 NUT,LOCK,FLANGED,12MMNUT,LOCK,FLANGED,12MM
