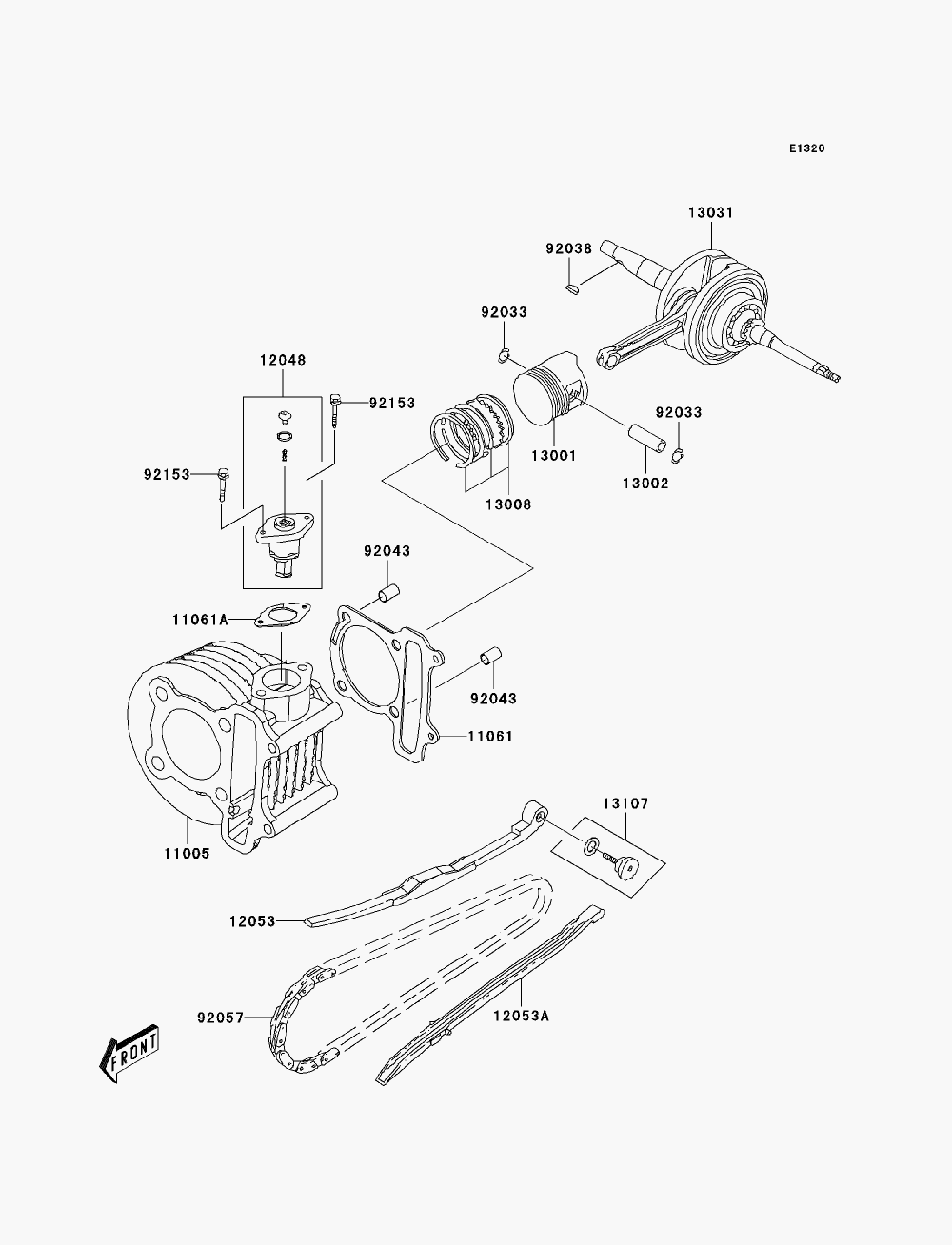

CRANKSHAFT/PISTON(S) для Kawasaki KFX 50 (KSF50B9S) - 2009 года выпуска
-
№АртикулНазвание
-
1100511005-Y001 CYLINDER-ENGINECYLINDER-ENGINE
-
1106111061-Y008 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
11061A11061-Y013 GASKETGASKET
-
1204812048-Y002 TENSIONER-ASSYTENSIONER-ASSY
-
1205312053-Y001 GUIDE-CHAIN, TENSIONERGUIDE-CHAIN, TENSIONER
-
12053A12053-Y003 GUIDE-CHAINGUIDE-CHAIN
-
1300113001-Y002 PISTON-ENGINEPISTON-ENGINE
-
1300213002-Y002 PIN-PISTONPIN-PISTON
-
1300813008-Y002 RING-SET-PISTONRING-SET-PISTON
-
1303113031-Y002 CRANKSHAFT-COMPCRANKSHAFT-COMP
-
1310713107-Y002 SHAFT, CHAIN GUIDESHAFT, CHAIN GUIDE
-
9203392033-Y001 RING-SNAPRING-SNAP
-
9203892038-Y001 KEY, WOODRUFFKEY, WOODRUFF
-
9204392043-Y006 PIN, 8X14PIN, 8X14
-
9205792057-Y001 CHAIN, CAMSHAFTCHAIN, CAMSHAFT
-
9215392153-Y048 BOLT, FLANGE, 6X18BOLT, FLANGE, 6X18
