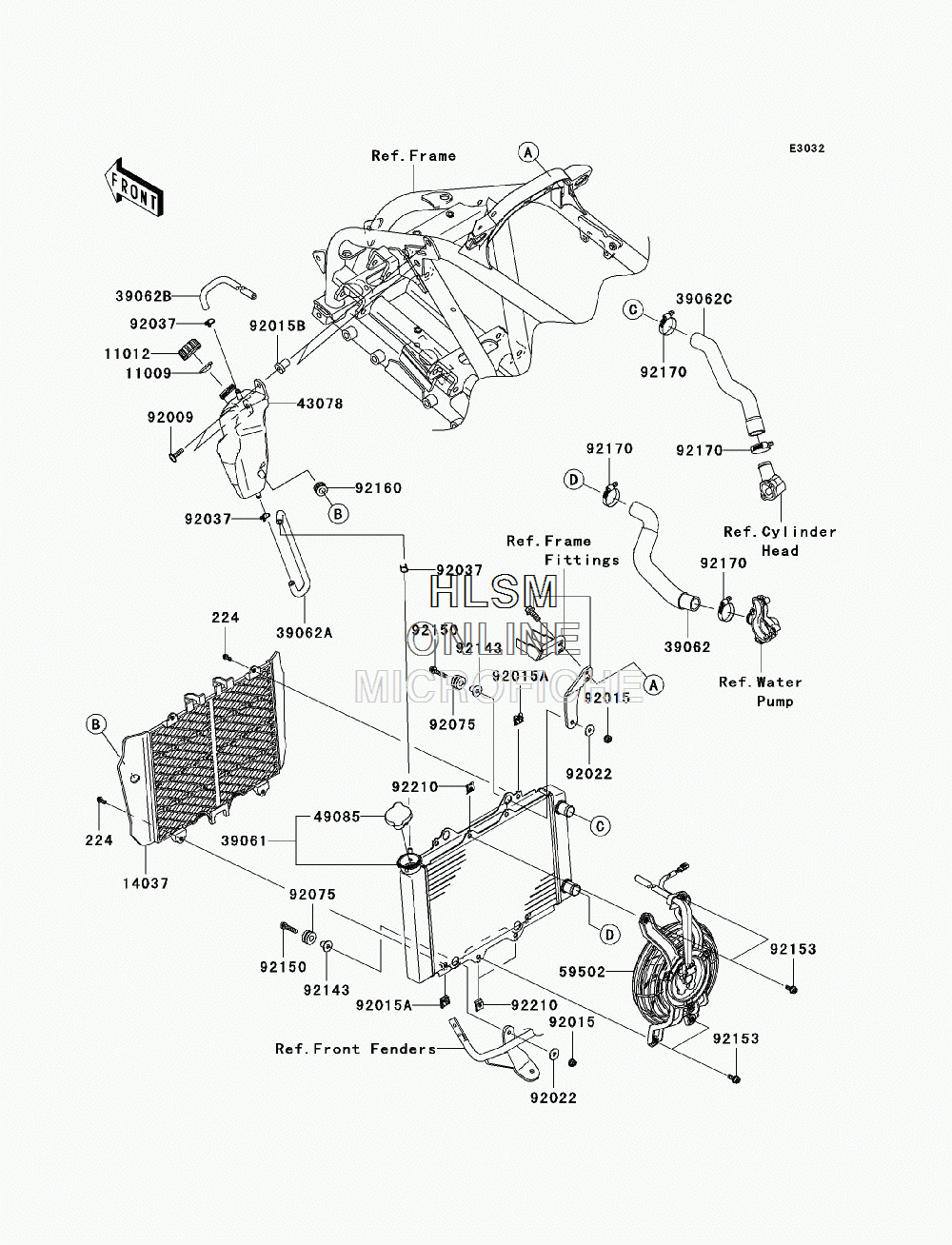

RADIATOR для Kawasaki KFX450R (KSF450B9F) - 2009 года выпуска
-
№АртикулНазвание
-
224224AB0614 SCREW-PAN-WP-CROS,6X14SCREW-PAN-WP-CROS,6X14
-
1100911009-1145 GASKET, RESERVOIR TANK CAPGASKET, RESERVOIR TANK CAP
-
1101211012-1084 CAPCAP
-
1403714037-0055 SCREEN,RADIATORSCREEN,RADIATOR
-
3906139061-0125 RADIATOR-ASSYRADIATOR-ASSY
-
3906239062-0146 HOSE-COOLING,W/P-RAD.HOSE-COOLING,W/P-RAD.
-
39062A39062-0201 HOSE-COOLING,RAD.-RESERVOIRHOSE-COOLING,RAD.-RESERVOIR
-
39062B39062-0202 HOSE-COOLING,BREATHERHOSE-COOLING,BREATHER
-
39062C39062-0215 HOSE-COOLING,RAD.-HEADHOSE-COOLING,RAD.-HEAD
-
4307843078-0043 RESERVOIRRESERVOIR
-
4908549085-0005 CAP-ASSY-PRESSURECAP-ASSY-PRESSURE
-
5950259502-0029 FAN-ASSYFAN-ASSY
-
9200992009-1465 SCREW,6X25SCREW,6X25
-
9201592015-1233 NUT,FLANGED,6MM,BLACKNUT,FLANGED,6MM,BLACK
-
92015A92015-1487 NUTNUT
-
92015B92015-1692 NUT,RUBBER,6MMNUT,RUBBER,6MM
-
9202292022-1346 WASHER,6.5X20X1.6,BLACKWASHER,6.5X20X1.6,BLACK
-
9203792037-147 CLAMP,TUBECLAMP,TUBE
-
9207592075-209 DAMPERDAMPER
-
9214392143-1353 COLLARCOLLAR
-
9215092150-1694 BOLT,6X30BOLT,6X30
-
9215392153-1806 BOLTBOLT
-
9216092160-1167 DAMPERDAMPER
-
9217092170-1497 CLAMPCLAMP
-
9221092210-0377 NUT,6MMNUT,6MM
