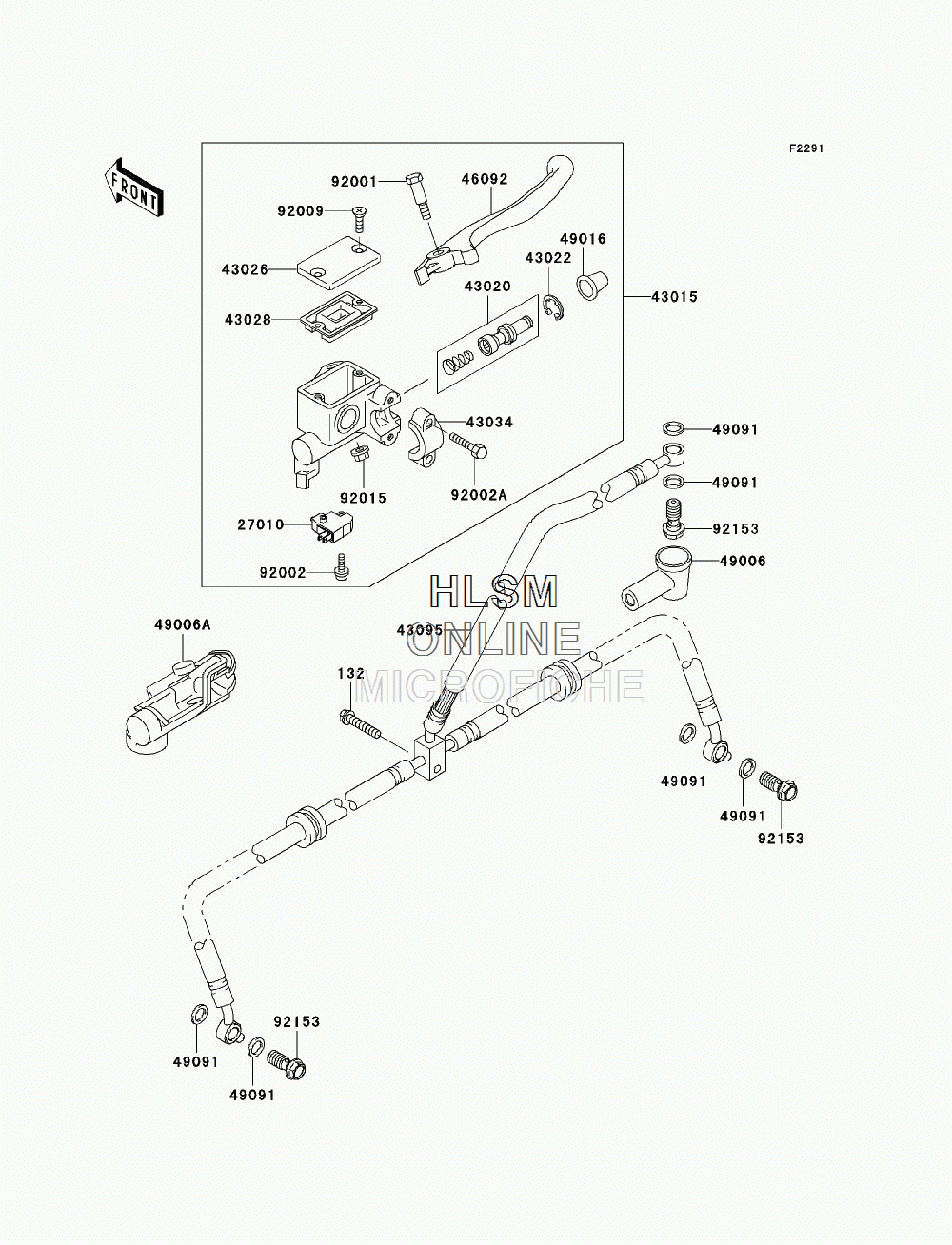

BRAKE - MASTER CYLINDER - FRONT для Kawasaki PRAIRIE 360 4X4 (KVF360A9F) - 2009 года выпуска
-
№АртикулНазвание
-
132132BB0630 BOLT-FLANGED-SMALL,6X30BOLT-FLANGED-SMALL,6X30
-
2701027010-0025 SWITCH,BRAKESWITCH,BRAKE
-
4301543015-1646 CYLINDER-ASSY-MASTER, FRONTCYLINDER-ASSY-MASTER, FRONT
-
4302043020-1056 PISTON-COMP-BRAKE, FRONTPISTON-COMP-BRAKE, FRONT
-
4302243022-1010 STOPPER-BRAKE,PISTONSTOPPER-BRAKE,PISTON
-
4302643026-1074 CAP-BRAKECAP-BRAKE
-
4302843028-1061 DIAPHRAGMDIAPHRAGM
-
4303443034-1016 HOLDER-BRAKE,MASTER CYLINDERHOLDER-BRAKE,MASTER CYLINDER
-
4309543095-7501 HOSE-BRAKE, FRONTHOSE-BRAKE, FRONT
-
4609246092-1208 LEVER-GRIP, FRONT BRAKELEVER-GRIP, FRONT BRAKE
-
4900649006-1040 BOOT,DUSTBOOT,DUST
-
49006A49006-1338 BOOTBOOT
-
4901649016-1044 COVER-SEAL,MASTER CYLINDERCOVER-SEAL,MASTER CYLINDER
-
4909149091-0001 WASHER-SEAL,10.1X14.5X1.5WASHER-SEAL,10.1X14.5X1.5
-
9200192001-1728 BOLT, FRONT BRAKE LEVERBOLT, FRONT BRAKE LEVER
-
9200292002-1323 BOLT,SCREW,4X12BOLT,SCREW,4X12
-
92002A92002-1894 BOLTBOLT
-
9200992009-1458 SCREW,4MMSCREW,4MM
-
9201592015-1233 NUT,FLANGED,6MM,BLACKNUT,FLANGED,6MM,BLACK
-
9215392153-0627 BOLT,OIL,L=23BOLT,OIL,L=23
