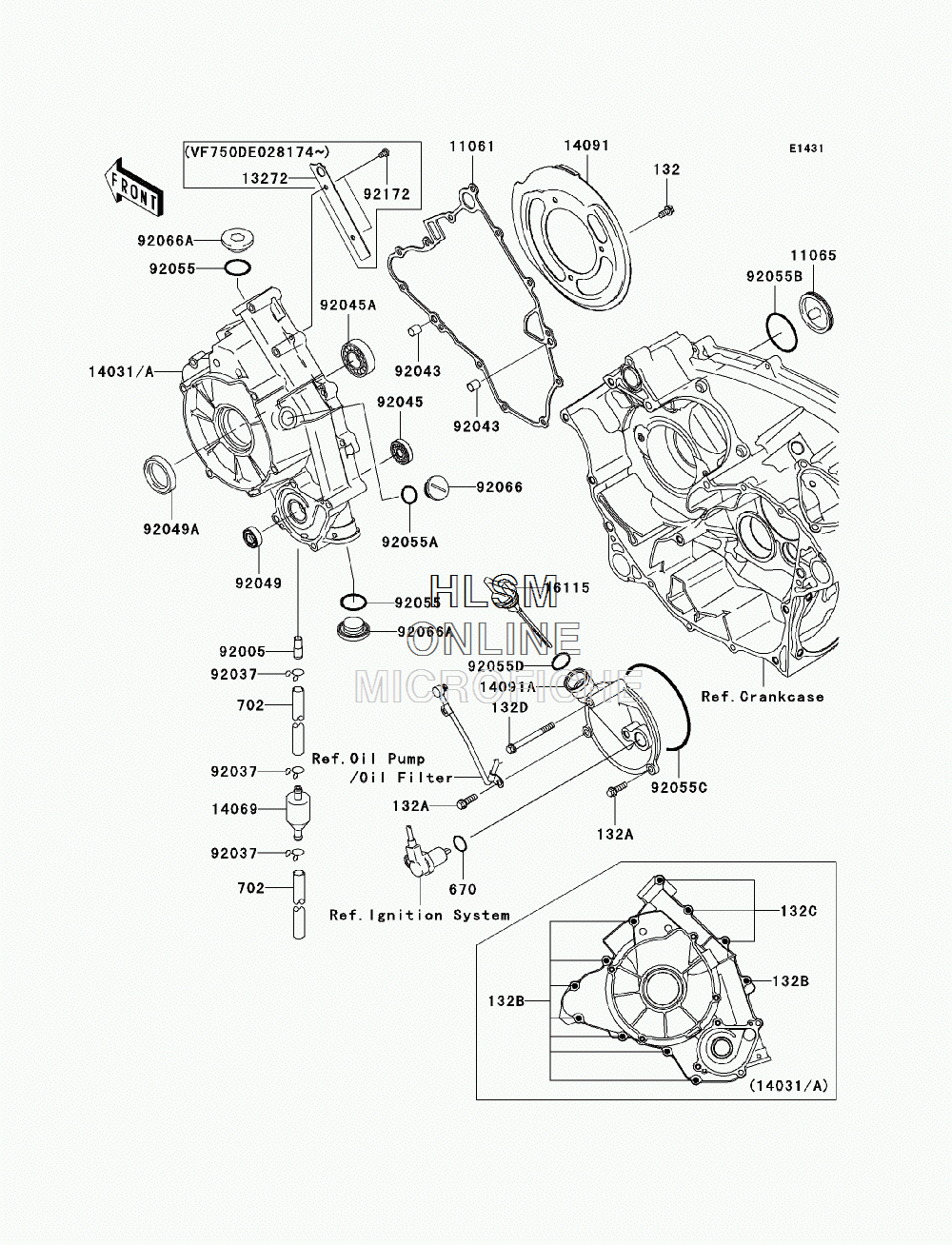

ENGINE COVER(S) для Kawasaki BRUTE FORCE 750 4X4I (KVF750DAF) - 2010 года выпуска
-
№АртикулНазвание
-
132132BD0612 BOLT-FLANGED-SMALL,6X12BOLT-FLANGED-SMALL,6X12
-
132A132BD0620 BOLT-FLANGED-SMALL,6X20BOLT-FLANGED-SMALL,6X20
-
132B132BD0630 BOLT-FLANGED-SMALL,6X30BOLT-FLANGED-SMALL,6X30
-
132C132BD0655 BOLT-FLANGED-SMALL,6X55BOLT-FLANGED-SMALL,6X55
-
132D132BD0665 BOLT-FLANGED-SMALL,6X65BOLT-FLANGED-SMALL,6X65
-
670670D2018 O RINGO RING
-
702702A07035 TUBE-RUBBER,7X10X35TUBE-RUBBER,7X10X35
-
1106111061-1119 GASKETGASKET
-
1106511065-1151 CAPCAP
-
1327213272-0707 PLATE (VF750DE028174 AND ABOVE)PLATE (VF750DE028174 AND ABOVE)
-
14031A14031-0112 COVER-GENERATORCOVER-GENERATOR
-
1406914069-1051 BREATHERBREATHER
-
1409114091-0309 COVER,BELT CONVERTERCOVER,BELT CONVERTER
-
14091A14091-1365 COVERCOVER
-
1611516115-1072 CAP-OIL FILLERCAP-OIL FILLER
-
9200592005-1369 FITTINGFITTING
-
9203792037-147 CLAMP,TUBECLAMP,TUBE
-
9204392043-1263 PIN,6.2X8X14PIN,6.2X8X14
-
9204592045-0084 BEARING-BALL,6901BEARING-BALL,6901
-
92045A92045-0086 BEARING-BALL,TMB004JR2CMBEARING-BALL,TMB004JR2CM
-
9204992049-1228 SEAL-OIL,SC 12X22X5SEAL-OIL,SC 12X22X5
-
92049A92049-1576 SEAL-OIL,HTC 28X45X7SEAL-OIL,HTC 28X45X7
-
9205592055-1136 RING-O,25.7X2.4RING-O,25.7X2.4
-
92055A92055-1146 RING-O,20X2RING-O,20X2
-
92055B92055-1279 RING-O,44.7X2.4RING-O,44.7X2.4
-
92055C92055-1632 RING-O,99.5X2.0RING-O,99.5X2.0
-
92055D92055-2185 RING-O,20X3RING-O,20X3
-
9206692066-0011 PLUG,COVERPLUG,COVER
-
92066A92066-0012 PLUG,25X8PLUG,25X8
-
9217292172-0119 SCREW,5X8 (VF750DE028174 AND ABOVE)SCREW,5X8 (VF750DE028174 AND ABOVE)
