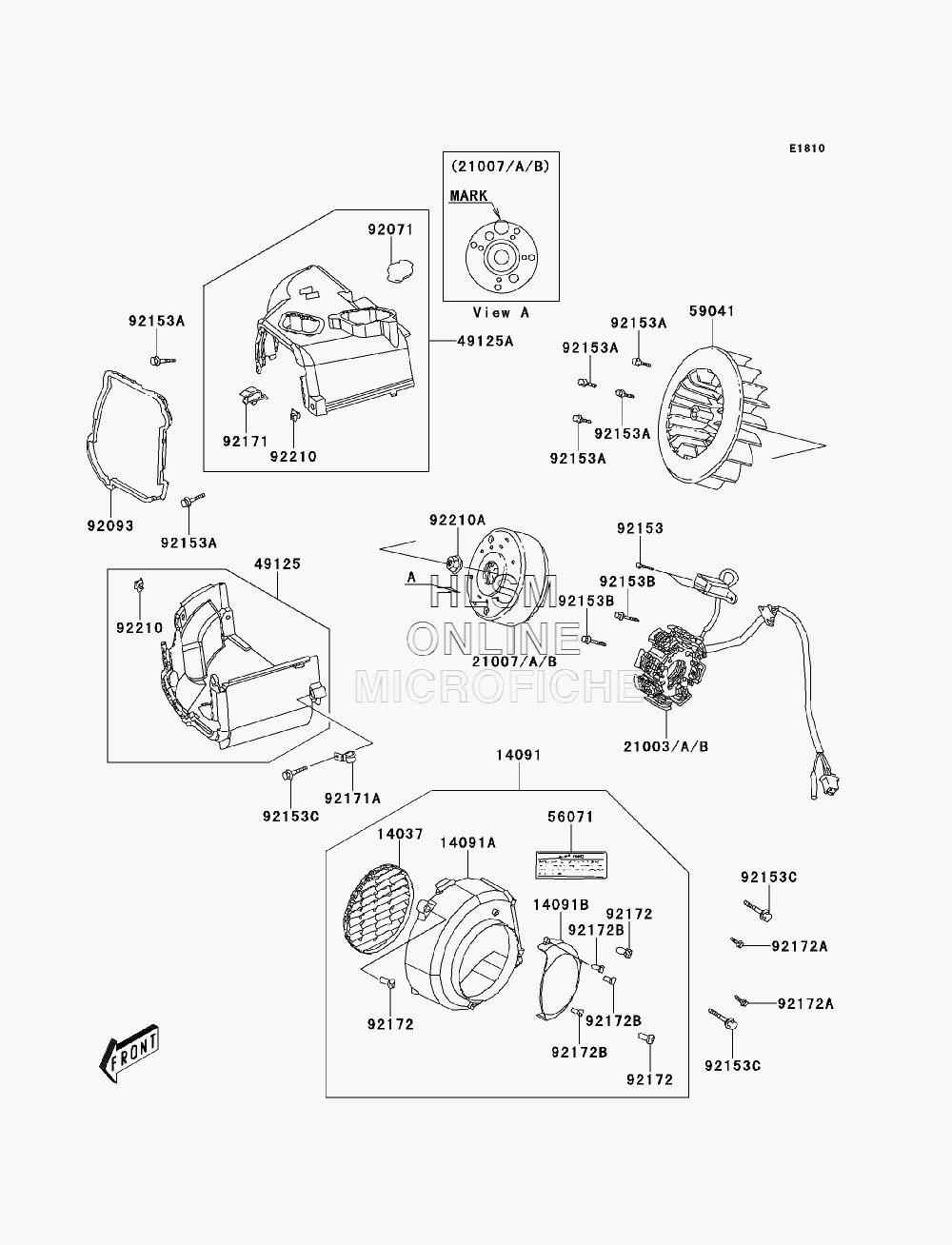

GENERATOR для Kawasaki KFX 90 (KSF90AAF) - 2010 года выпуска
-
№АртикулНазвание
-
1403714037-Y002 SCREENSCREEN
-
1409114091-Y003 COVER, FANCOVER, FAN
-
14091A14091-Y011 COVER, FANCOVER, FAN
-
14091B14091-Y012 COVERCOVER
-
2100321003-Y002 STATOR, D402STATOR, D402
-
21003A21003-Y005 STATOR, D406STATOR, D406
-
21003B21003-Y006 STATOR, D414STATOR, D414
-
2100721007-Y001 ROTOR, D402ROTOR, D402
-
21007A21007-Y005 ROTOR, D406ROTOR, D406
-
21007B21007-Y006 ROTOR, D414ROTOR, D414
-
4912549125-Y002 SHROUD, LWRSHROUD, LWR
-
49125A49125-Y004 SHROUD, UPPSHROUD, UPP
-
5607156071-Y002 LABEL-WARNINGLABEL-WARNING
-
5904159041-Y001 FANFAN
-
9207192071-Y001 GROMMETGROMMET
-
9209392093-Y004 SEAL, SHROUDSEAL, SHROUD
-
9215392153-Y015 BOLT, 5X12BOLT, 5X12
-
92153A92153-Y047 BOLT, FLANGE, 6X16BOLT, FLANGE, 6X16
-
92153B92153-Y049 BOLT, FLANGE, 6X20BOLT, FLANGE, 6X20
-
92153C92153-Y051 BOLT, FLANGE, 6X25BOLT, FLANGE, 6X25
-
9217192171-Y001 CLAMPCLAMP
-
92171A92171-Y002 CLAMPCLAMP
-
9217292172-Y019 SCREW, 4X12SCREW, 4X12
-
92172A92172-Y021 SCREW, 5X16SCREW, 5X16
-
92172B92172-Y024 SCREW, 4X10SCREW, 4X10
-
9221092210-Y011 NUT, 6MMNUT, 6MM
-
92210A92210-Y029 NUT, 10MMNUT, 10MM
