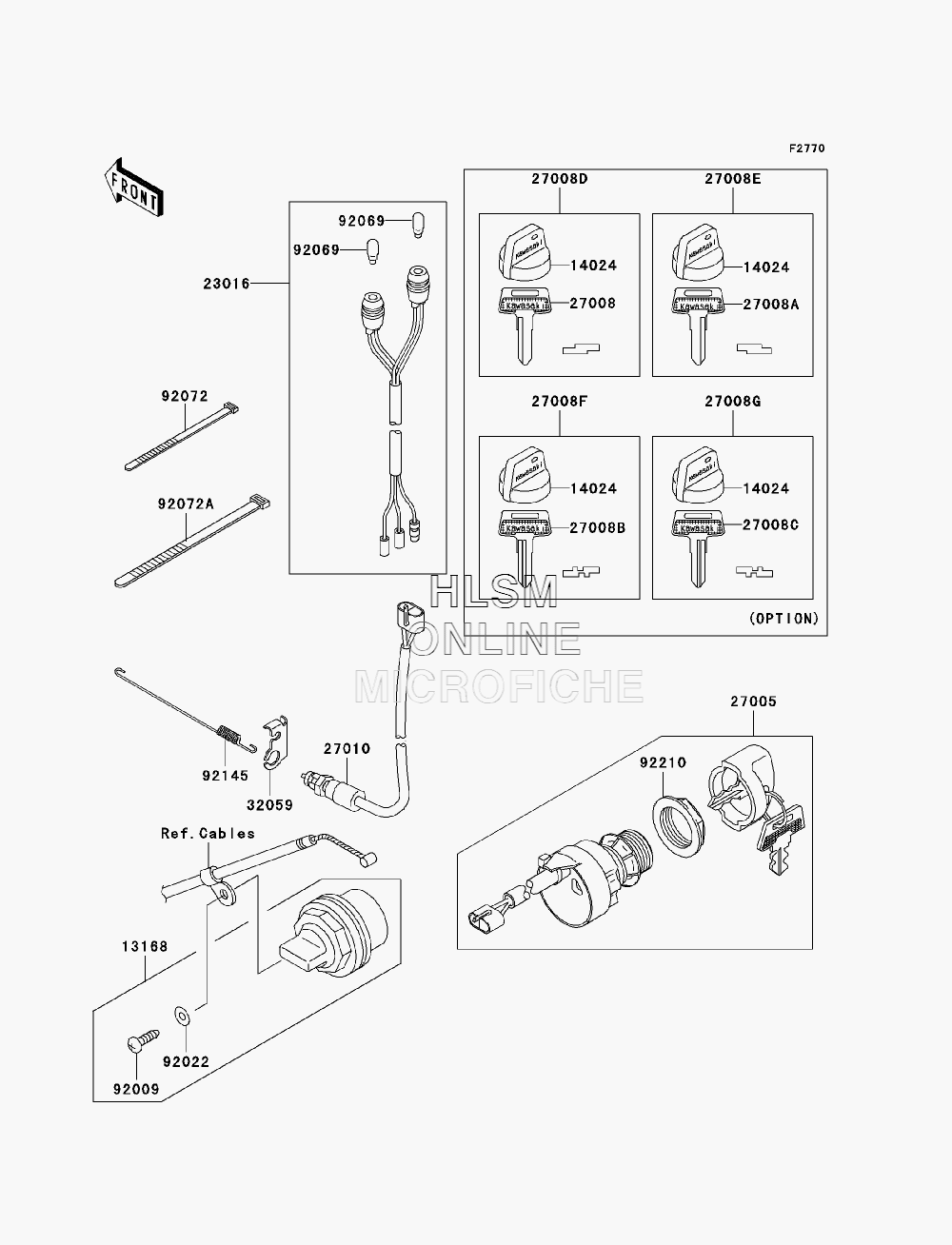

IGNITION SWITCH для Kawasaki BAYOU 250 (KLF250ABF) - 2011 года выпуска
-
№АртикулНазвание
-
1316813168-1760 LEVER, REVERSE LOCKLEVER, REVERSE LOCK
-
1402414024-1551 COVER, KEY (OPTION)COVER, KEY (OPTION)
-
2301623016-1083 LAMP - ASSY, NEUTRAL & REVERSELAMP - ASSY, NEUTRAL & REVERSE
-
2700527005-0002 SWITCH - ASSY - IGNITIONSWITCH - ASSY - IGNITION
-
2700827008-1041 KEY - LOCK, BLANK (OPTION)KEY - LOCK, BLANK (OPTION)
-
27008A27008-1042 KEY - LOCK, BLANK (OPTION)KEY - LOCK, BLANK (OPTION)
-
27008B27008-1043 KEY - LOCK, BLANK (OPTION)KEY - LOCK, BLANK (OPTION)
-
27008C27008-1044 KEY - LOCK, BLANK (OPTION)KEY - LOCK, BLANK (OPTION)
-
27008D27008-1132 KEY - LOCK, BLANK, W/COVER (OPTION)KEY - LOCK, BLANK, W/COVER (OPTION)
-
27008E27008-1133 KEY - LOCK, BLANK, W/COVER (OPTION)KEY - LOCK, BLANK, W/COVER (OPTION)
-
27008F27008-1134 KEY - LOCK, BLANK, W/COVER (OPTION)KEY - LOCK, BLANK, W/COVER (OPTION)
-
27008G27008-1135 KEY - LOCK, BLANK, W/COVER (OPTION)KEY - LOCK, BLANK, W/COVER (OPTION)
-
2701027010-0008 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
3205932059-1106 BRACKET - SWITCH, REAR BRAKEBRACKET - SWITCH, REAR BRAKE
-
9200992009-1533 SCREW, TAPPING, 4X12SCREW, TAPPING, 4X12
-
9202292022-1947 WASHER, PLAIN, 4MMWASHER, PLAIN, 4MM
-
9206992069-1020 BULB, 12V 3W, T7BULB, 12V 3W, T7
-
9207292072-031 BAND, L=149BAND, L=149
-
92072A92072-1239 BAND, L=188BAND, L=188
-
9214592145-0061 SPRING, REAR BRAKE SWITCHSPRING, REAR BRAKE SWITCH
-
9221092210-1109 NUT, IGNITION SWITCHNUT, IGNITION SWITCH
