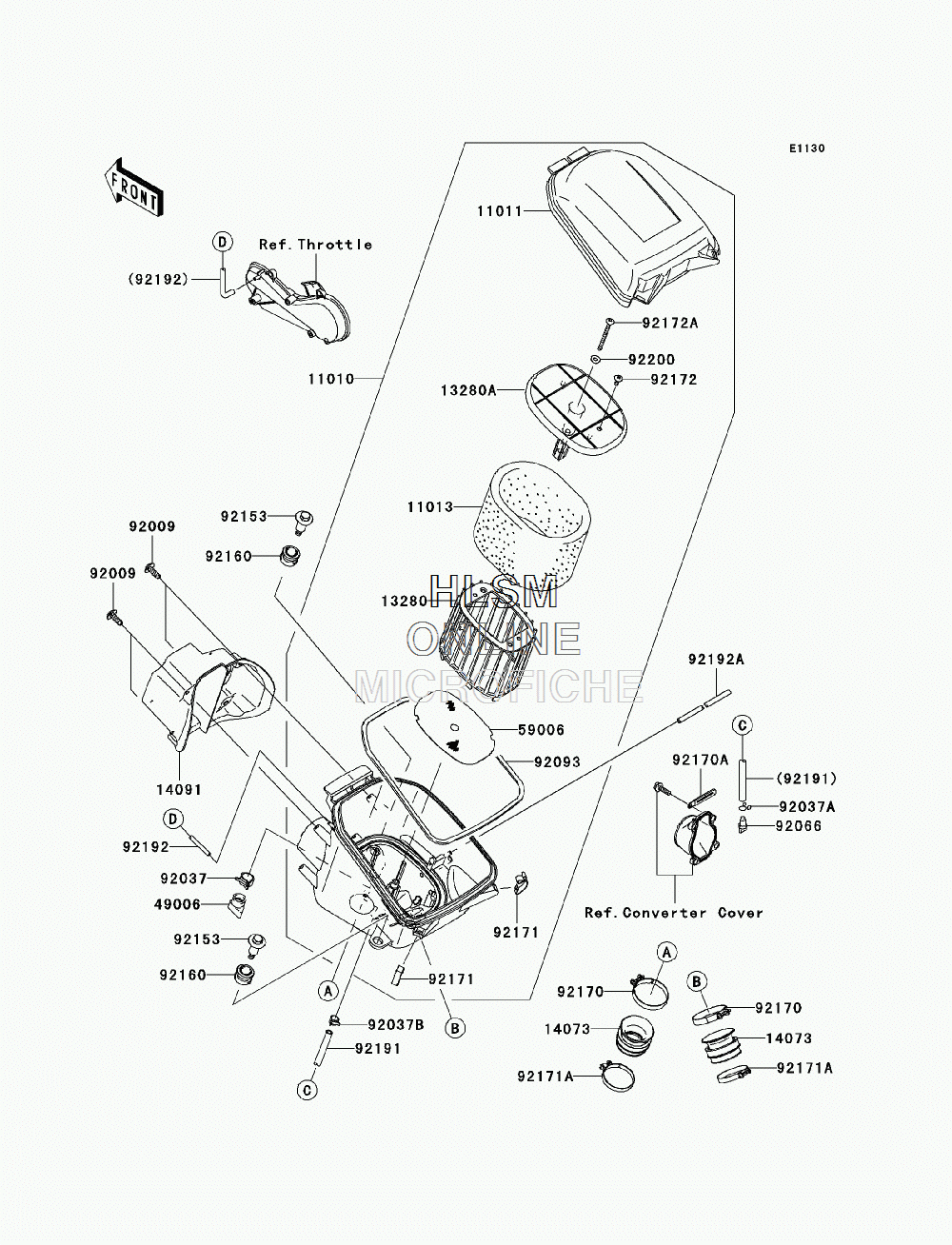

AIR CLEANER для Kawasaki BRUTE FORCE 750 4X4I (KVF750DBF) - 2011 года выпуска
-
№АртикулНазвание
-
1101011010-0152-6Z FILTER-ASSY-AIR,F.BLACKFILTER-ASSY-AIR,F.BLACK
-
1101111011-0017-6Z CASE-AIR FILTER,UPP,F.BLACKCASE-AIR FILTER,UPP,F.BLACK
-
1101311013-0021 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
1328013280-0232 HOLDERHOLDER
-
13280A13280-0233 HOLDERHOLDER
-
1407314073-0160 DUCTDUCT
-
1409114091-0164 COVER, FRONTCOVER, FRONT
-
4900649006-1292 BOOTBOOT
-
5900659006-0015 AREARESTER-FLAMEAREARESTER-FLAME
-
9200992009-1113 SCREW,TAPPINGSCREW,TAPPING
-
9203792037-1460 CLAMP,HOSE CLIPCLAMP,HOSE CLIP
-
92037A92037-147 CLAMP,TUBECLAMP,TUBE
-
92037B92037-1505 CLAMP,TUBECLAMP,TUBE
-
9206692066-1211 PLUG,DRAINPLUG,DRAIN
-
9209392093-0083 SEALSEAL
-
9215392153-1052 BOLT,FLANGED,6X28.7BOLT,FLANGED,6X28.7
-
9216092160-1594 DAMPERDAMPER
-
9217092170-1448 CLAMPCLAMP
-
92170A92170-1514 CLAMPCLAMP
-
9217192171-0225 CLAMPCLAMP
-
92171A92171-0722 CLAMPCLAMP
-
9217292172-0297 SCREWSCREW
-
92172A92172-0300 SCREWSCREW
-
9219192191-1531 TUBE,7X11X470TUBE,7X11X470
-
9219292192-0448 TUBETUBE
-
92192A92192-0449 TUBETUBE
-
9220092200-0364 WASHERWASHER
