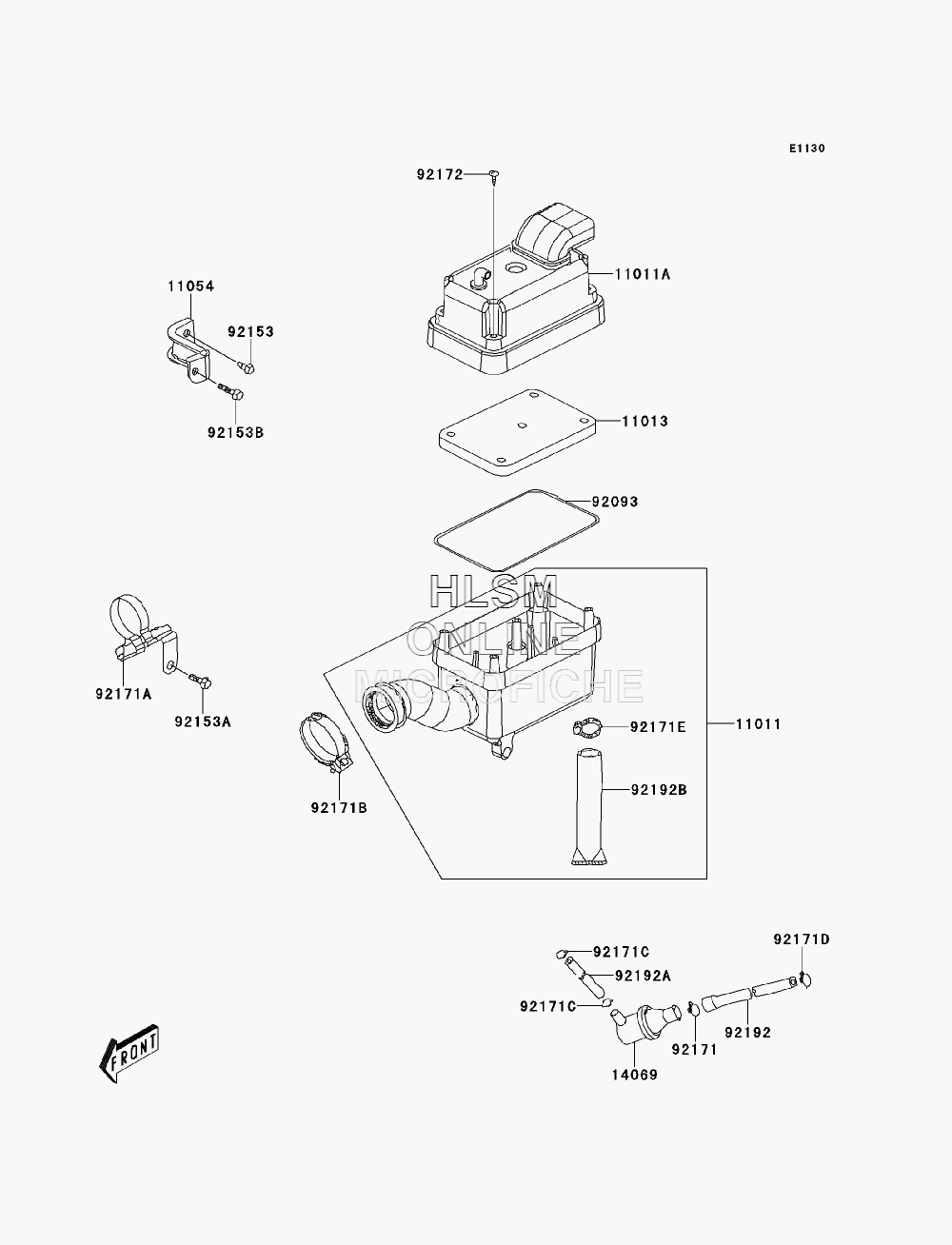

AIR CLEANER для Kawasaki KFX 90 (KSF90ABF) - 2011 года выпуска
-
№АртикулНазвание
-
1101111011-Y001 CASE-AIR FILTER, LOWERCASE-AIR FILTER, LOWER
-
11011A11011-Y002 CASE-AIR FILTER, UPPERCASE-AIR FILTER, UPPER
-
1101311013-Y001 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
1105411054-Y002 BRACKETBRACKET
-
1406914069-Y001 BREATHERBREATHER
-
9209392093-Y002 SEAL, AIR FILTERSEAL, AIR FILTER
-
9215392153-Y024 BOLT, FLANGE, 6X12BOLT, FLANGE, 6X12
-
92153A92153-Y026 BOLT, FLANGE, 6X22BOLT, FLANGE, 6X22
-
92153B92153-Y028 BOLT, FLANGE, 6X30BOLT, FLANGE, 6X30
-
9217192171-Y003 CLAMPCLAMP
-
92171A92171-Y007 CLAMPCLAMP
-
92171B92171-Y008 CLAMPCLAMP
-
92171C92171-Y012 CLAMPCLAMP
-
92171D92171-Y014 CLAMPCLAMP
-
92171E92171-Y015 CLAMPCLAMP
-
9217292172-Y018 SCREW, 5X20SCREW, 5X20
-
9219292192-Y001 TUBETUBE
-
92192A92192-Y002 TUBETUBE
-
92192B92192-Y004 TUBE, DRAINTUBE, DRAIN
