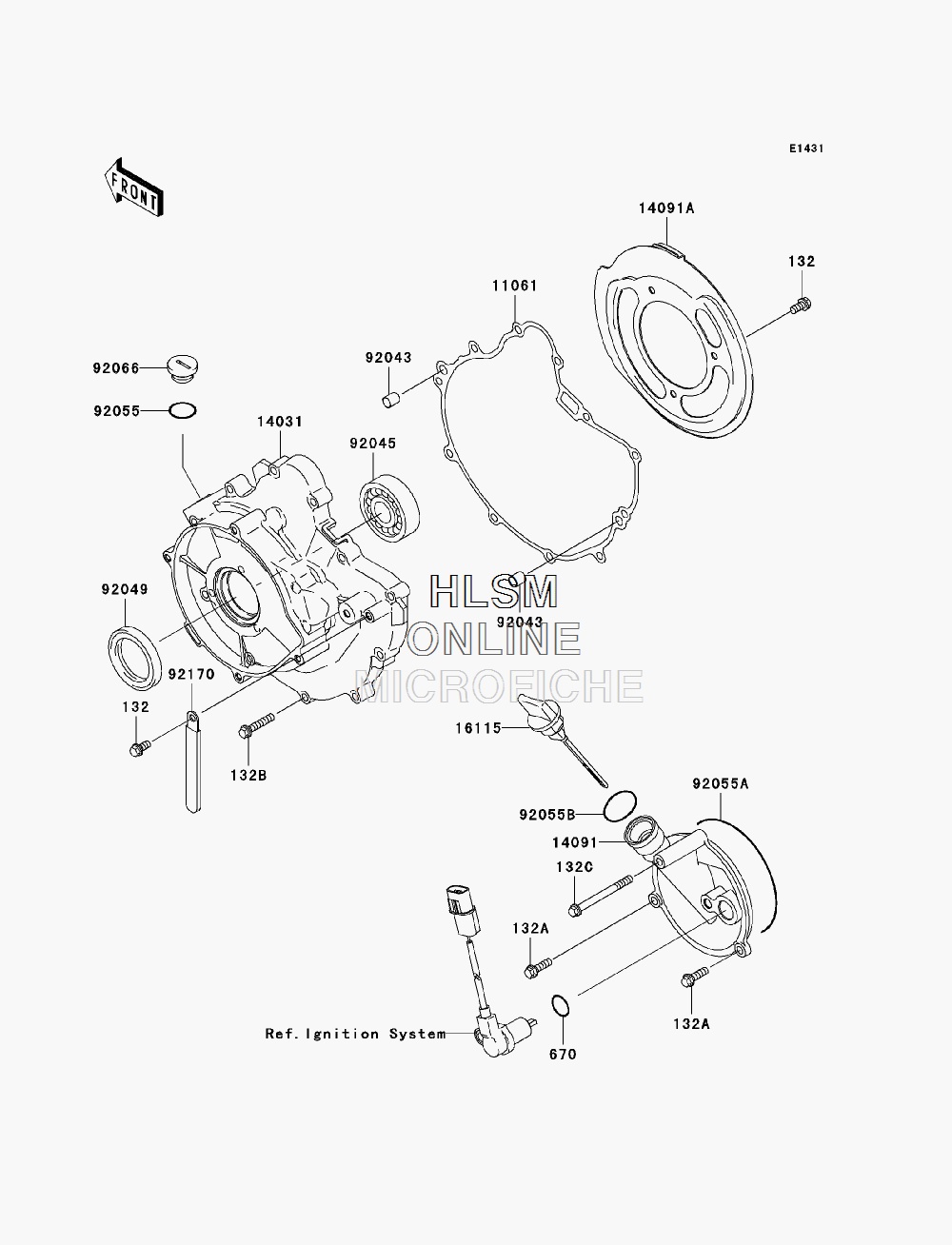

ENGINE COVER(S) для Kawasaki PRAIRIE 360 4X4 (KVF360ABF) - 2011 года выпуска
-
№АртикулНазвание
-
132132BD0612 BOLT-FLANGED-SMALL,6X12BOLT-FLANGED-SMALL,6X12
-
132A132BD0620 BOLT-FLANGED-SMALL,6X20BOLT-FLANGED-SMALL,6X20
-
132B132BD0630 BOLT-FLANGED-SMALL,6X30BOLT-FLANGED-SMALL,6X30
-
132C132BD0665 BOLT-FLANGED-SMALL,6X65BOLT-FLANGED-SMALL,6X65
-
670670D2018 O RINGO RING
-
1106111061-1086 GASKET,GENERATOR COVERGASKET,GENERATOR COVER
-
1403114031-1389 COVER-GENERATORCOVER-GENERATOR
-
1409114091-1365 COVERCOVER
-
14091A14091-1571 COVER,BELT CONVERTERCOVER,BELT CONVERTER
-
1611516115-1072 CAP-OIL FILLERCAP-OIL FILLER
-
9204392043-1263 PIN,6.2X8X14PIN,6.2X8X14
-
9204592045-0076 BEARING-BALL,#6004BEARING-BALL,#6004
-
9204992049-1576 SEAL-OIL,HTC 28X45X7SEAL-OIL,HTC 28X45X7
-
9205592055-1146 RING-O,20X2RING-O,20X2
-
92055A92055-1632 RING-O,99.5X2.0RING-O,99.5X2.0
-
92055B92055-2185 RING-O,20X3RING-O,20X3
-
9206692066-1163 PLUG,COVERPLUG,COVER
-
9217092170-1925 CLAMPCLAMP
