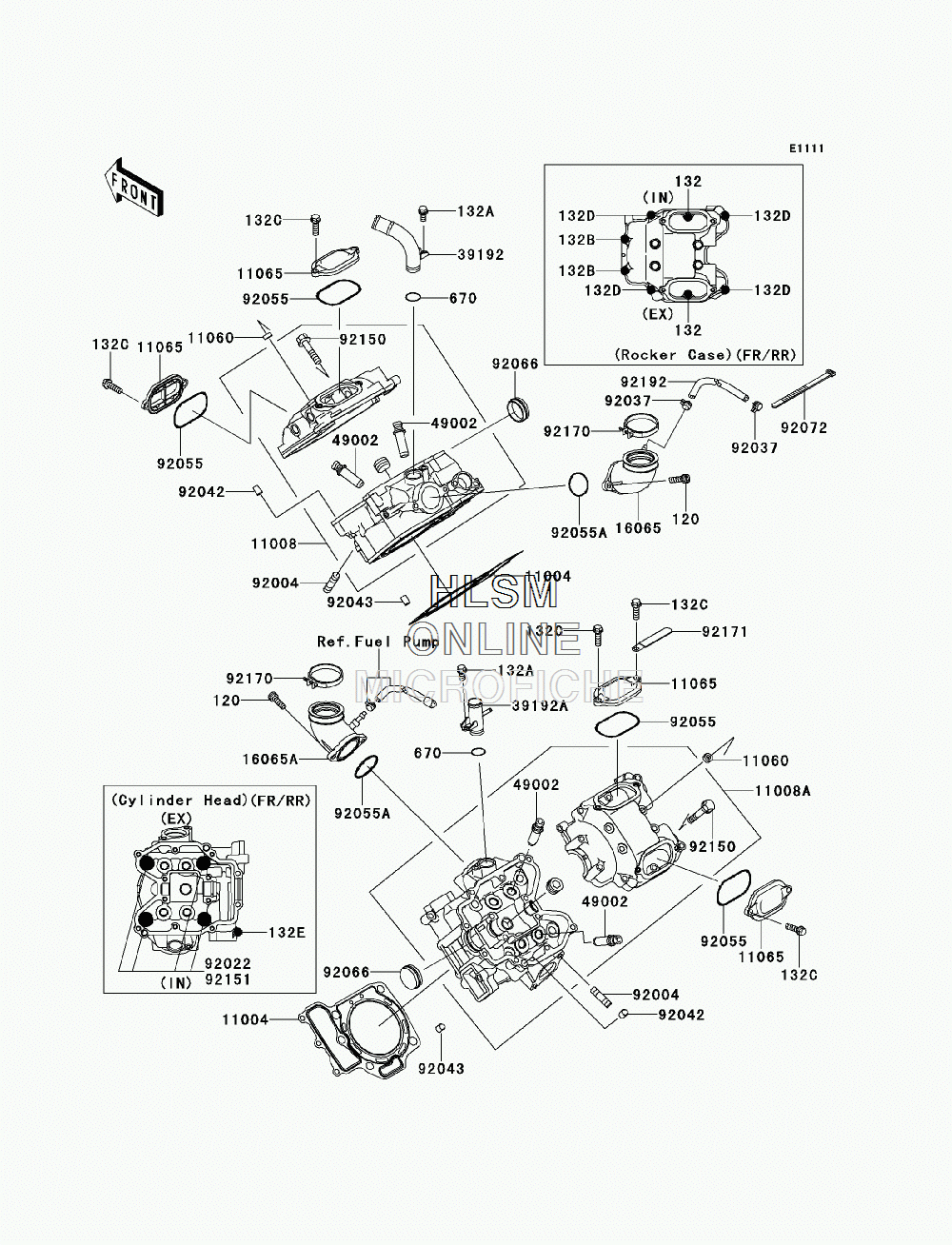

CYLINDER HEAD для Kawasaki BRUTE FORCE 650 4X4 (KVF650DCS) - 2012 года выпуска
-
№АртикулНазвание
-
120120CD0620 BOLT-SOCKET, 6X20BOLT-SOCKET, 6X20
-
132132BA0625 BOLT-FLANGED-SMALL, 6X25BOLT-FLANGED-SMALL, 6X25
-
132A132BD0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
132B132BD06130 BOLT-FLANGED-SMALL, 6X130BOLT-FLANGED-SMALL, 6X130
-
132C132BD0620 BOLT-FLANGED-SMALL, 6X20BOLT-FLANGED-SMALL, 6X20
-
132D132BD0630 BOLT-FLANGED-SMALL, 6X30BOLT-FLANGED-SMALL, 6X30
-
132E132BD0695 BOLT-FLANGED-SMALL, 6X95BOLT-FLANGED-SMALL, 6X95
-
670670B2016 O RING, 16MMO RING, 16MM
-
1100411004-0030 GASKET-HEADGASKET-HEAD
-
1100811008-0030 HEAD-COMP-CYLINDER, FRONTHEAD-COMP-CYLINDER, FRONT
-
11008A11008-0031 HEAD-COMP-CYLINDER, REARHEAD-COMP-CYLINDER, REAR
-
1106011060-1994 GASKET, 6.2X12X0.3GASKET, 6.2X12X0.3
-
1106511065-1152 CAP, ROCKER CASECAP, ROCKER CASE
-
1606516065-1370 HOLDER-CARBURETOR, FRONTHOLDER-CARBURETOR, FRONT
-
16065A16065-1371 HOLDER-CARBURETOR, REARHOLDER-CARBURETOR, REAR
-
3919239192-1132 PIPE-WATERPIPE-WATER
-
39192A39192-1133 PIPE-WATERPIPE-WATER
-
4900249002-1097 GUIDE-VALVEGUIDE-VALVE
-
9200492004-1217 STUD, 8X22STUD, 8X22
-
9202292022-1720 WASHER, 11.5X20.5X1.6WASHER, 11.5X20.5X1.6
-
9203792037-1461 CLAMP, TUBECLAMP, TUBE
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
9204392043-4009 PIN, 10.1X12X14PIN, 10.1X12X14
-
9205592055-0112 RING-ORING-O
-
92055A92055-1295 RING-O, 38X1.9RING-O, 38X1.9
-
9206692066-1289 PLUGPLUG
-
9207292072-030 BAND, L=123BAND, L=123
-
9215092150-1302 BOLT, FLANGED, 6X55BOLT, FLANGED, 6X55
-
9215192151-1917 BOLT, FLANGED, 10X150BOLT, FLANGED, 10X150
-
9217092170-1722 CLAMPCLAMP
-
9217192171-0456 CLAMPCLAMP
-
9219292192-0207 TUBE, 4X9X610TUBE, 4X9X610
