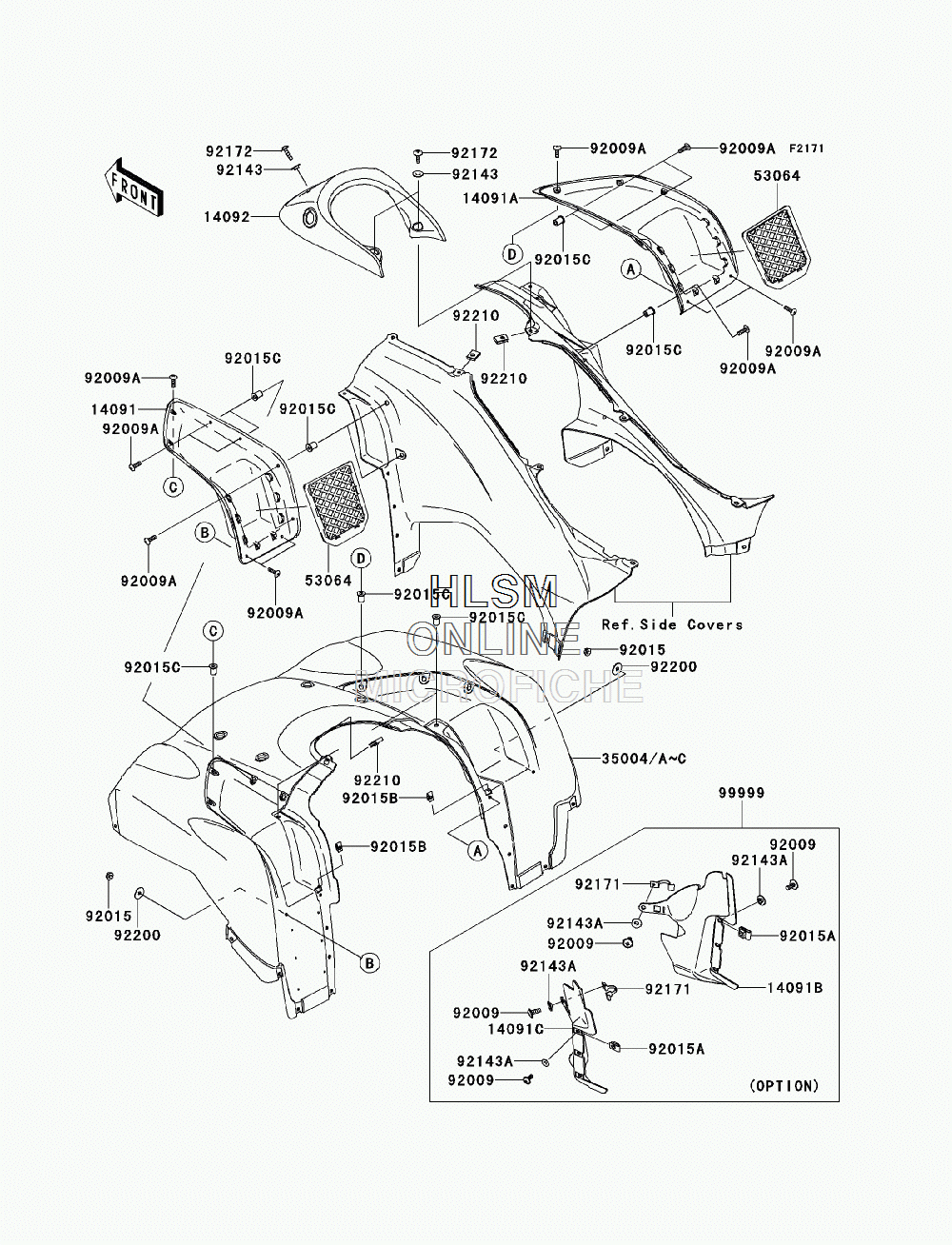

FENDER - FRONT для Kawasaki BRUTE FORCE 650 4X4I (KVF650FCF) - 2012 года выпуска
-
№АртикулНазвание
-
1409114091-0135-6Z COVER, POCKET, LEFT HAND (F.BLACK)COVER, POCKET, LEFT HAND (F.BLACK)
-
14091A14091-0136-6Z COVER, POCKET, RIGHT HAND (F.BLACK)COVER, POCKET, RIGHT HAND (F.BLACK)
-
14091B14091-0179 COVER, SIDE, INNER, RIGHT HAND (OPTION)COVER, SIDE, INNER, RIGHT HAND (OPTION)
-
14091C14091-0337 COVER, SIDE, INNER, LEFT HAND (OPTION)COVER, SIDE, INNER, LEFT HAND (OPTION)
-
1409214092-0769-6Z COVER, TOP (F.BLACK)COVER, TOP (F.BLACK)
-
35004A35004-0314-31R FENDER-FRONT (S.GREEN) (FOR 31R)FENDER-FRONT (S.GREEN) (FOR 31R)
-
35004B35004-0314-32K FENDER-FRONT (BLUE) (FOR 32K)FENDER-FRONT (BLUE) (FOR 32K)
-
5306453064-0002 NET-CARGONET-CARGO
-
9200992009-1621 SCREW, 6X16 (OPTION)SCREW, 6X16 (OPTION)
-
92009A92009-1655 SCREW, 5X18SCREW, 5X18
-
9201592015-1259 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
-
92015A92015-1602 NUT, 6MM (OPTION)NUT, 6MM (OPTION)
-
92015B92015-1710 NUT, 5MMNUT, 5MM
-
92015C92015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
9214392143-1087 COLLARCOLLAR
-
92143A92143-1087 COLLAR (OPTION)COLLAR (OPTION)
-
9217192171-0223 CLAMP (OPTION)CLAMP (OPTION)
-
9217292172-0488 SCREW, TAPPING, 6X20SCREW, TAPPING, 6X20
-
9220092200-0284 WASHER, 5.5X20X1.2WASHER, 5.5X20X1.2
-
9221092210-0624 NUT, LEAF SPRING, 6MMNUT, LEAF SPRING, 6MM
-
9999999999-0055 INNER FENDER KIT (OPTION)INNER FENDER KIT (OPTION)
