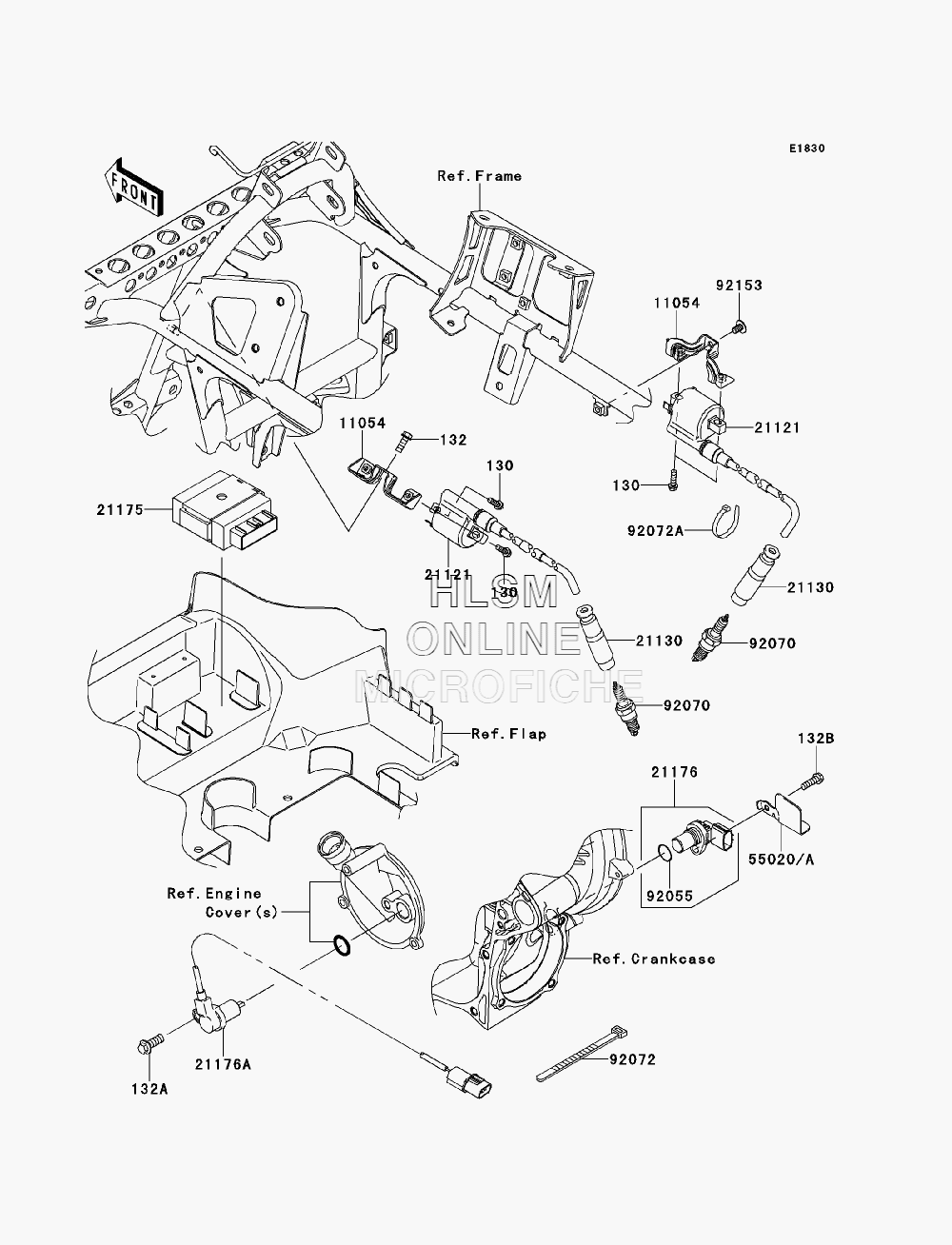

IGNITION SYSTEM для Kawasaki BRUTE FORCE 750 4X4I EPS (KVF750GCS) - 2012 года выпуска
-
№АртикулНазвание
-
130130BB0518 BOLT-FLANGED, 5X18BOLT-FLANGED, 5X18
-
132132BA0616 BOLT-FLANGED-SMALL, 6X16BOLT-FLANGED-SMALL, 6X16
-
132A132BA0822 BOLT-FLANGED-SMALL, 8X22BOLT-FLANGED-SMALL, 8X22
-
132B132BD0620 BOLT-FLANGED-SMALL, 6X20BOLT-FLANGED-SMALL, 6X20
-
1105411054-1328 BRACKETBRACKET
-
2112121121-0039 COIL-IGNITIONCOIL-IGNITION
-
2113021130-1071 CAP-SPARK PLUGCAP-SPARK PLUG
-
2117521175-0216 CONTROL UNIT-ELECTRONICCONTROL UNIT-ELECTRONIC
-
2117621176-1104 SENSOR, SPEEDSENSOR, SPEED
-
21176A21176-1109 SENSOR, REVERSESENSOR, REVERSE
-
55020A55020-0762 GUARDGUARD
-
9205592055-1718 RING-ORING-O
-
9207092070-1209 PLUG-SPARK, CR7E(NGK)PLUG-SPARK, CR7E(NGK)
-
9207292072-030 BAND, L=123BAND, L=123
-
92072A92072-1239 BAND, L=188BAND, L=188
-
9215392153-1527 BOLT, SOCKET, 6X10BOLT, SOCKET, 6X10
