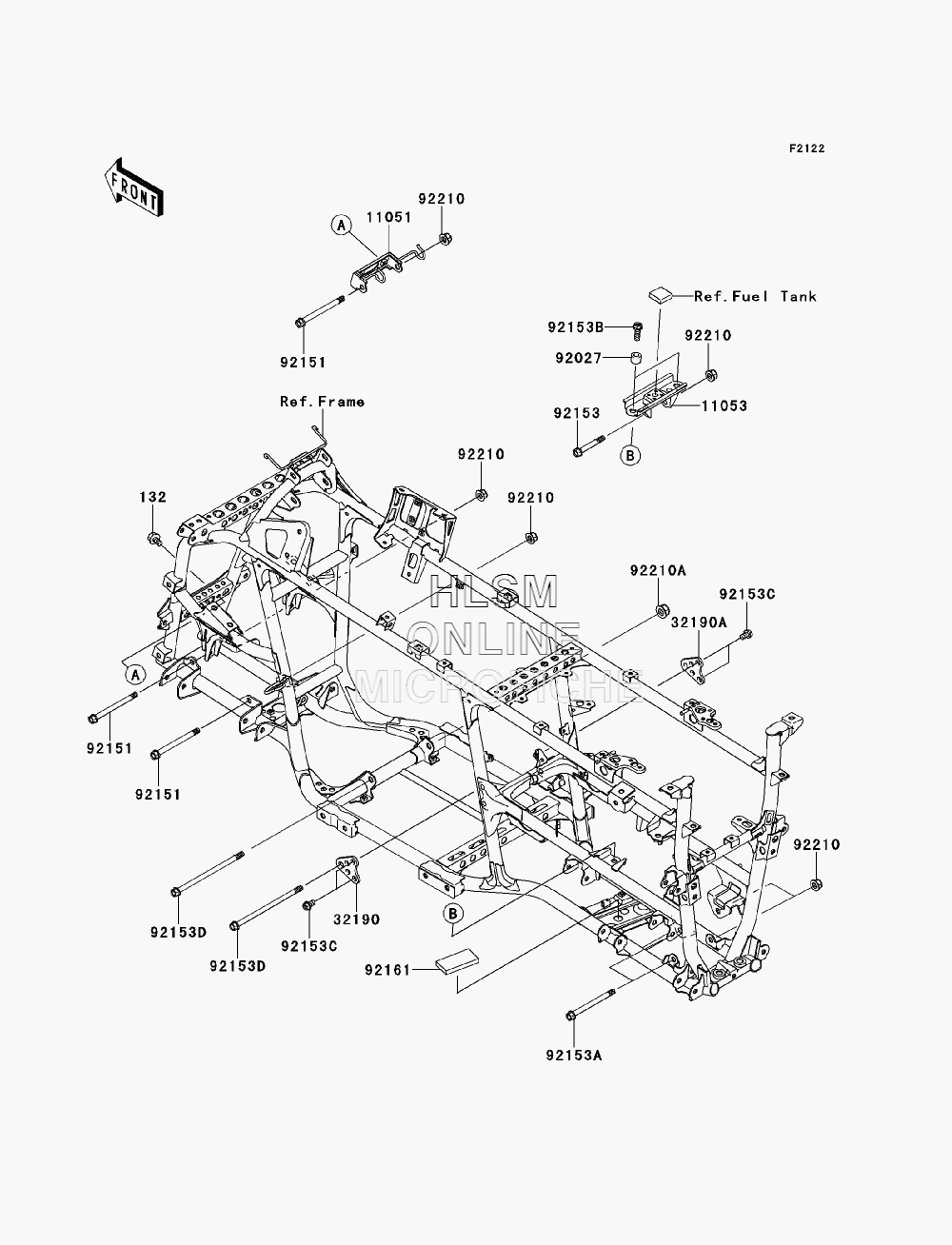

ENGINE MOUNT для Kawasaki BRUTE FORCE 750 4X4I EPS (KVF750JCF) - 2012 года выпуска
-
№АртикулНазвание
-
132132BA0814 BOLT-FLANGED-SMALL, 8X14BOLT-FLANGED-SMALL, 8X14
-
1105111051-1929 BRACKET, FRONT DIFFBRACKET, FRONT DIFF
-
1105311053-1592 BRACKET, REAR DIFF, TOPBRACKET, REAR DIFF, TOP
-
3219032190-0059 BRACKET-ENGINE, REAR, UPPER, LEFT HANDBRACKET-ENGINE, REAR, UPPER, LEFT HAND
-
32190A32190-0060 BRACKET-ENGINE, REAR, UPPER, RIGHT HANDBRACKET-ENGINE, REAR, UPPER, RIGHT HAND
-
9202792027-1472 COLLAR, FRONT AXLE, L=14.5COLLAR, FRONT AXLE, L=14.5
-
9215192151-1914 BOLT, FLANGED, 10X120BOLT, FLANGED, 10X120
-
9215392153-0871 BOLT, FLANGED, 10X70BOLT, FLANGED, 10X70
-
92153A92153-0872 BOLT, FLANGED, 10X120BOLT, FLANGED, 10X120
-
92153B92153-0930 BOLT, FLANGED, 10X30BOLT, FLANGED, 10X30
-
92153C92153-0991 BOLT, FLANGED, 10X16BOLT, FLANGED, 10X16
-
92153D92153-1502 BOLT, FLANGED, 12X190BOLT, FLANGED, 12X190
-
9216192161-0215 DAMPERDAMPER
-
9221092210-1081 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
-
92210A92210-1150 NUT, LOCK, FLANGED, 12MMNUT, LOCK, FLANGED, 12MM
