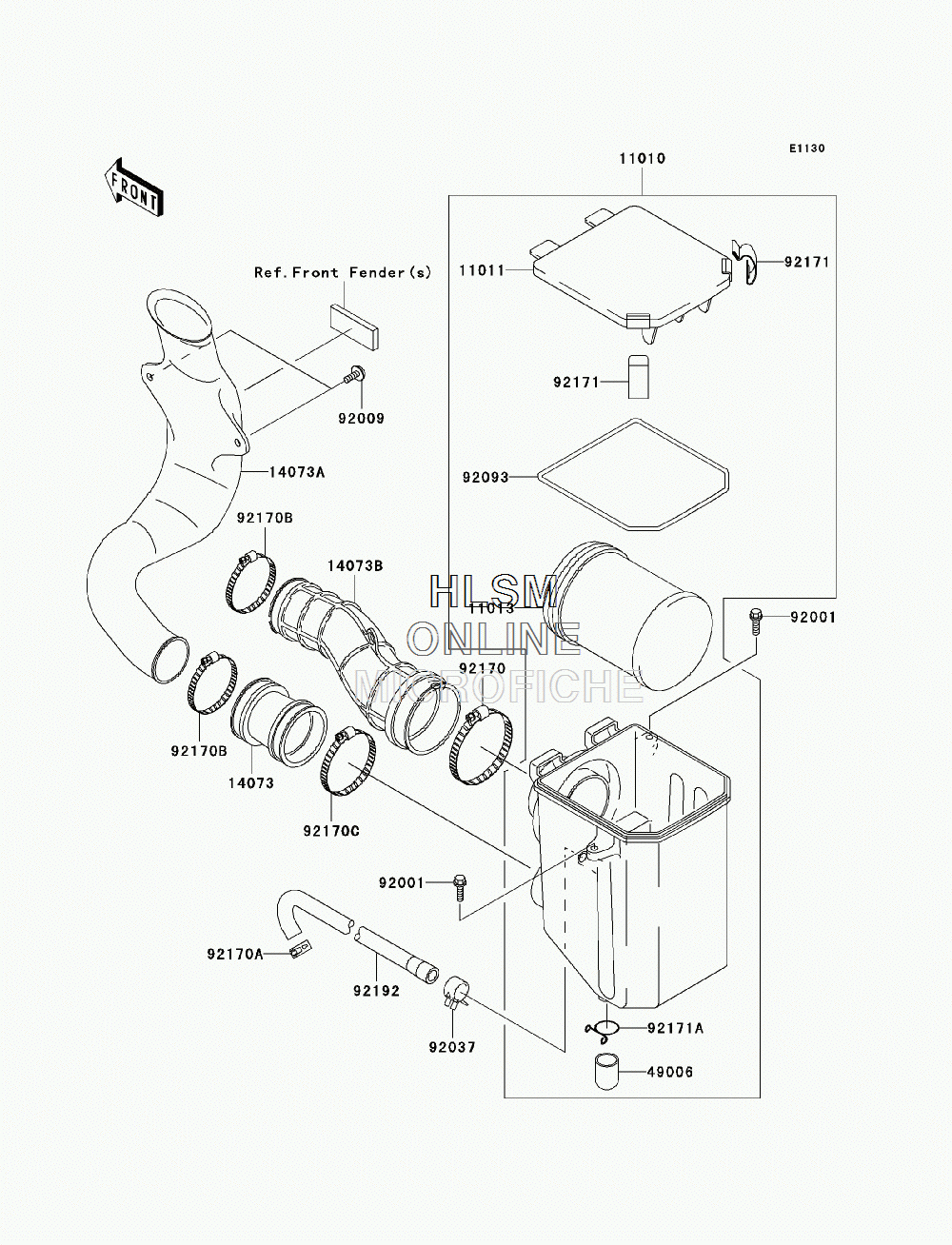

AIR BOX ASSY. для Kawasaki PRAIRIE 360 4X4 (KVF360ACF) - 2012 года выпуска
-
№АртикулНазвание
-
1101011010-1766 FILTER-ASSY-AIRFILTER-ASSY-AIR
-
1101111011-1639 CASE-AIR FILTER,UPPCASE-AIR FILTER,UPP
-
1101311013-1292 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
1407314073-1802 DUCT,A/C-INLETDUCT,A/C-INLET
-
14073A14073-1803 DUCT,INLETDUCT,INLET
-
14073B14073-1823 DUCT,A/C-CARBURETORDUCT,A/C-CARBURETOR
-
4900649006-1359 BOOTBOOT
-
9200192001-1460 BOLT,WP,6X20BOLT,WP,6X20
-
9200992009-1166 SCREW,TAPPING,6X16SCREW,TAPPING,6X16
-
9203792037-1678 CLAMPCLAMP
-
9209392093-1550 SEAL,AIR FILTER CASESEAL,AIR FILTER CASE
-
9217092170-1307 CLAMPCLAMP
-
92170A92170-1491 CLAMPCLAMP
-
92170B92170-1674 CLAMPCLAMP
-
92170C92170-1764 CLAMPCLAMP
-
9217192171-1426 CLAMP,AIR FILTER CASECLAMP,AIR FILTER CASE
-
92171A92171-1427 CLAMPCLAMP
-
9219292192-0752 TUBE,AIR CLEANERTUBE,AIR CLEANER
