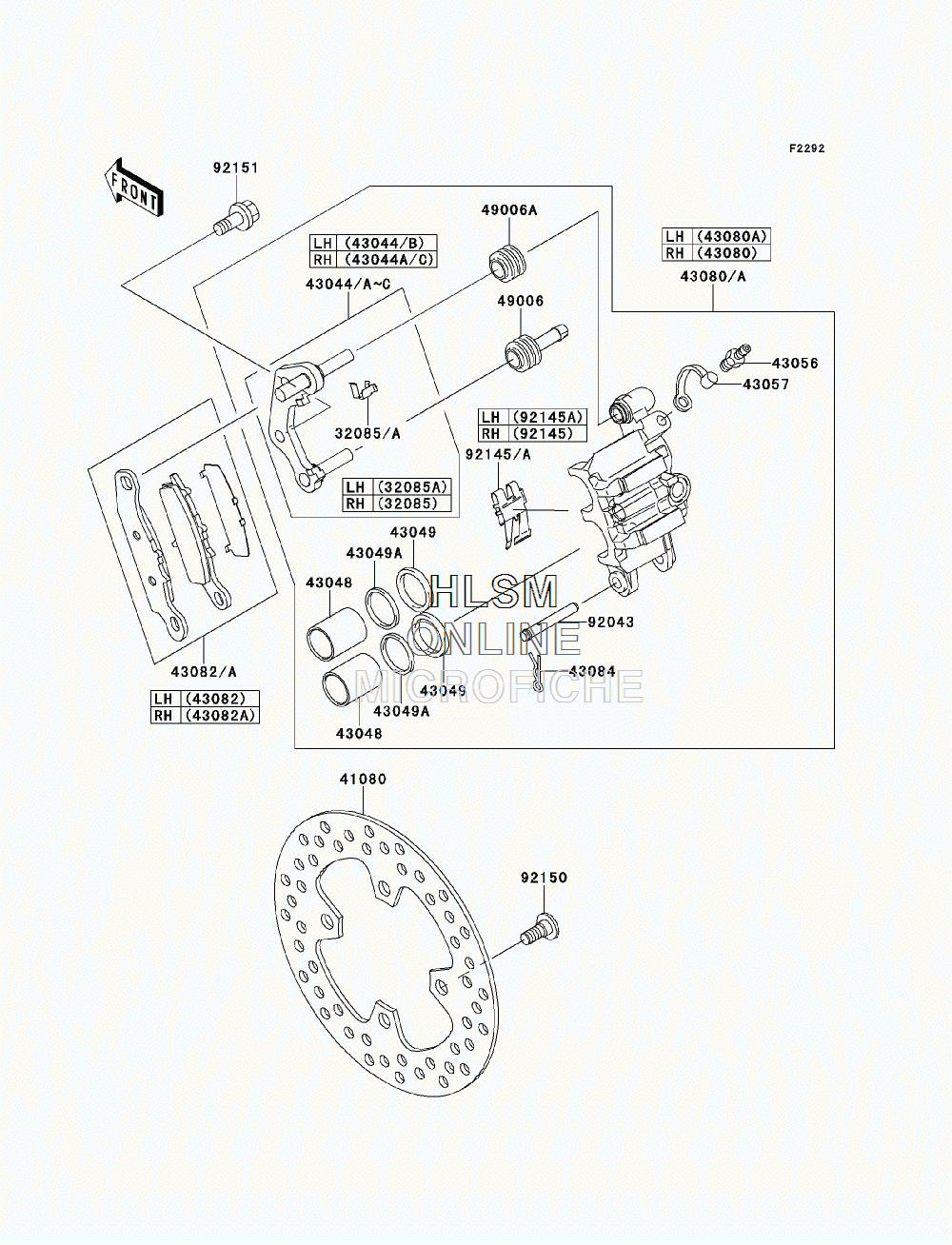

BRAKE - FRONT для Kawasaki BRUTE FORCE 650 4x4 (KVF650DDF) - 2013 года выпуска
-
№АртикулНазвание
-
3208532085-1437 STOPPER, RIGHT HANDSTOPPER, RIGHT HAND
-
32085A32085-1517 STOPPER, LEFT HANDSTOPPER, LEFT HAND
-
4108041080-0073 DISC, FRONTDISC, FRONT
-
43044B43044-0037 HOLDER-COMP-CALIPER, FRONT, LEFT HANDHOLDER-COMP-CALIPER, FRONT, LEFT HAND
-
43044C43044-0038 HOLDER-COMP-CALIPER, FRONT, RIGHT HANDHOLDER-COMP-CALIPER, FRONT, RIGHT HAND
-
4304843048-1083 PISTON-CALIPERPISTON-CALIPER
-
4304943049-1059 PACKING, PISTONPACKING, PISTON
-
43049A43049-1090 PACKING, PISTON SEALPACKING, PISTON SEAL
-
4305643056-0007 BREATHER-BRAKEBREATHER-BRAKE
-
4305743057-003 CAP-BREATHERCAP-BREATHER
-
4308043080-5081-DJ CALIPER-SUB-ASSY, FRONT, RIGHT HAND, (BLACK)CALIPER-SUB-ASSY, FRONT, RIGHT HAND, (BLACK)
-
43080A43080-5082-DJ CALIPER-SUB-ASSY, FRONT, LEFT HAND, (BLACK)CALIPER-SUB-ASSY, FRONT, LEFT HAND, (BLACK)
-
4308243082-1255 PAD-ASSY-BRAKE, LEFT HANDPAD-ASSY-BRAKE, LEFT HAND
-
43082A43082-1273 PAD-ASSY-BRAKE, RIGHT HANDPAD-ASSY-BRAKE, RIGHT HAND
-
4308443084-003 CLAMP, PADCLAMP, PAD
-
4900649006-1054 BOOT, CALIPERBOOT, CALIPER
-
49006A49006-1055 BOOT, CALIPERBOOT, CALIPER
-
9204392043-1356 PIN, PADPIN, PAD
-
9214592145-1260 SPRING, PAD, RIGHT HANDSPRING, PAD, RIGHT HAND
-
92145A92145-1354 SPRING, PAD, LEFT HANDSPRING, PAD, LEFT HAND
-
9215092150-1800 BOLT, SOCKET, 8X20BOLT, SOCKET, 8X20
-
9215192151-1793 BOLT, FLANGED, 8X19BOLT, FLANGED, 8X19
