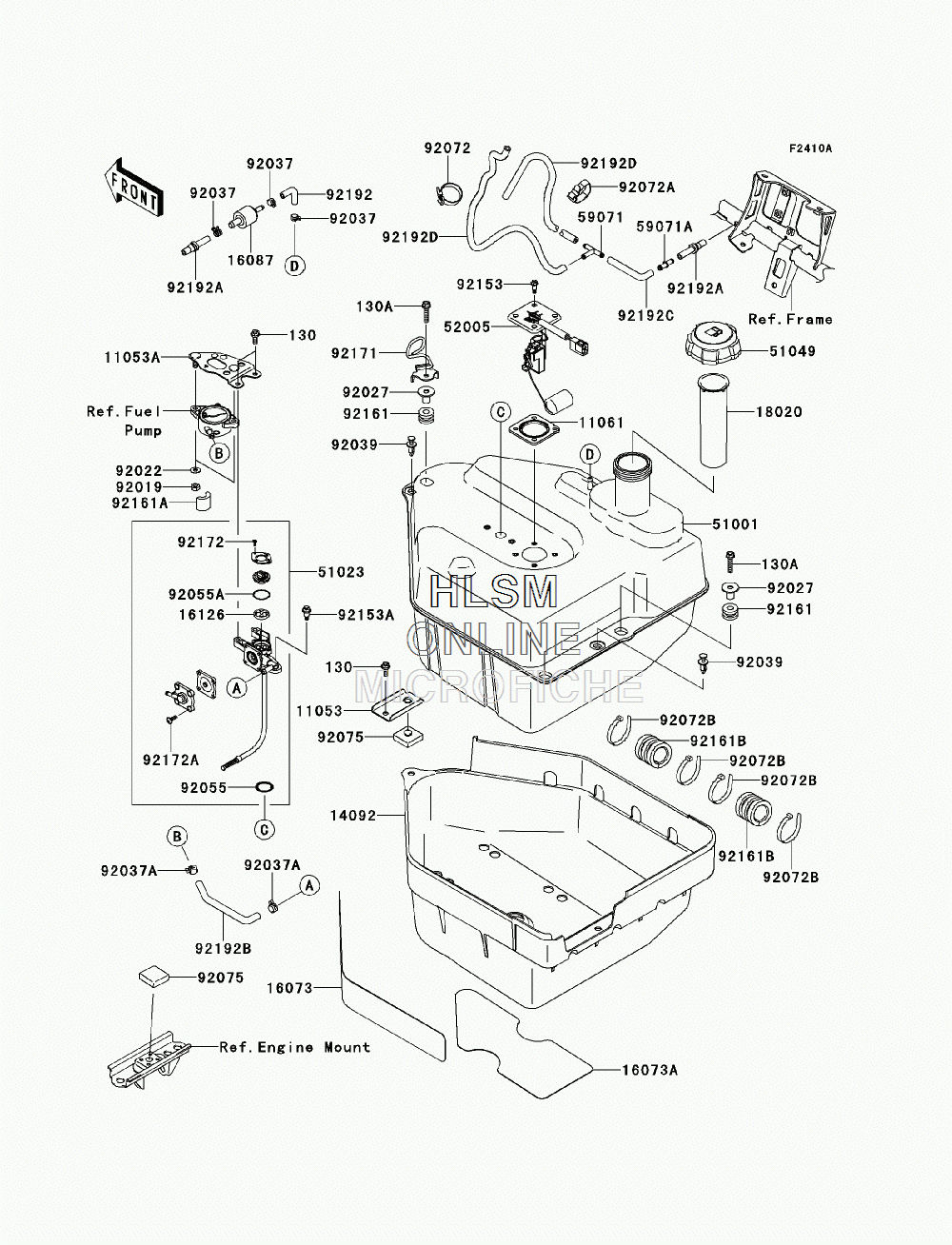

FUEL TANK для Kawasaki BRUTE FORCE 650 4X4I (KVF650FDF) - 2013 года выпуска
-
№АртикулНазвание
-
1105311053-0936 BRACKET, FUEL TANK, TOPBRACKET, FUEL TANK, TOP
-
11053A11053-1247 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
1106111061-0071 GASKET, FUEL GAUGEGASKET, FUEL GAUGE
-
1409214092-0186 COVER, FUEL TANK, LWRCOVER, FUEL TANK, LWR
-
1607316073-0033 INSULATOR, FUEL TANK COVER, SIDEINSULATOR, FUEL TANK COVER, SIDE
-
16073A16073-0034 INSULATOR, FUEL TANK COVER, LWRINSULATOR, FUEL TANK COVER, LWR
-
1608716087-0703 VALVE-CHECKVALVE-CHECK
-
1612616126-0027 VALVEVALVE
-
1802018020-0008 BAFFLE, FUEL TANKBAFFLE, FUEL TANK
-
5100151001-0198 TANK-COMP-FUELTANK-COMP-FUEL
-
5102351023-0022 TAP-ASSY, FUELTAP-ASSY, FUEL
-
5104951049-0001 CAP-TANK, FUELCAP-TANK, FUEL
-
5200552005-0011 GAUGE, FUELGAUGE, FUEL
-
5907159071-3705 JOINTJOINT
-
59071A59071-3717 JOINTJOINT
-
9201992019-008 NUT, LOCK, 6MMNUT, LOCK, 6MM
-
9202292022-2373 WASHER, 6.2X15.0X1.2WASHER, 6.2X15.0X1.2
-
9202792027-1847 COLLAR, L=16.1COLLAR, L=16.1
-
9203792037-1461 CLAMP, TUBECLAMP, TUBE
-
92037A92037-1505 CLAMP, TUBECLAMP, TUBE
-
9203992039-1229 RIVETRIVET
-
9205592055-0081 RING-O, FUEL TAPRING-O, FUEL TAP
-
92055A92055-0111 RING-ORING-O
-
9207292072-031 BAND, L=149BAND, L=149
-
92072A92072-056 BAND, L=186BAND, L=186
-
92072B92072-1239 BAND, L=188BAND, L=188
-
9207592075-1882 DAMPERDAMPER
-
9215392153-0361 BOLT, FLANGED, 5MMBOLT, FLANGED, 5MM
-
92153A92153-0824 BOLT, 6MMBOLT, 6MM
-
9216192161-0106 DAMPERDAMPER
-
92161A92161-0125 DAMPER, FUEL PUMPDAMPER, FUEL PUMP
-
92161B92161-1111 DAMPER, FUEL TANK, REARDAMPER, FUEL TANK, REAR
-
9217192171-1741 CLAMP, FUEL TUBECLAMP, FUEL TUBE
-
9217292172-0259 SCREW, 3X6SCREW, 3X6
-
92172A92172-0260 SCREW, 4X15SCREW, 4X15
-
9219292192-0067 TUBE, FUEL TANK-CHECK VALVETUBE, FUEL TANK-CHECK VALVE
-
92192A92192-0068 TUBE, FRAME PIPE-CHECK VALVETUBE, FRAME PIPE-CHECK VALVE
-
92192B92192-0492 TUBE, FUELTUBE, FUEL
-
92192C92192-0992 TUBE, 5X10X80/22TUBE, 5X10X80/22
-
92192D92192-0993 TUBE, 5X10X470TUBE, 5X10X470
-
130130BA0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
130A130BA0630 BOLT-FLANGED, 6X30BOLT-FLANGED, 6X30
