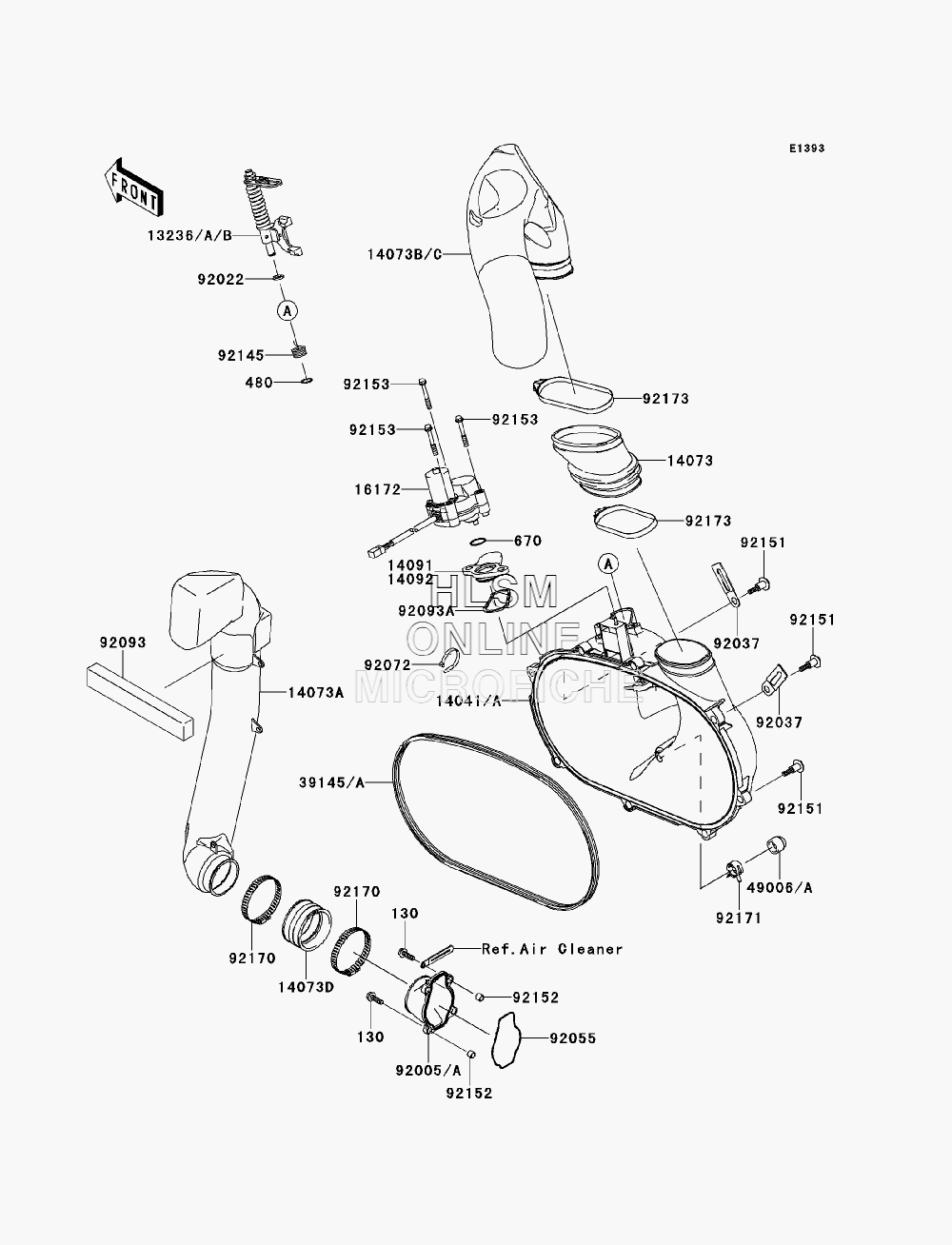

CONVERTER COVER для Kawasaki BRUTE FORCE 750 4X4I EPS (KVF750JDF) - 2013 года выпуска
-
№АртикулНазвание
-
130130CD0620 BOLT-FLANGED, 6X20BOLT-FLANGED, 6X20
-
480480J1000 CIRCLIP-TYPE-C, 10MMCIRCLIP-TYPE-C, 10MM
-
670670D3022 O RINGO RING
-
1323613236-0046 LEVER-COMP, (YELLOW)LEVER-COMP, (YELLOW)
-
13236A13236-0047 LEVER-COMP, (GREEN)LEVER-COMP, (GREEN)
-
13236B13236-0048 LEVER-COMP, PAINT LESSLEVER-COMP, PAINT LESS
-
1404114041-0556 COVER-COMPCOVER-COMP
-
1407314073-0028 DUCT, EXHAUST JOINTDUCT, EXHAUST JOINT
-
14073A14073-0298 DUCT, INTAKEDUCT, INTAKE
-
14073C14073-0734 DUCT, EXHAUSTDUCT, EXHAUST
-
14073D14073-1775 DUCT, JOINTDUCT, JOINT
-
1409214092-0780 COVERCOVER
-
1617216172-0018 ACTUATORACTUATOR
-
3914539145-0702 TRIM-SEALTRIM-SEAL
-
4900649006-0560 BOOT, DRAINBOOT, DRAIN
-
9200592005-0718 FITTINGFITTING
-
9202292022-1829 WASHER, 10.2X16X1WASHER, 10.2X16X1
-
9203792037-1780 CLAMPCLAMP
-
9205592055-1630 RING-ORING-O
-
9207292072-1239 BAND, L=188BAND, L=188
-
9209392093-0572 SEALSEAL
-
92093A92093-1548 SEALSEAL
-
9214592145-1567 SPRINGSPRING
-
9215192151-1686 BOLT, FLANGED, 6X30BOLT, FLANGED, 6X30
-
9215292152-1332 COLLARCOLLAR
-
9215392153-0678 BOLT, 6X47BOLT, 6X47
-
9217092170-1764 CLAMPCLAMP
-
9217192171-0329 CLAMPCLAMP
-
9217392173-0260 CLAMPCLAMP
