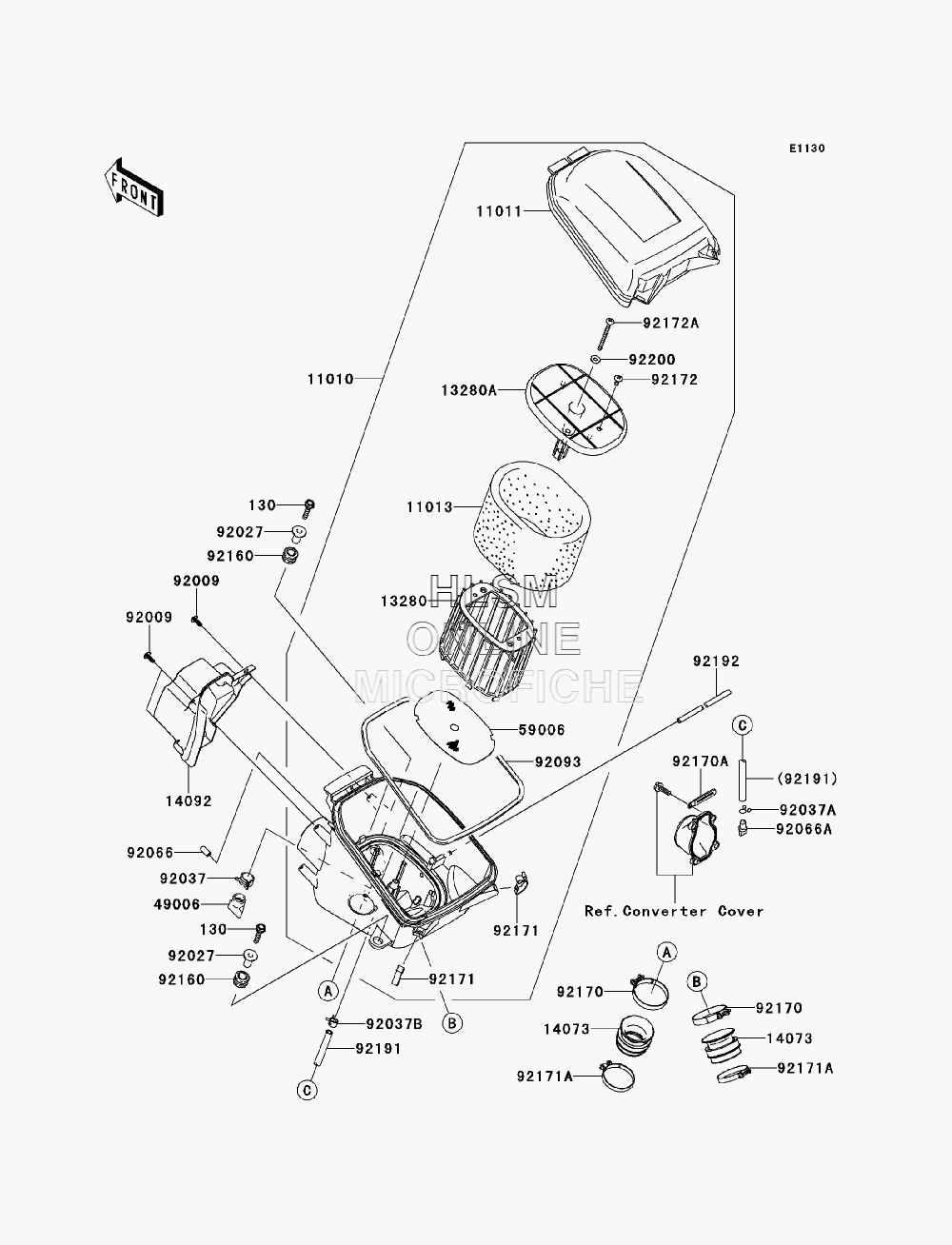

AIR CLEANER для Kawasaki BRUTE FORCE 750 4X4I (KVF750LEF) - 2014 года выпуска
-
№АртикулНазвание
-
130130BA0630 BOLT-FLANGED, 6X30BOLT-FLANGED, 6X30
-
1101011010-0152 FILTER-ASSY-AIRFILTER-ASSY-AIR
-
1101111011-0017 CASE-AIR FILTER, UPPERCASE-AIR FILTER, UPPER
-
1101311013-0021 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
1328013280-0232 HOLDERHOLDER
-
13280A13280-0233 HOLDERHOLDER
-
1407314073-0160 DUCTDUCT
-
1409214092-0768 COVER, INTAKE DUCTCOVER, INTAKE DUCT
-
4900649006-1292 BOOTBOOT
-
5900659006-0015 AREARESTER-FLAMEAREARESTER-FLAME
-
9200992009-1113 SCREW, TAPPINGSCREW, TAPPING
-
9202792027-195 COLLAR, L=21COLLAR, L=21
-
9203792037-1460 CLAMP, HOSE CLIPCLAMP, HOSE CLIP
-
92037A92037-147 CLAMP, TUBECLAMP, TUBE
-
92037B92037-1505 CLAMP, TUBECLAMP, TUBE
-
9206692066-0095 PLUGPLUG
-
92066A92066-1211 PLUG, DRAINPLUG, DRAIN
-
9209392093-0083 SEALSEAL
-
9216092160-1594 DAMPERDAMPER
-
9217092170-1448 CLAMPCLAMP
-
92170A92170-1514 CLAMPCLAMP
-
9217192171-0225 CLAMPCLAMP
-
92171A92171-0722 CLAMPCLAMP
-
9217292172-0297 SCREWSCREW
-
92172A92172-0300 SCREWSCREW
-
9219192191-1531 TUBE, 7X11X470TUBE, 7X11X470
-
9219292192-0449 TUBETUBE
-
9220092200-0364 WASHERWASHER
