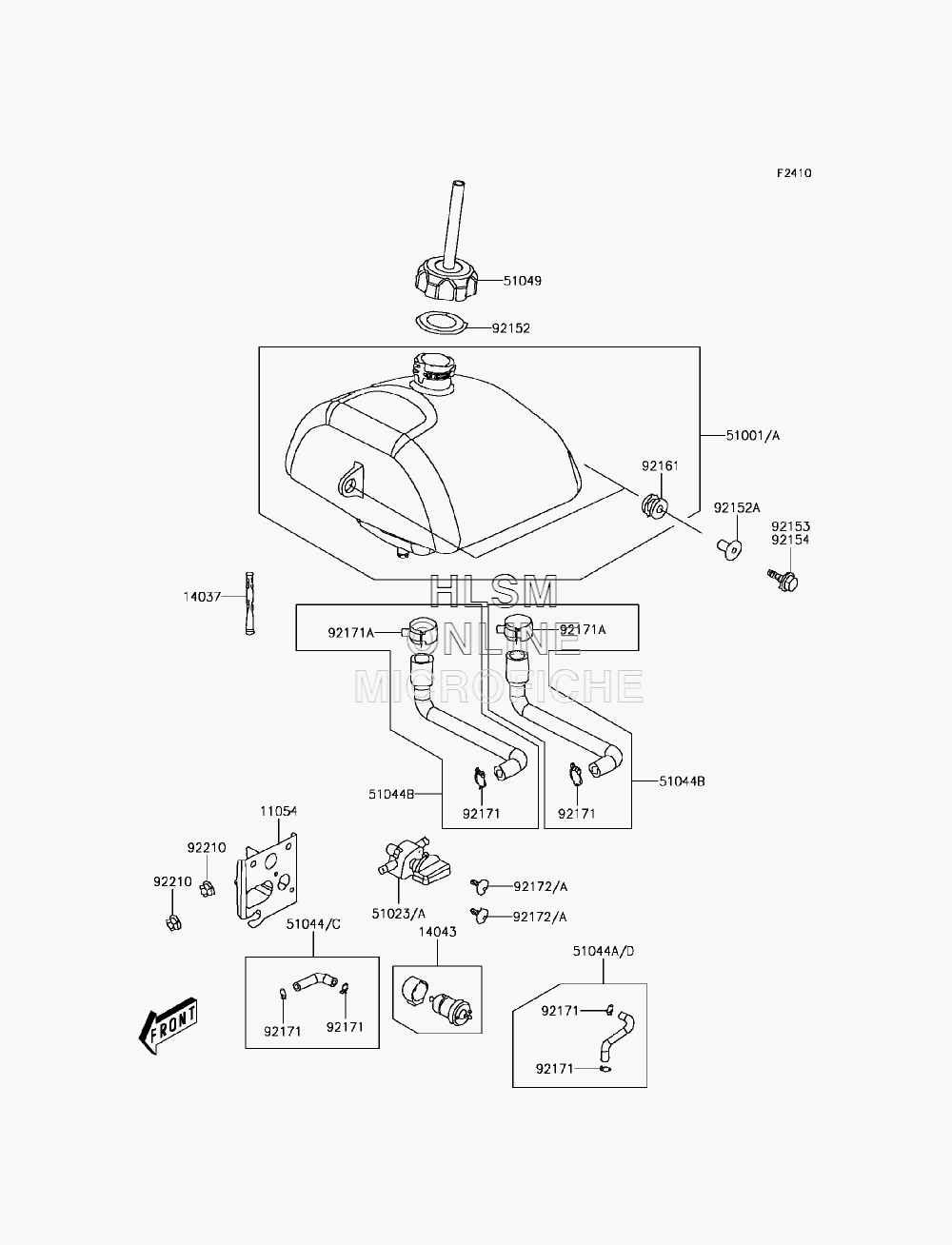

FUEL TANK для Kawasaki KFX 50 (KSF50BEF) - 2014 года выпуска
-
№АртикулНазвание
-
1105411054-Y003 BRACKETBRACKET
-
1403714037-Y001 SCREENSCREEN
-
1404314043-Y002 FILTER, FUELFILTER, FUEL
-
51001A51001-Y005 TANK-COMP-FUELTANK-COMP-FUEL
-
5102351023-Y001 TAP-ASSYTAP-ASSY
-
5104451044-Y005 TUBE-ASSY, FUEL (CANADA ONLY)TUBE-ASSY, FUEL (CANADA ONLY)
-
51044A51044-Y006 TUBE-ASSY, FUEL (CANADA ONLY)TUBE-ASSY, FUEL (CANADA ONLY)
-
51044B51044-Y007 TUBE-ASSY, FUEL TANKTUBE-ASSY, FUEL TANK
-
51044C51044-Y018 TUBE-ASSY, FUEL (USA ONLY)TUBE-ASSY, FUEL (USA ONLY)
-
51044D51044-Y019 TUBE-ASSY, FUEL (USA ONLY)TUBE-ASSY, FUEL (USA ONLY)
-
5104951049-Y002 CAP-TANKCAP-TANK
-
9215292152-Y001 COLLARCOLLAR
-
92152A92152-Y013 COLLARCOLLAR
-
9215392153-Y049 BOLT, FLANGE, 6X20BOLT, FLANGE, 6X20
-
9216192161-Y001 DAMPERDAMPER
-
9217192171-Y011 CLAMPCLAMP
-
92171A92171-Y013 CLAMPCLAMP
-
9217292172-Y010 SCREW, 5X16SCREW, 5X16
-
9221092210-Y027 NUT, 6MMNUT, 6MM
