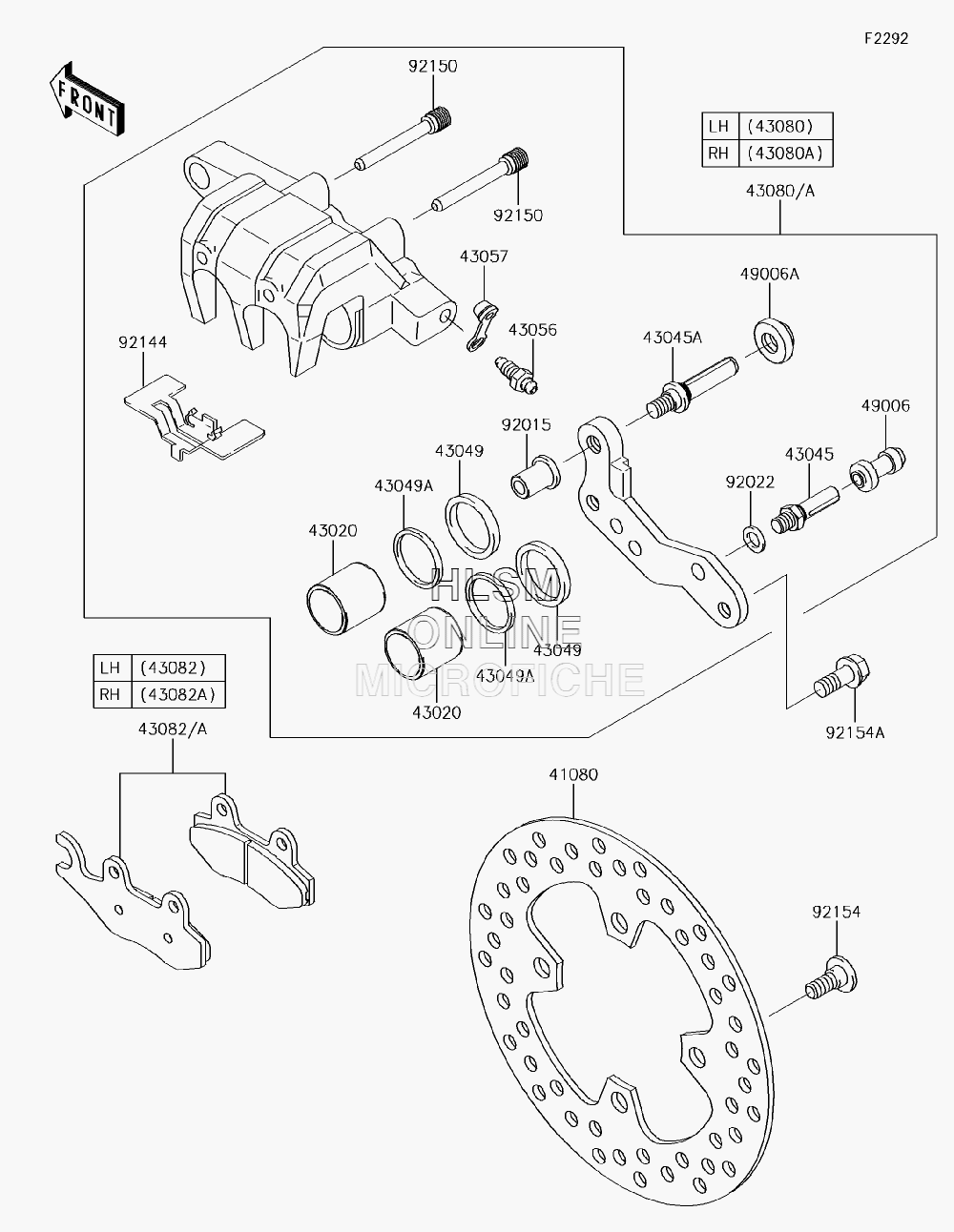

BRAKE - FRONT для Kawasaki BRUTE FORCE 750 4X4I (KVF750LFF) - 2015 года выпуска
-
№АртикулНазвание
-
4108041080-0585 DISC, FRONTDISC, FRONT
-
4302043020-1101 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4304543045-1010 SHAFT-CALIPERSHAFT-CALIPER
-
43045A43045-1052 SHAFT-CALIPERSHAFT-CALIPER
-
4304943049-1063 PACKINGPACKING
-
43049A43049-1064 PACKINGPACKING
-
4305643056-1055 BREATHERBREATHER
-
4305743057-1001 CAP-BREATHERCAP-BREATHER
-
4308043080-0089 CALIPER-SUB-ASSY, LEFT HANDCALIPER-SUB-ASSY, LEFT HAND
-
43080A43080-0090 CALIPER-SUB-ASSY, RIGHT HANDCALIPER-SUB-ASSY, RIGHT HAND
-
4308243082-0022 PAD-ASSY-BRAKE, FRONT, LEFT HANDPAD-ASSY-BRAKE, FRONT, LEFT HAND
-
43082A43082-0023 PAD-ASSY-BRAKE, FRONT, RIGHT HANDPAD-ASSY-BRAKE, FRONT, RIGHT HAND
-
4900649006-1088 BOOT, CALIPERBOOT, CALIPER
-
49006A49006-1242 BOOT, CALIPERBOOT, CALIPER
-
9201592015-1740 NUTNUT
-
9202292022-1373 WASHER, WAVEWASHER, WAVE
-
9214492144-1319 SPRING, PADSPRING, PAD
-
9215092150-1144 BOLTBOLT
-
9215492154-1165 BOLT, HEXALOBULAR SOCKET, 8X20BOLT, HEXALOBULAR SOCKET, 8X20
-
92154A92154-1379 BOLT, FLANGED, 8X19BOLT, FLANGED, 8X19
