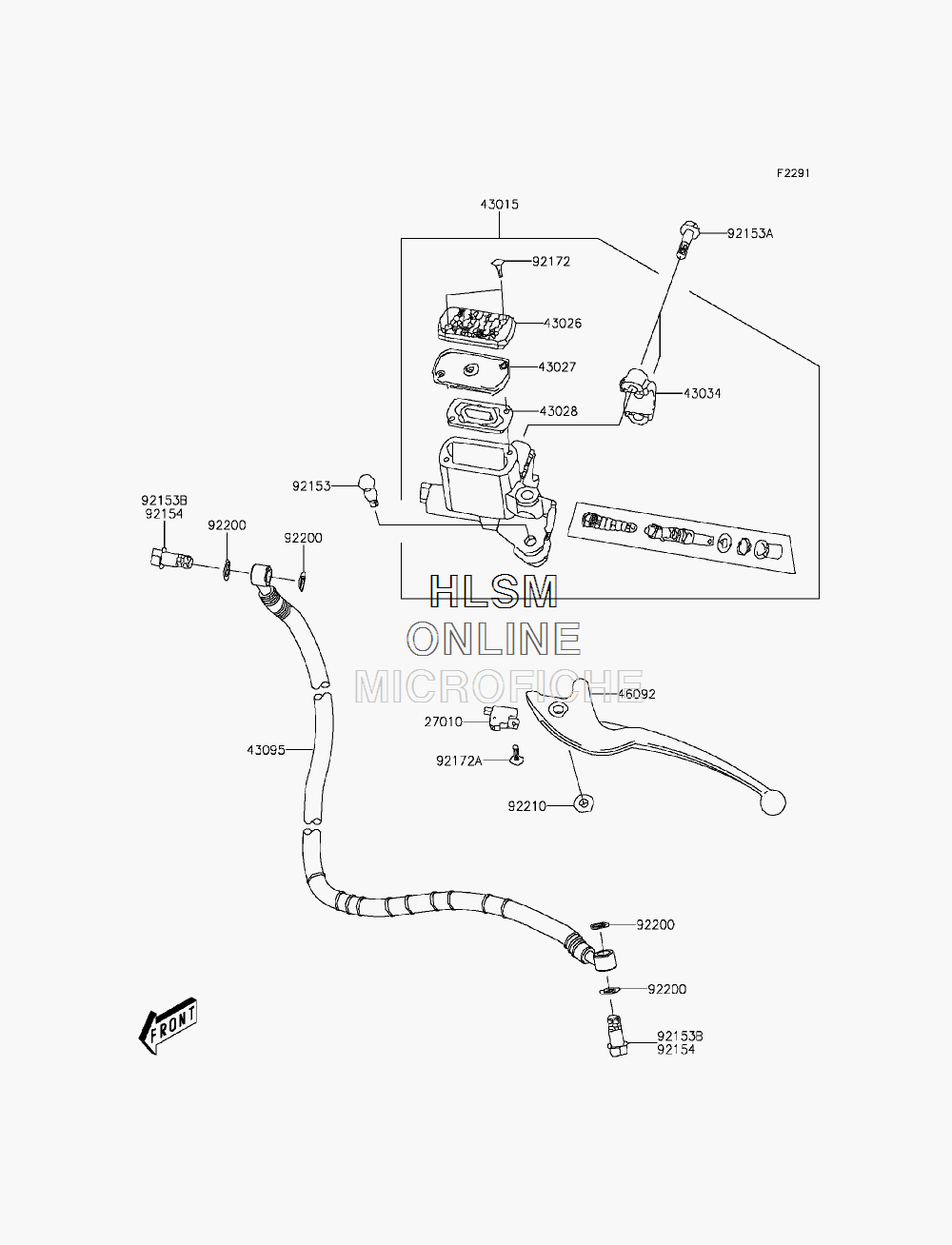

BRAKE - MASTER CYLINDER - FRONT для Kawasaki KFX 90 (KSF90AFF) - 2015 года выпуска
-
№АртикулНазвание
-
2701027010-Y004 SWITCH, STOPSWITCH, STOP
-
4301543015-Y001 CYLINDER-ASSY-MASTERCYLINDER-ASSY-MASTER
-
4302643026-Y001 CAP-BRAKECAP-BRAKE
-
4302743027-Y001 PLATE-DIAPHRAGMPLATE-DIAPHRAGM
-
4302843028-Y001 DIAPHRAGMDIAPHRAGM
-
4303443034-Y002 HOLDER-BRAKE, MASTER CYLINDERHOLDER-BRAKE, MASTER CYLINDER
-
4309543095-Y001 HOSE-BRAKEHOSE-BRAKE
-
4609246092-Y003 LEVER-GRIP, LEFT HANDLEVER-GRIP, LEFT HAND
-
9215392153-Y008 BOLTBOLT
-
92153A92153-Y010 BOLT, SOCKET, 6X23BOLT, SOCKET, 6X23
-
92153B92153-Y062 BOLT, 10X22BOLT, 10X22
-
9217292172-Y011 SCREW, 4X12SCREW, 4X12
-
92172A92172-Y014 SCREW, 4X12SCREW, 4X12
-
9220092200-Y015 WASHERWASHER
-
9221092210-Y026 NUT, 6MMNUT, 6MM
