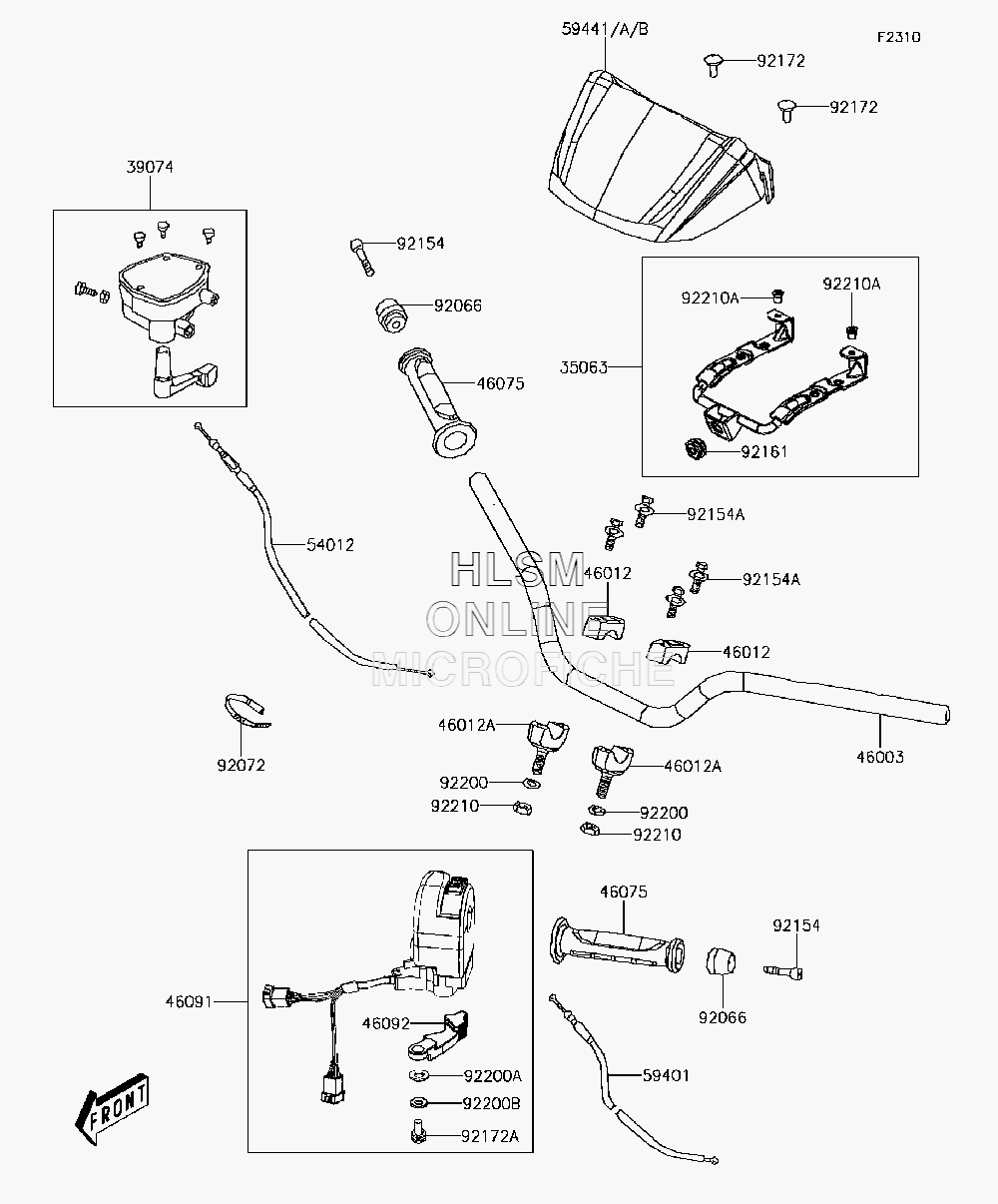

HANDLEBAR для Kawasaki BRUTE FORCE 300 (KVF300CHF) - 2017 года выпуска
-
№АртикулНазвание
-
3506335063-Y006 STAY, HANDLE COVERSTAY, HANDLE COVER
-
3907439074-Y001 LEVER-ASSY-THROTTLELEVER-ASSY-THROTTLE
-
4600346003-Y002-935 HANDLE, (BLACK) (FOR ALL COLORS)HANDLE, (BLACK) (FOR ALL COLORS)
-
4601246012-Y004 HOLDER-HANDLE, UPPERHOLDER-HANDLE, UPPER
-
46012A46012-Y005 HOLDER-HANDLE, LOWERHOLDER-HANDLE, LOWER
-
4607546075-Y004 GRIP, HANDLEGRIP, HANDLE
-
4609146091-Y002 HOUSING-ASSY-CONTROL, LEFT HANDHOUSING-ASSY-CONTROL, LEFT HAND
-
4609246092-Y010 LEVER-GRIP, CHOKELEVER-GRIP, CHOKE
-
5401254012-Y003 CABLE-THROTTLECABLE-THROTTLE
-
5940159401-Y001 CABLE-CHOKECABLE-CHOKE
-
59441A59441-Y002-933 COVER-HANDLE, (S.BLACK) (FOR 933)COVER-HANDLE, (S.BLACK) (FOR 933)
-
59441B59441-Y002-973 COVER-HANDLE, (T.GREEN) (FOR 973)COVER-HANDLE, (T.GREEN) (FOR 973)
-
9206692066-Y010 PLUG, HANDLEPLUG, HANDLE
-
9207292072-Y001 BANDBAND
-
9215492154-Y017 BOLT, 8X42BOLT, 8X42
-
92154A92154-Y018 BOLT, 8X35BOLT, 8X35
-
9216192161-Y006 DAMPERDAMPER
-
9217292172-Y039 SCREW, 5X16SCREW, 5X16
-
92172A92172-Y079 SCREW, 5X10SCREW, 5X10
-
9220092200-Y020 WASHER, 10MMWASHER, 10MM
-
92200A92200-Y068 WASHER, WAVEWASHER, WAVE
-
92200B92200-Y069 WASHER, 5MMWASHER, 5MM
-
9221092210-Y042 NUT, 10MMNUT, 10MM
-
92210A92210-Y056 NUT, 5MMNUT, 5MM
