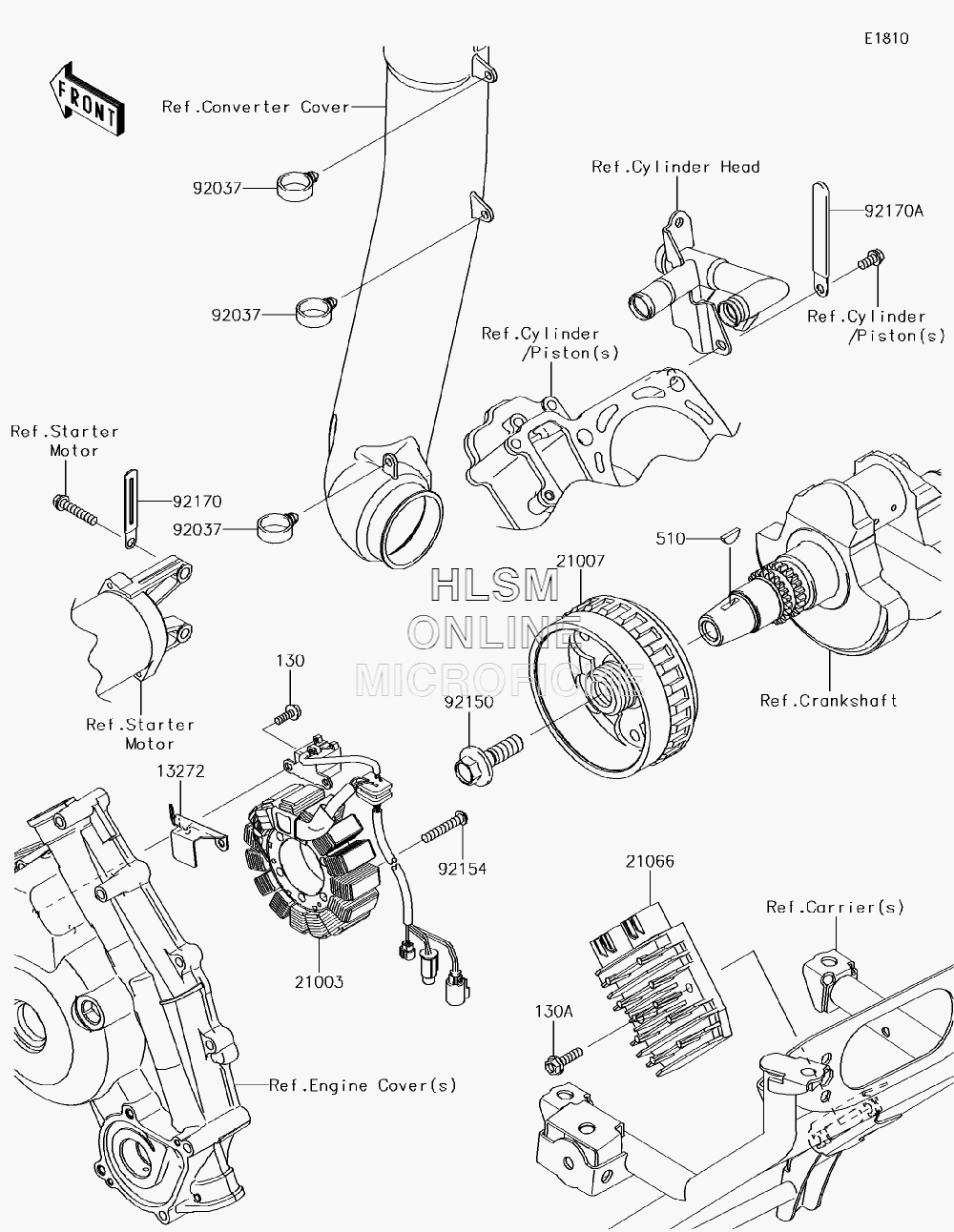

GENERATOR для Kawasaki BRUTE FORCE 750 4X4I EPS (KVF750JHF) - 2017 года выпуска
-
№АртикулНазвание
-
130130BA0514 BOLT-FLANGED, 5X14BOLT-FLANGED, 5X14
-
130A130BA0622 BOLT-FLANGED, 6X22BOLT-FLANGED, 6X22
-
1327213272-1222 PLATEPLATE
-
2100321003-0167 STATORSTATOR
-
2100721007-0633 ROTORROTOR
-
2106621066-0744 REGULATOR-VOLTAGEREGULATOR-VOLTAGE
-
510510A4200 KEY-WOODRUFFKEY-WOODRUFF
-
9203792037-1827 CLAMP, HOSECLAMP, HOSE
-
9215092150-1717 BOLT, 12X40BOLT, 12X40
-
9215492154-1007 BOLT, TORX, 6X35BOLT, TORX, 6X35
-
9217092170-1514 CLAMPCLAMP
-
92170A92170-1925 CLAMPCLAMP
