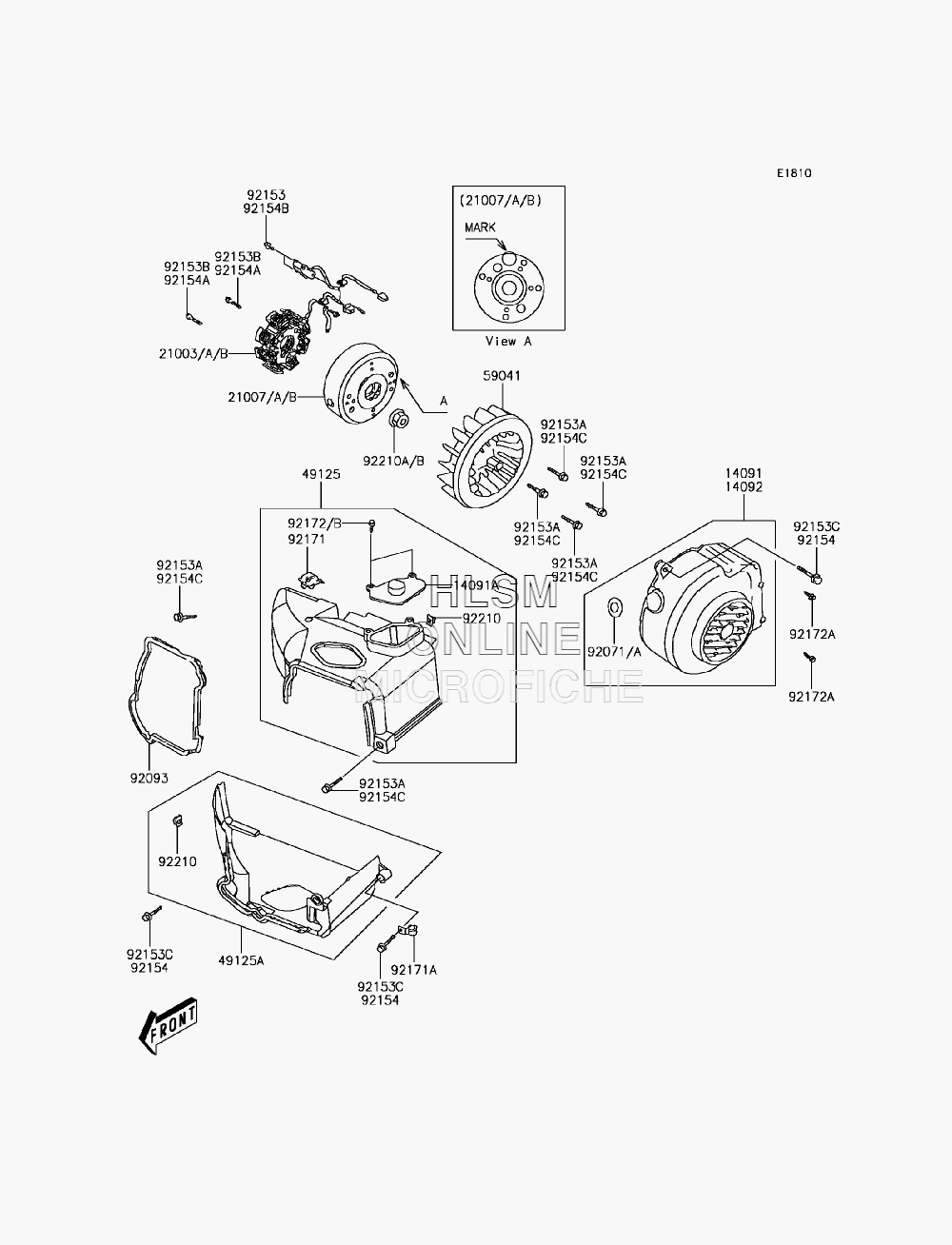

GENERATOR для Kawasaki KFX 50 (KSF50BHF) - 2017 года выпуска
-
№АртикулНазвание
-
1409114091-Y004 COVER, FAN (CANADA ONLY)COVER, FAN (CANADA ONLY)
-
14091A14091-Y005 COVER, SHROUD, UPPERCOVER, SHROUD, UPPER
-
1409214092-Y001 COVER, FAN (USA ONLY)COVER, FAN (USA ONLY)
-
2100321003-Y001 STATOR, D402STATOR, D402
-
21003A21003-Y003 STATOR, D406STATOR, D406
-
21003B21003-Y004 STATOR, D414STATOR, D414
-
2100721007-Y002 ROTOR, D402ROTOR, D402
-
21007A21007-Y003 ROTOR, D406ROTOR, D406
-
21007B21007-Y004 ROTOR, D414ROTOR, D414
-
4912549125-Y003 SHROUD, UPPSHROUD, UPP
-
49125A49125-Y005 SHROUD, LWRSHROUD, LWR
-
5904159041-Y002 FANFAN
-
9207192071-Y002 GROMMET (CANADA ONLY)GROMMET (CANADA ONLY)
-
92071A92071-Y003 GROMMET (USA ONLY)GROMMET (USA ONLY)
-
9209392093-Y010 SEAL, SHROUDSEAL, SHROUD
-
9215492154-Y066 BOLT, FLANGE, 6X25BOLT, FLANGE, 6X25
-
92154A92154-Y067 BOLT, FLANGE, 6X22BOLT, FLANGE, 6X22
-
92154B92154-Y111 BOLT, HEX, 5X12BOLT, HEX, 5X12
-
92154C92154-Y134 BOLT, FLANGE, 6X16BOLT, FLANGE, 6X16
-
9217192171-Y001 CLAMPCLAMP
-
92171A92171-Y002 CLAMPCLAMP
-
92172A92172-Y021 SCREW, 5X16SCREW, 5X16
-
92172B92172-Y072 SCREW, TAPPING, 4X12SCREW, TAPPING, 4X12
-
9221092210-Y011 NUT, 6MMNUT, 6MM
-
92210B92210-Y058 NUT, FLANGE, 10MMNUT, FLANGE, 10MM
