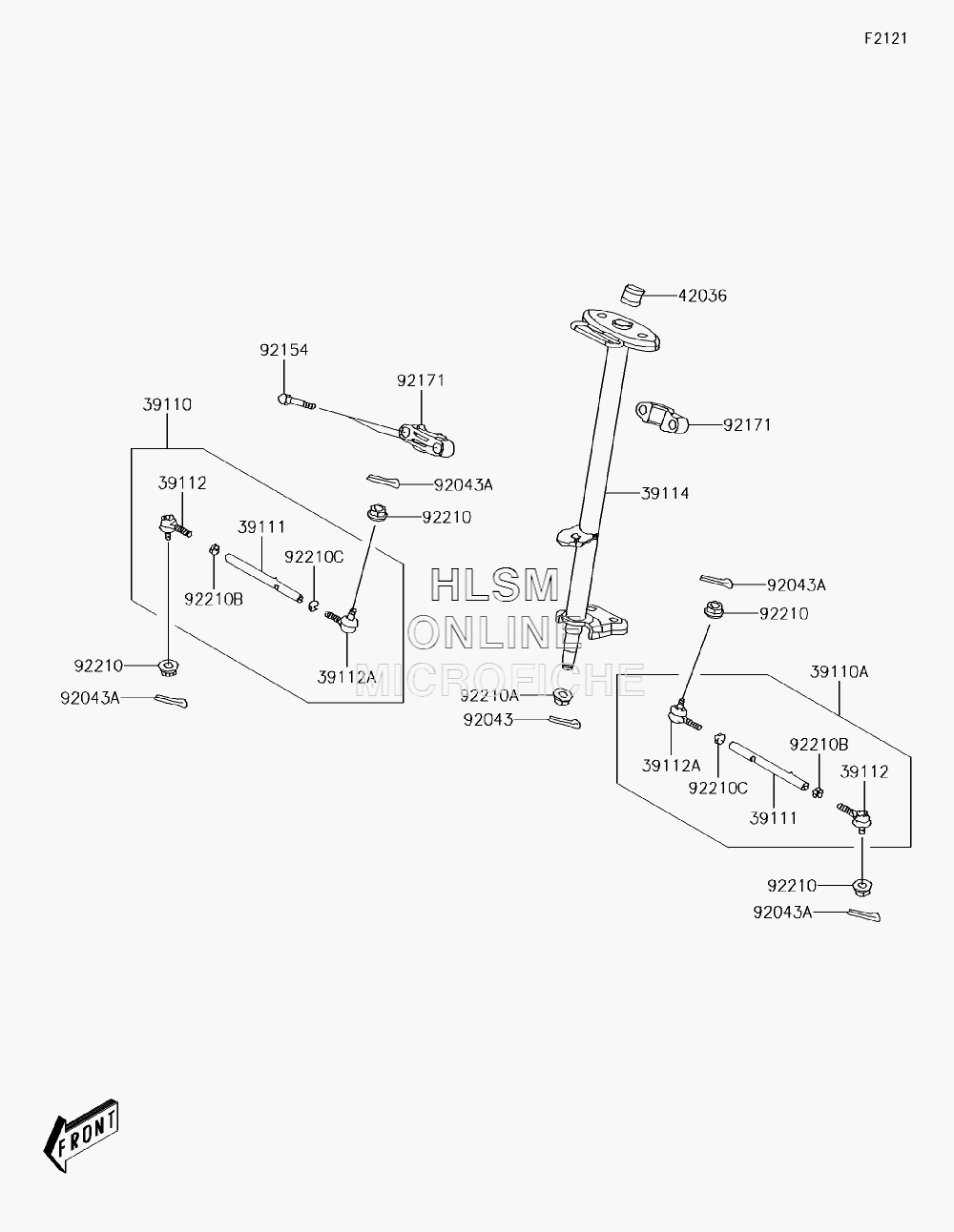

STEERING SHAFT для Kawasaki KFX50 (KSF50BHS) - 2017 года выпуска
-
№АртикулНазвание
-
3911039110-Y003 ROD-ASSY-TIE, RIGHT HANDROD-ASSY-TIE, RIGHT HAND
-
39110A39110-Y004 ROD-ASSY-TIE, LEFT HANDROD-ASSY-TIE, LEFT HAND
-
3911139111-Y001 ROD-TIEROD-TIE
-
3911239112-Y003 RODEND-TIERODEND-TIE
-
39112A39112-Y004 RODEND-TIERODEND-TIE
-
3911439114-Y001 SHAFT-COMP-STRGSHAFT-COMP-STRG
-
4203642036-Y001 SLEEVESLEEVE
-
9204392043-Y009 PIN, 3X25PIN, 3X25
-
92043A92043-Y010 PIN, 2.5X20PIN, 2.5X20
-
9215492154-Y120 BOLT, FLANGE, 8X65BOLT, FLANGE, 8X65
-
9217192171-Y006 CLAMP, STEERING SHAFTCLAMP, STEERING SHAFT
-
9221092210-Y010 NUT, 10MMNUT, 10MM
-
92210A92210-Y012 NUT, 14MMNUT, 14MM
-
92210B92210-Y021 NUT, 10MMNUT, 10MM
-
92210C92210-Y022 NUT, 10MMNUT, 10MM
