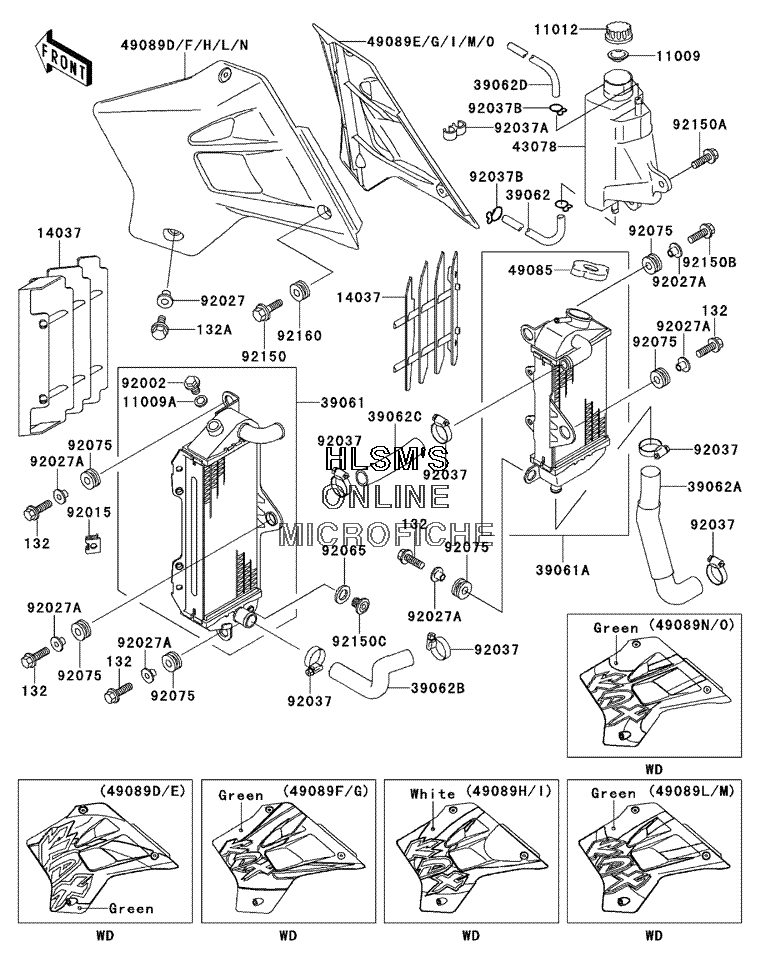

RADIATOR для Kawasaki KDX 220R - 2000 года выпуска
-
№АртикулНазвание
-
1100911009-1145 GASKET, RESERVOIR TANK CAPGASKET, RESERVOIR TANK CAP
-
11009A11009-1152 GASKET, DRAIN BOLTGASKET, DRAIN BOLT
-
1101211012-1084 CAPCAP
-
1403714037-1099-RZ SCREEN (WHITE)SCREEN (WHITE)
-
3906139061-1239 RADIATOR, ASSY. (LEFT)RADIATOR, ASSY. (LEFT)
-
39061A39061-1240 RADIATOR, ASSY. (RIGHT)RADIATOR, ASSY. (RIGHT)
-
3906239062-1423 HOSE, COOLING, 5X9X700HOSE, COOLING, 5X9X700
-
39062A39062-1579 HOSE, COOLING, RADIATOR , PUMP (RIGHT)HOSE, COOLING, RADIATOR , PUMP (RIGHT)
-
39062B39062-1580 HOSE, COOLING, HEAD, RADIATOR (LEFT)HOSE, COOLING, HEAD, RADIATOR (LEFT)
-
39062C39062-1609 HOSE, COOLING, RADIATOR, RADIATORHOSE, COOLING, RADIATOR, RADIATOR
-
39062D39062-1619 HOSE, COOLING, 5X9X368.5HOSE, COOLING, 5X9X368.5
-
4307843078-1142 RESERVOIRRESERVOIR
-
4908549085-1070 CAP, ASSY., PRESSURE, P1.1CAP, ASSY., PRESSURE, P1.1
-
49089L49089-5341-6W SHROUD, ENGINE (LEFT) (L.GREEN)SHROUD, ENGINE (LEFT) (L.GREEN)
-
49089M49089-5342-6W SHROUD, ENGINE (RIGHT) (L.GREEN)SHROUD, ENGINE (RIGHT) (L.GREEN)
-
9200292002-1682 BOLT, RADIATOR DRAINBOLT, RADIATOR DRAIN
-
9201592015-1487 NUTNUT
-
9202792027-1183 COLLARCOLLAR
-
92027A92027-251 COLLAR, L=13.1COLLAR, L=13.1
-
9203792037-1589 CLAMP, COOLING HOSECLAMP, COOLING HOSE
-
92037A92037-1603 CLAMP, HOSECLAMP, HOSE
-
92037B92037-1712 CLAMPCLAMP
-
9206592065-058 GASKET, 10.5X16X1GASKET, 10.5X16X1
-
9207592075-209 DAMPERDAMPER
-
132132Y0620 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132Y0625 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
9215092150-1435 BOLT, 6X12BOLT, 6X12
-
92150A92150-1504 BOLT, FLANGED, 6X14BOLT, FLANGED, 6X14
-
92150B92150-1507 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
92150C92150-1867 BOLT, 10X10BOLT, 10X10
-
9216092160-1167 DAMPERDAMPER
