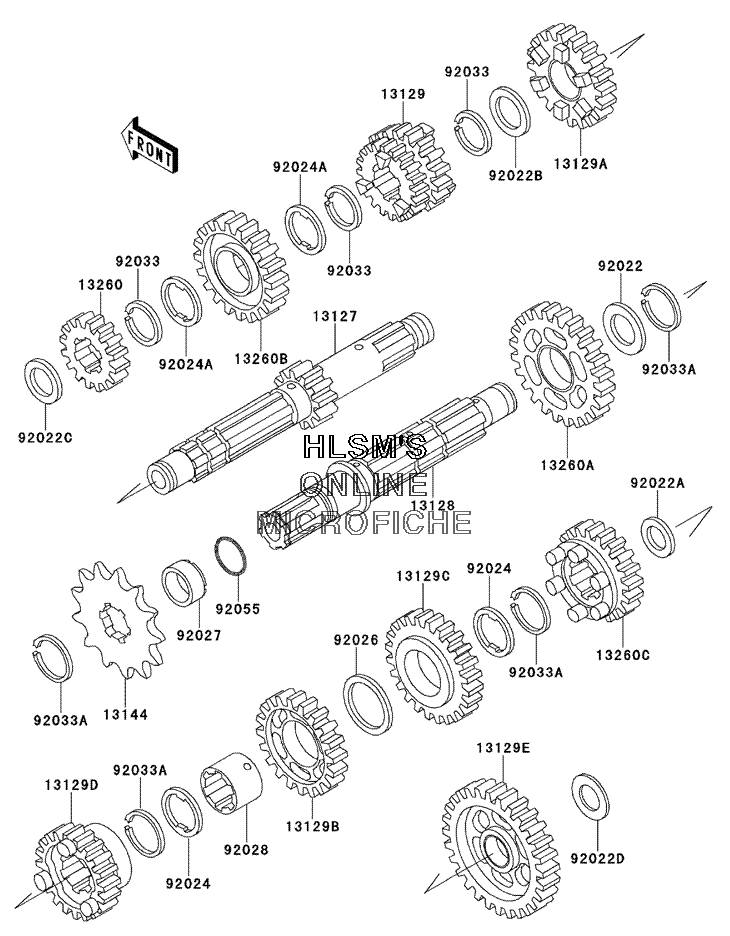

TRANSMISSION для Kawasaki KLX 300R - 2000 года выпуска
-
№АртикулНазвание
-
1312713127-1223 SHAFT, TRANSMISSION INPUT (10 TEETH)SHAFT, TRANSMISSION INPUT (10 TEETH)
-
1312813128-1213 SHAFT, TRANSMISSION OUTPUTSHAFT, TRANSMISSION OUTPUT
-
1312913129-1602 GEAR, INPUT 3RD AND 4TH (18 AND 20 TEETH)GEAR, INPUT 3RD AND 4TH (18 AND 20 TEETH)
-
13129A13129-1603 GEAR, INPUT 5TH (20 TEETH)GEAR, INPUT 5TH (20 TEETH)
-
13129B13129-1650 GEAR, OUTERPUT 3RD (27 TEETH)GEAR, OUTERPUT 3RD (27 TEETH)
-
13129C13129-1651 GEAR, OUTERPUT 4TH (25 TEETH)GEAR, OUTERPUT 4TH (25 TEETH)
-
13129D13129-1653 GEAR, OUTERPUT TOP (19 TEETH)GEAR, OUTERPUT TOP (19 TEETH)
-
13129E13129-1800 GEAR, OUTERPUT LOW (30 TEETH)GEAR, OUTERPUT LOW (30 TEETH)
-
1314413144-1005 SPROCKET, OUTERPUT (14 TEETH)SPROCKET, OUTERPUT (14 TEETH)
-
1326013260-1385 GEAR, INPUT 2ND (15 TEETH)GEAR, INPUT 2ND (15 TEETH)
-
13260A13260-1386 GEAR, OUTERPUT 2ND (30 TEETH)GEAR, OUTERPUT 2ND (30 TEETH)
-
13260B13260-1595 GEAR, INPUT TOP (21 TEETH)GEAR, INPUT TOP (21 TEETH)
-
13260C13260-1596 GEAR, OUTERPUT 5TH (21 TEETH)GEAR, OUTERPUT 5TH (21 TEETH)
-
9202292022-159 WASHER, 25.3X30X0.5WASHER, 25.3X30X0.5
-
92022A92022-1614 WASHER, 17.3X25X0.5WASHER, 17.3X25X0.5
-
92022B92022-198 WASHER, 22.3X27X0.5WASHER, 22.3X27X0.5
-
92022C92022-255 WASHER, 17.3X28X1WASHER, 17.3X28X1
-
92022D92022-270 WASHER, 17.3X30X1.4WASHER, 17.3X30X1.4
-
9202492024-038 WASHER, TOOTHED, 22.5X31X0.5WASHER, TOOTHED, 22.5X31X0.5
-
92024A92024-039 WASHER, TOOTHED, 22.5X27X0.5WASHER, TOOTHED, 22.5X27X0.5
-
9202692026-079 SPACER, 30X38X1.0SPACER, 30X38X1.0
-
9202792027-1800 COLLAR, 25X32X15.3COLLAR, 25X32X15.3
-
9202892028-1016 BUSHING, OUTERPUT GEARBUSHING, OUTERPUT GEAR
-
9203392033-025 RING, SNAP, 20X25.5X1.2RING, SNAP, 20X25.5X1.2
-
92033A92033-026 RING, SNAP, 24MMRING, SNAP, 24MM
-
9205592055-1293 O-RING, 21.5MMO-RING, 21.5MM
