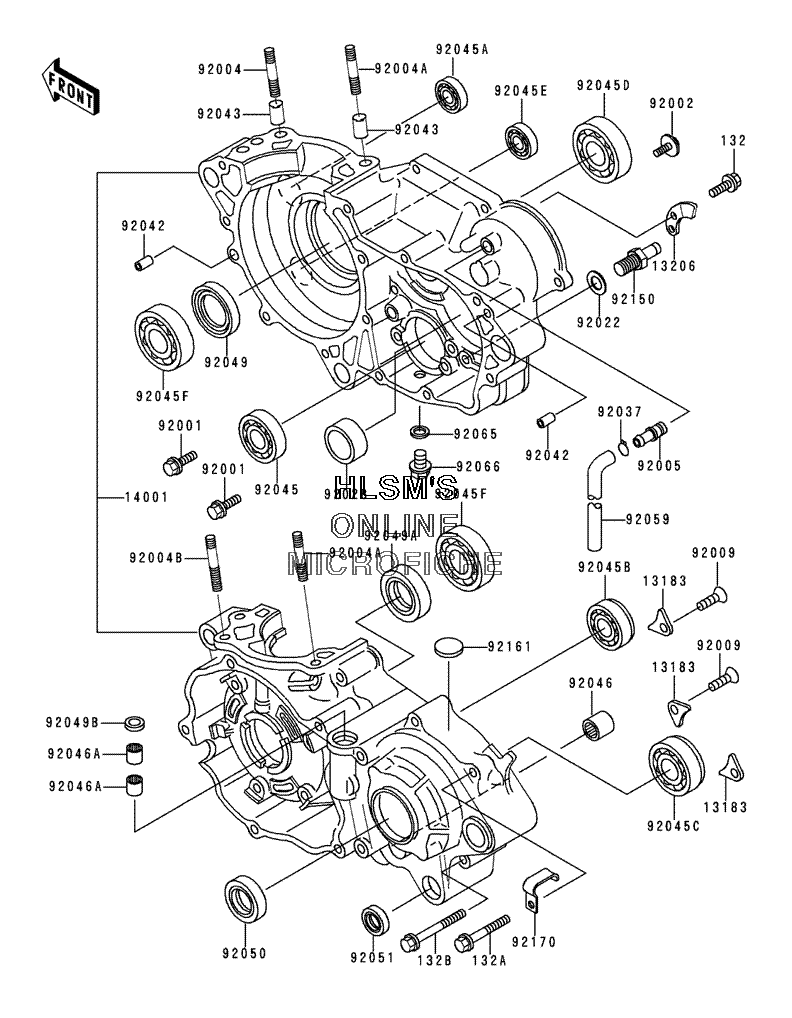

CRANKCASE для Kawasaki KX 250 - 2000 года выпуска
-
№АртикулНазвание
-
132132G0616 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132G0645 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132B132G0675 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
1318313183-1182 PLATEPLATE
-
1320613206-1062 GUIDE, KICKGUIDE, KICK
-
1400114001-1265 SET, CRANKCASESET, CRANKCASE
-
9200192001-1829 BOLT, W/WASHER, 6X14BOLT, W/WASHER, 6X14
-
9200292002-1659 BOLT, 6X16BOLT, 6X16
-
9200492004-1165 STUD, 10X53STUD, 10X53
-
92004A92004-1203 STUD, 10X66STUD, 10X66
-
92004B92004-1250 STUD, 10X41STUD, 10X41
-
9200592005-1210 FITTING, BREATHERFITTING, BREATHER
-
9200992009-1563 SCREW, 6X10SCREW, 6X10
-
9202292022-1415 WASHER, 10.2X18X1.0, SK5WASHER, 10.2X18X1.0, SK5
-
9202892028-131 BUSHING, 26X35X14BUSHING, 26X35X14
-
9203792037-1610 CLAMPCLAMP
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
9204392043-1266 PIN, 11X14X12.3PIN, 11X14X12.3
-
9204592045-1058 BEARING, BALL, 6905ZBEARING, BALL, 6905Z
-
92045A92045-1123 BEARING, BALL, #628BEARING, BALL, #628
-
92045B92045-1233 BEARING, BALLBEARING, BALL
-
92045C92045-1240 BEARING, BALLBEARING, BALL
-
92045D92045-1300 BEARING, BALL, 63/22/25X7BEARING, BALL, 63/22/25X7
-
92045E92045-1345 BEARING, BALLBEARING, BALL
-
92045F92045-1370 BEARING, BALL, TMB3/28JR2C4BEARING, BALL, TMB3/28JR2C4
-
9204692046-037 BEARING, NEEDLE, 7E, HK1412BEARING, NEEDLE, 7E, HK1412
-
92046A92046-1010 BEARING, NEEDLE, HK1210BEARING, NEEDLE, HK1210
-
9204992049-1051 SEAL, OIL, TCJ25457SEAL, OIL, TCJ25457
-
92049A92049-1052 SEAL, OIL, TCJ20407SEAL, OIL, TCJ20407
-
92049B92049-1262 SEAL, OILSEAL, OIL
-
9205092050-033 SEAL, OIL, TB3040SEAL, OIL, TB3040
-
9205192051-005 SEAL, OIL, TB13225.5SEAL, OIL, TB13225.5
-
9205992059-103 TUBE, 6X9X360TUBE, 6X9X360
-
9206592065-058 GASKET, 10.5X16X1, DRAIN PLUGGASKET, 10.5X16X1, DRAIN PLUG
-
9206692066-1437 PLUG, DRAINPLUG, DRAIN
-
9215092150-1803 BOLT, RETURN SPRINGBOLT, RETURN SPRING
-
9216192161-1119 DAMPERDAMPER
-
9217092170-1555 CLAMPCLAMP
