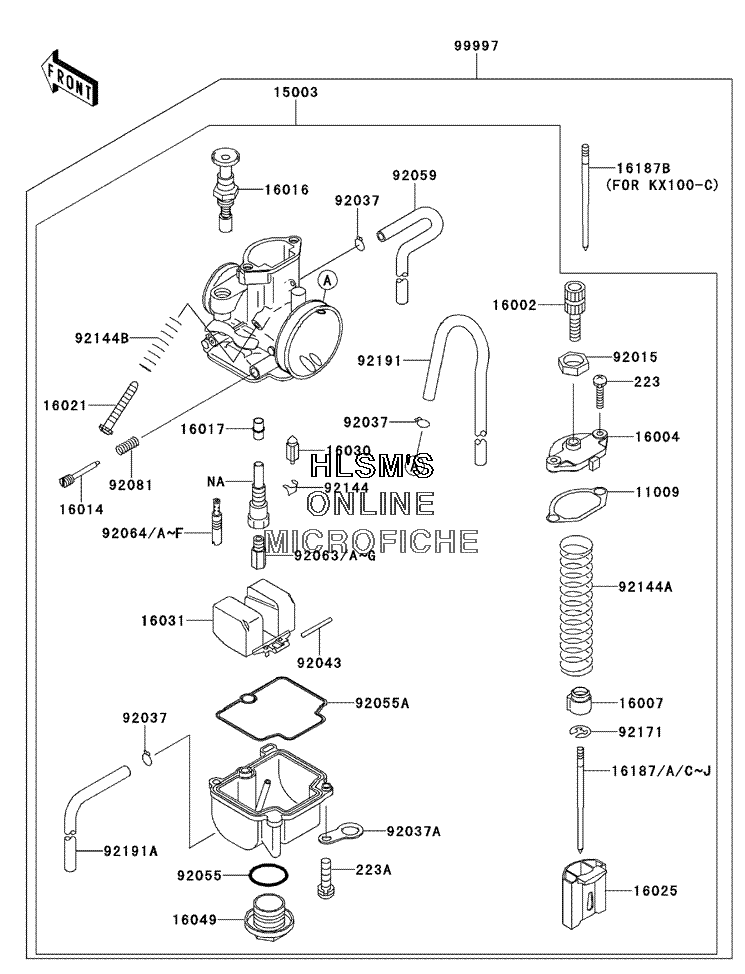

CARBURETOR - OPTIONAL PARTS для Kawasaki KX 80 - 2000 года выпуска
-
№АртикулНазвание
-
1100911009-1759 GASKET, MIXING CHAMBERGASKET, MIXING CHAMBER
-
1500315003-1616 CARBURETOR, ASSY.CARBURETOR, ASSY.
-
1600216002-1056 ADJUSTER, CABLEADJUSTER, CABLE
-
1600416004-1065 CAP, CHAMBER, MIXINGCAP, CHAMBER, MIXING
-
1600716007-1155 SEAT, SPRING, THROTTLE VALVESEAT, SPRING, THROTTLE VALVE
-
1601416014-1058 SCREW, PILOT AIRSCREW, PILOT AIR
-
1601616016-1075 PLUNGER, STARTERPLUNGER, STARTER
-
1601716017-1423 JET, NEEDLEJET, NEEDLE
-
1602116021-1161 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
1602516025-1220 VALVE, THROTTLE, CA3.5VALVE, THROTTLE, CA3.5
-
1603016030-1064 VALVE, FLOATVALVE, FLOAT
-
1603116031-1065 FLOATFLOAT
-
1604916049-1051 COVER, MAIN JETCOVER, MAIN JET
-
1618716187-1144 NEEDLE, JET, NADA 2.355 (OPT)NEEDLE, JET, NADA 2.355 (OPT)
-
16187A16187-1145 NEEDLE, JET, NADB 2.365 (OPT)NEEDLE, JET, NADB 2.365 (OPT)
-
16187B16187-1146 NEEDLE, JET, NADC 2.375NEEDLE, JET, NADC 2.375
-
16187C16187-1147 NEEDLE, JET, NADD 2.385 (OPT)NEEDLE, JET, NADD 2.385 (OPT)
-
16187D16187-1148 NEEDLE, JET, NADE 2.395 (OPT)NEEDLE, JET, NADE 2.395 (OPT)
-
16187E16187-1149 NEEDLE, JET, NAEA 2.355 (OPT)NEEDLE, JET, NAEA 2.355 (OPT)
-
16187F16187-1150 NEEDLE, JET, NAEB 2.365 (OPT)NEEDLE, JET, NAEB 2.365 (OPT)
-
16187G16187-1151 NEEDLE, JET, NAEC 2.375NEEDLE, JET, NAEC 2.375
-
16187H16187-1151 NEEDLE, JET, NAEC 2.375 (OPT)NEEDLE, JET, NAEC 2.375 (OPT)
-
16187I16187-1152 NEEDLE, JET, NAED 2.385 (OPT)NEEDLE, JET, NAED 2.385 (OPT)
-
16187J16187-1153 NEEDLE, JET, NAEE 2.395 (OPT)NEEDLE, JET, NAEE 2.395 (OPT)
-
9201592015-1574 NUT, CABLE ADJUST LOCKNUT, CABLE ADJUST LOCK
-
9203792037-1396 CLAMP, TUBECLAMP, TUBE
-
92037A92037-1969 CLAMP, HOSECLAMP, HOSE
-
9204392043-1207 PIN, FLOATPIN, FLOAT
-
9205592055-1167 O-RING, MAIN JET COVERO-RING, MAIN JET COVER
-
92055A92055-1389 O-RING, FLOAT CHAMBERO-RING, FLOAT CHAMBER
-
9205992059-1941 TUBE, 4X7X360TUBE, 4X7X360
-
223223C0414 SCREW, PAN, WS, CROSSCREW, PAN, WS, CROS
-
223A223C0416 SCREW, PAN, WS, CROSSCREW, PAN, WS, CROS
-
9206392063-1336 JET, MAIN, #130 (OPT)JET, MAIN, #130 (OPT)
-
92063A92063-1337 JET, MAIN, #132 (OPT)JET, MAIN, #132 (OPT)
-
92063B92063-1338 JET, MAIN, #135 (OPT)JET, MAIN, #135 (OPT)
-
92063C92063-1359 JET, MAIN, #138JET, MAIN, #138
-
92063D92063-1360 JET, MAIN, #140 (OPT)JET, MAIN, #140 (OPT)
-
92063E92063-1361 JET, MAIN, #142 (OPT)JET, MAIN, #142 (OPT)
-
92063F92063-1362 JET, MAIN, #145 (OPT)JET, MAIN, #145 (OPT)
-
92063G92063-1363 JET, MAIN, #148 (OPT)JET, MAIN, #148 (OPT)
-
9206492064-1130 JET, PILOT, #52 (OPT)JET, PILOT, #52 (OPT)
-
92064A92064-1139 JET, PILOT, #38 (OPT)JET, PILOT, #38 (OPT)
-
92064B92064-1140 JET, PILOT, #40 (OPT)JET, PILOT, #40 (OPT)
-
92064C92064-1141 JET, PILOT, #42 (OPT)JET, PILOT, #42 (OPT)
-
92064D92064-1142 JET, PILOT, #45JET, PILOT, #45
-
92064E92064-1143 JET, PILOT, #48 (OPT)JET, PILOT, #48 (OPT)
-
92064F92064-1144 JET, PILOT, #50 (OPT)JET, PILOT, #50 (OPT)
-
9208192081-1555 SPRING, ADJUST SCREWSPRING, ADJUST SCREW
-
9214492144-1178 SPRING, FLOAT VALVESPRING, FLOAT VALVE
-
92144A92144-1566 SPRING, THROTTLE VALVESPRING, THROTTLE VALVE
-
92144B92144-1782 SPRING, THROTTLE STOP SCREWSPRING, THROTTLE STOP SCREW
-
9217192171-1323 CLAMPCLAMP
-
9219192191-1243 TUBE, 4X7X560TUBE, 4X7X560
-
92191A92191-1591 TUBE, 4X7X420TUBE, 4X7X420
-
9999799997-1095 KIT, CARBURETORKIT, CARBURETOR
