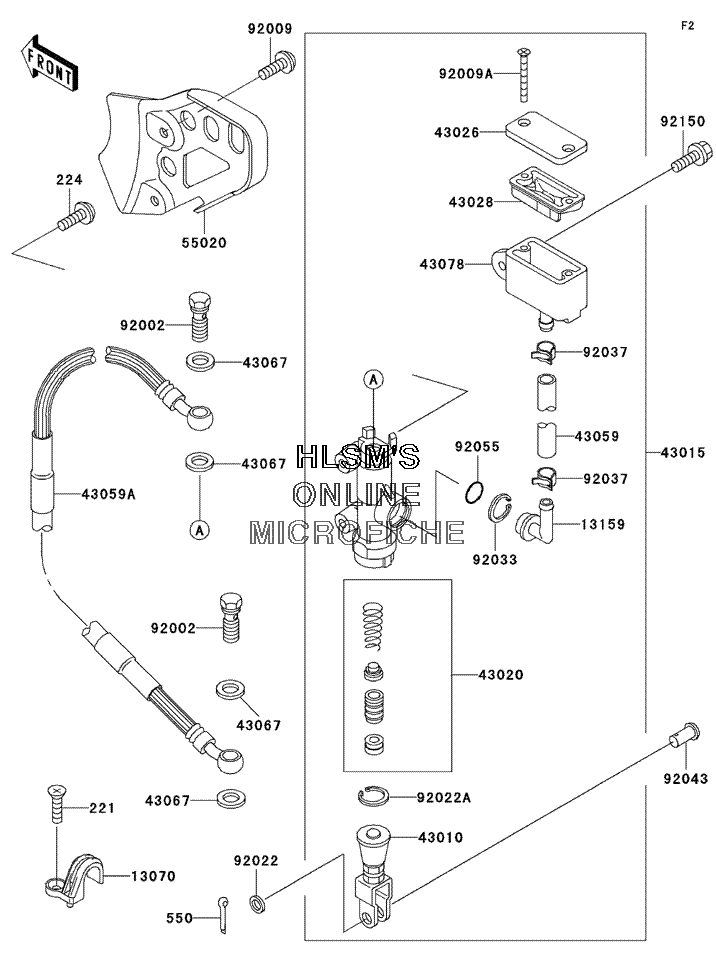

BRAKE - MASTER CYLINDER - REAR для Kawasaki KDX 200 - 2001 года выпуска
-
№АртикулНазвание
-
221221B0510 SCREW, CSK, CROSSCREW, CSK, CROS
-
224224B0614 SCREW, PAN, WP, CROSSCREW, PAN, WP, CROS
-
550550D2015 PIN, COTTER, 2.0X15PIN, COTTER, 2.0X15
-
1307013070-1275 GUIDE, HOSEGUIDE, HOSE
-
1315913159-1056 CONNECTORCONNECTOR
-
4301043010-1068 ROD, ASSY., BRAKEROD, ASSY., BRAKE
-
4301543015-1515 CYLINDER, ASSY., MASTER, REARCYLINDER, ASSY., MASTER, REAR
-
4302043020-1094 PISTON, COMP, BRAKEPISTON, COMP, BRAKE
-
4302643026-1075 CAP, BRAKECAP, BRAKE
-
4302843028-1067 DIAPHRAGMDIAPHRAGM
-
4305943059-1561 HOSE, BRAKEHOSE, BRAKE
-
43059A43059-1863 HOSE, BRAKE, REARHOSE, BRAKE, REAR
-
4306743067-001 WASHER, 10.5X15X1.5WASHER, 10.5X15X1.5
-
4307843078-1122 RESERVOIRRESERVOIR
-
5502055020-1487 GUARD, REAR M/CYLINDER AND OIL TANKGUARD, REAR M/CYLINDER AND OIL TANK
-
9200292002-1888 BOLT, OIL, L=23BOLT, OIL, L=23
-
9200992009-1286 SCREW, 6X10 (WHITE)SCREW, 6X10 (WHITE)
-
92009A92009-1596 SCREW, 4X40SCREW, 4X40
-
9202292022-1028 WASHER, 8.5X13X1WASHER, 8.5X13X1
-
92022A92022-1601 WASHER, CIRCRIPWASHER, CIRCRIP
-
9203392033-1186 RING, SNAP, 20.5MMRING, SNAP, 20.5MM
-
9203792037-1710 CLAMPCLAMP
-
9204392043-1039 PINPIN
-
9205592055-1251 O-RING, MASTER CYLINDERO-RING, MASTER CYLINDER
-
9215092150-1339 BOLT, 6X20BOLT, 6X20
