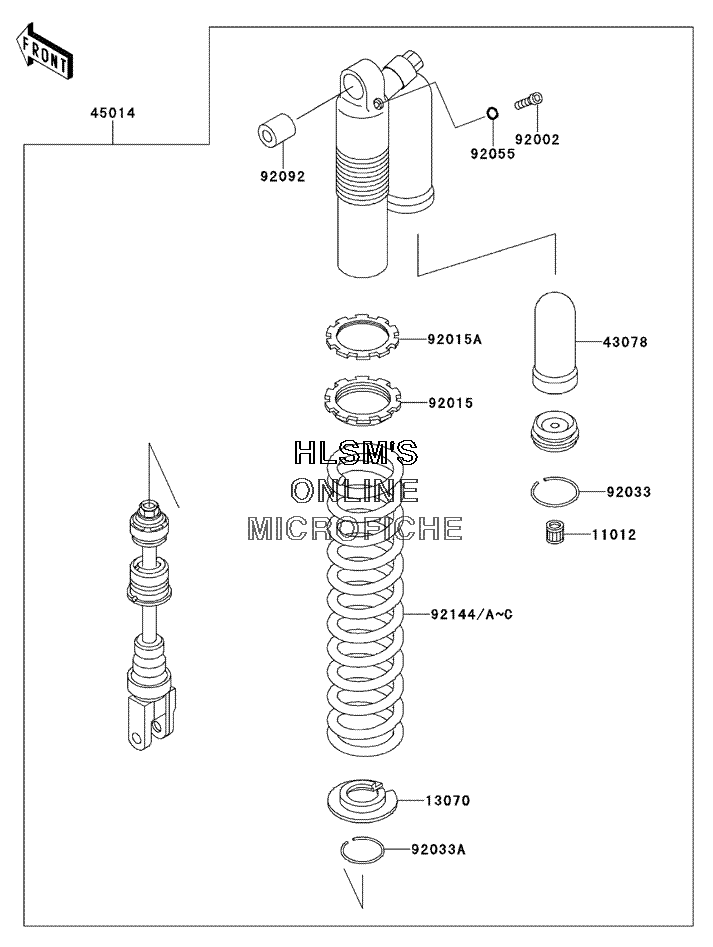

SUSPENSION - SHOCK ABSORBER для Kawasaki KDX 220R - 2001 года выпуска
-
№АртикулНазвание
-
1101211012-1391 CAP, VALVE AIRCAP, VALVE AIR
-
1307013070-1165 GUIDE, SPRINGGUIDE, SPRING
-
4307843078-1094 RESERVOIR, SHOCKABSORBERRESERVOIR, SHOCKABSORBER
-
4501445014-1596-W1 SHOCKABSORBER (BLUE) NO.1SHOCKABSORBER (BLUE) NO.1
-
9200292002-1955 BOLT, DRAINBOLT, DRAIN
-
9201592015-1703 NUT, SPRING ADJUSTNUT, SPRING ADJUST
-
92015A92015-1704 NUT, SPRING ADJUST LOCKNUT, SPRING ADJUST LOCK
-
9203392033-1209 RING, SNAPRING, SNAP
-
92033A92033-1228 RING, SNAP, SHOCKABSORBERRING, SNAP, SHOCKABSORBER
-
9205592055-1383 O-RINGO-RING
-
9209292092-1062 BUSHING, RUBBER, SHOCKABSORBERBUSHING, RUBBER, SHOCKABSORBER
-
9214492144-1830-W1 SPRING, SHOCKABSORBER, K=5.0, BLUSPRING, SHOCKABSORBER, K=5.0, BLU
-
92144A92144-1837-W1 SPRING, SHOCKABSORBER, K=4.8, BLU (OPT)SPRING, SHOCKABSORBER, K=4.8, BLU (OPT)
-
92144B92144-1838-W1 SPRING, SHOCKABSORBER, K=5.2, BLU (OPT)SPRING, SHOCKABSORBER, K=5.2, BLU (OPT)
-
92144C92144-1839-W1 SPRING, SHOCKABSORBER, K=5.4, BLU (OPT)SPRING, SHOCKABSORBER, K=5.4, BLU (OPT)
