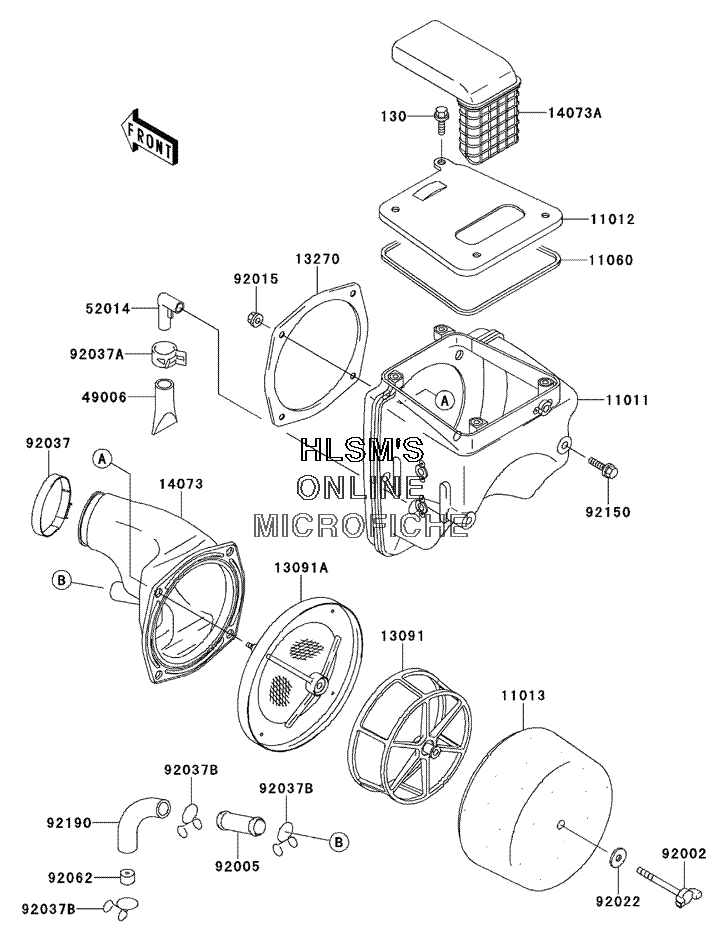

AIR CLEANER для Kawasaki KLX 300R - 2001 года выпуска
-
№АртикулНазвание
-
130130G0612 BOLT, FLANGED, 6X12BOLT, FLANGED, 6X12
-
1101111011-1399 CASE, AIR FILTERCASE, AIR FILTER
-
1101211012-1834 CAP, AIR FILTERCAP, AIR FILTER
-
1101311013-1260 ELEMENT, AIR FILTERELEMENT, AIR FILTER
-
1106011060-1323 GASKET, AIR FILTER CASEGASKET, AIR FILTER CASE
-
1309113091-1454 HOLDER, ELEMENTHOLDER, ELEMENT
-
13091A13091-1835 HOLDER, ELEMENTHOLDER, ELEMENT
-
1327013270-1284 PLATE, DUCT FITTINGPLATE, DUCT FITTING
-
1407314073-1566 DUCT, AIR FILTERDUCT, AIR FILTER
-
14073A14073-1588 DUCT, AIR INTAKE (US ONLY)DUCT, AIR INTAKE (US ONLY)
-
4900649006-1211 BOOTBOOT
-
5201452014-1083 ELBOWELBOW
-
9200292002-1719 BOLT, WINGBOLT, WING
-
9200592005-1236 FITTINGFITTING
-
9201592015-1656 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
-
9202292022-125 WASHER, 6.5X20X1.6WASHER, 6.5X20X1.6
-
9203792037-1554 CLAMPCLAMP
-
92037A92037-2082 CLAMPCLAMP
-
92037B92037-213 CLAMP, TUBECLAMP, TUBE
-
9206292062-1076 NOZZLENOZZLE
-
9215092150-1339 BOLT, 6X20BOLT, 6X20
-
9219092190-1397 TUBE, BREATHERTUBE, BREATHER
