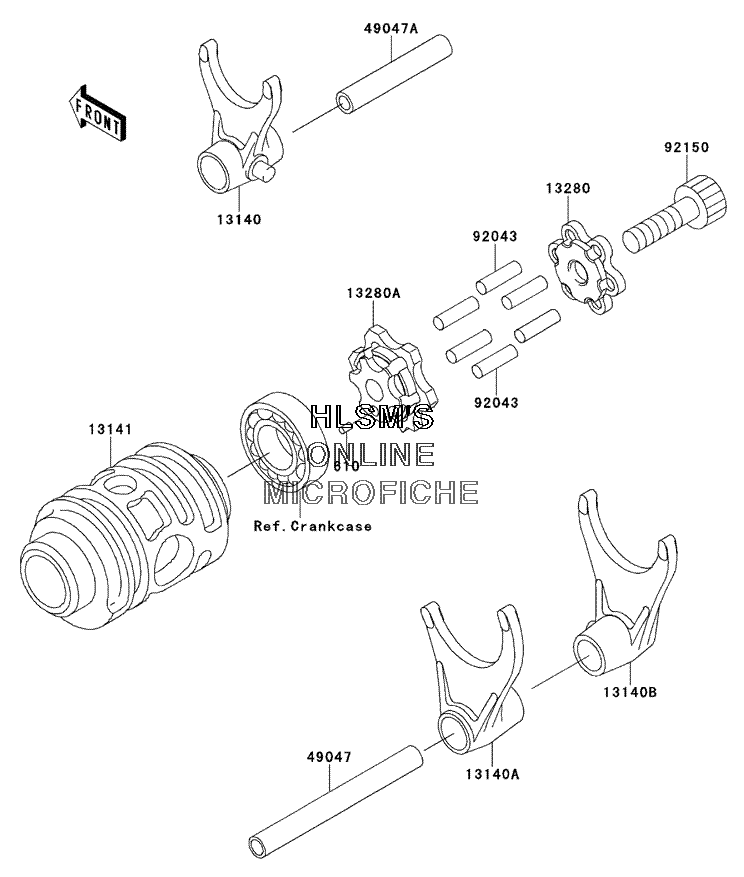

GEAR CHANGE DRUM W/ SHIFT FORK(S) для Kawasaki KX 125 - 2001 года выпуска
-
№АртикулНазвание
-
610610A0408 ROLLER, 4X8ROLLER, 4X8
-
1314013140-1251 FORK, SHIFT, 2ND AND 3RDFORK, SHIFT, 2ND AND 3RD
-
13140A13140-1252 FORK, SHIFT, LOW AND 4THFORK, SHIFT, LOW AND 4TH
-
13140B13140-1253 FORK, SHIFT, 5TH AND TOPFORK, SHIFT, 5TH AND TOP
-
1314113141-1188 DRUM, CHANGEDRUM, CHANGE
-
1328013280-1182 HOLDERHOLDER
-
13280A13280-1223 HOLDERHOLDER
-
4904749047-1086 ROD, SHIFT, L=94ROD, SHIFT, L=94
-
49047A49047-1087 ROD, SHIFT, L=77.5ROD, SHIFT, L=77.5
-
9204392043-1444 PIN, 17.9X5.0PIN, 17.9X5.0
-
9215092150-1604 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
