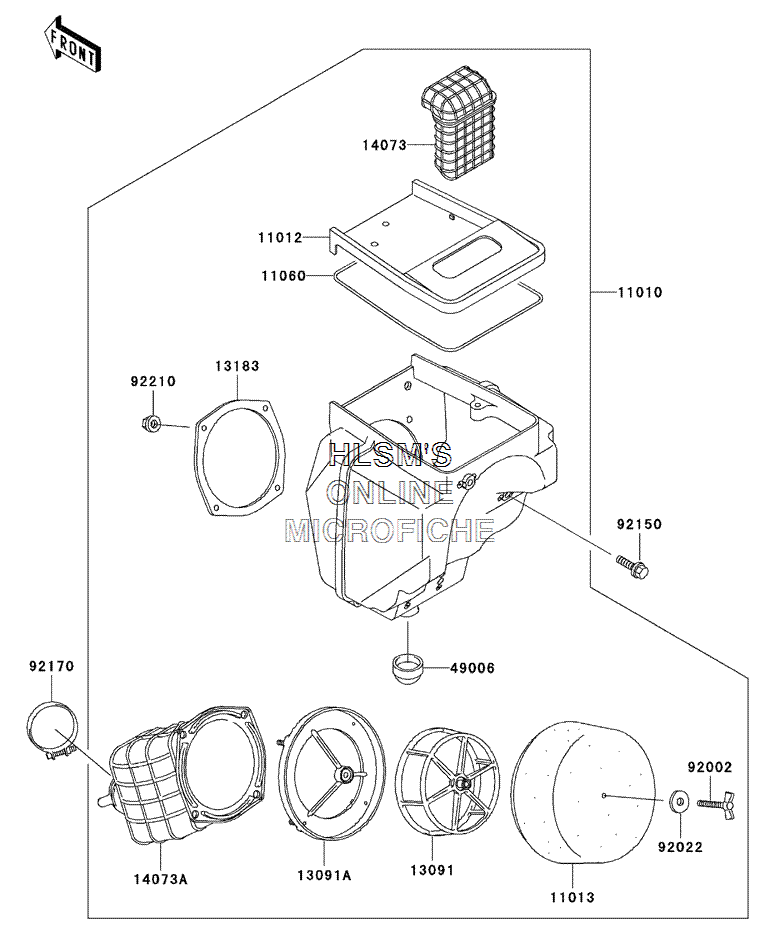

AIR CLEANER для Kawasaki KDX 220R - 2002 года выпуска
-
№АртикулНазвание
-
1101011010-1575 FILTER, ASSY., AIRFILTER, ASSY., AIR
-
1101211012-1913 CAP, AIR FILTERCAP, AIR FILTER
-
1101311013-1260 ELEMENT, AIR FILTERELEMENT, AIR FILTER
-
1106011060-1664 GASKET, AIR FILTERGASKET, AIR FILTER
-
1309113091-1454 HOLDER, ELEMENTHOLDER, ELEMENT
-
13091A13091-1951 HOLDERHOLDER
-
1318313183-1046 PLATE, DUCT FITTINGPLATE, DUCT FITTING
-
1407314073-1577 DUCT, AIR INLETDUCT, AIR INLET
-
14073A14073-1597 DUCT, AIR FILTERDUCT, AIR FILTER
-
4900649006-1248 BOOTBOOT
-
9200292002-1719 BOLT, WINGBOLT, WING
-
9202292022-125 WASHER, 6.5X20X1.6WASHER, 6.5X20X1.6
-
9215092150-1892 BOLT, 6X20BOLT, 6X20
-
9217092170-1526 CLAMP, 65MMCLAMP, 65MM
-
9221092210-1164 NUTNUT
