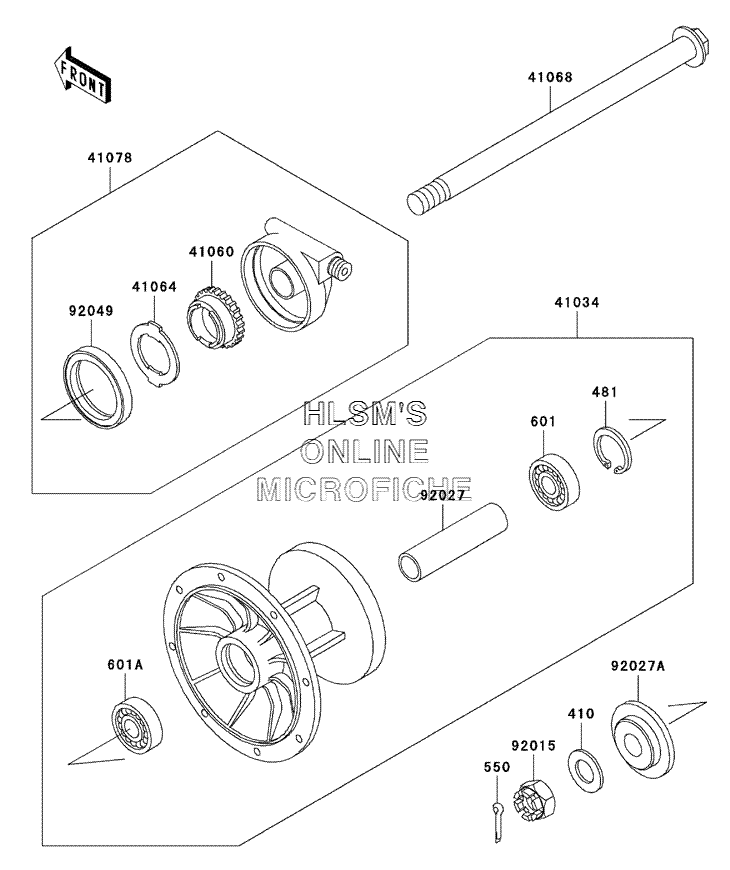

FRONT HUB для Kawasaki KLR650 - 2002 года выпуска
-
№АртикулНазвание
-
410410B1400 WASHER, PLAIN, SMALL, 14MMWASHER, PLAIN, SMALL, 14MM
-
481481J3500 CIRCLIP, TYPE, C, 35MMCIRCLIP, TYPE, C, 35MM
-
550550D3025 PIN, COTTER, 3.0X25PIN, COTTER, 3.0X25
-
601601B6202UG BEARING, BALL, #6202UGBEARING, BALL, #6202UG
-
601A601B6203UG BEARING, BALL, #6203UGBEARING, BALL, #6203UG
-
4103441034-1153 DRUM, ASSY, FRONT BRAKEDRUM, ASSY, FRONT BRAKE
-
4106041060-1101 GEAR, METER SCREW (24 TEETH)GEAR, METER SCREW (24 TEETH)
-
4106441064-1051 RECEIVER, SPEEDOMETERRECEIVER, SPEEDOMETER
-
4106841068-1236 AXLE, FRONTAXLE, FRONT
-
4107841078-1051 CASE, ASSY, METER GEARCASE, ASSY, METER GEAR
-
9201592015-1765 NUT, CASTLE, 14MMNUT, CASTLE, 14MM
-
9202792027-1683 COLLAR, FRONT BRAKE DRUM, L=79COLLAR, FRONT BRAKE DRUM, L=79
-
92027A92027-1864 COLLARCOLLAR
-
9204992049-1172 SEAL, OIL, METER GEAR CASESEAL, OIL, METER GEAR CASE
