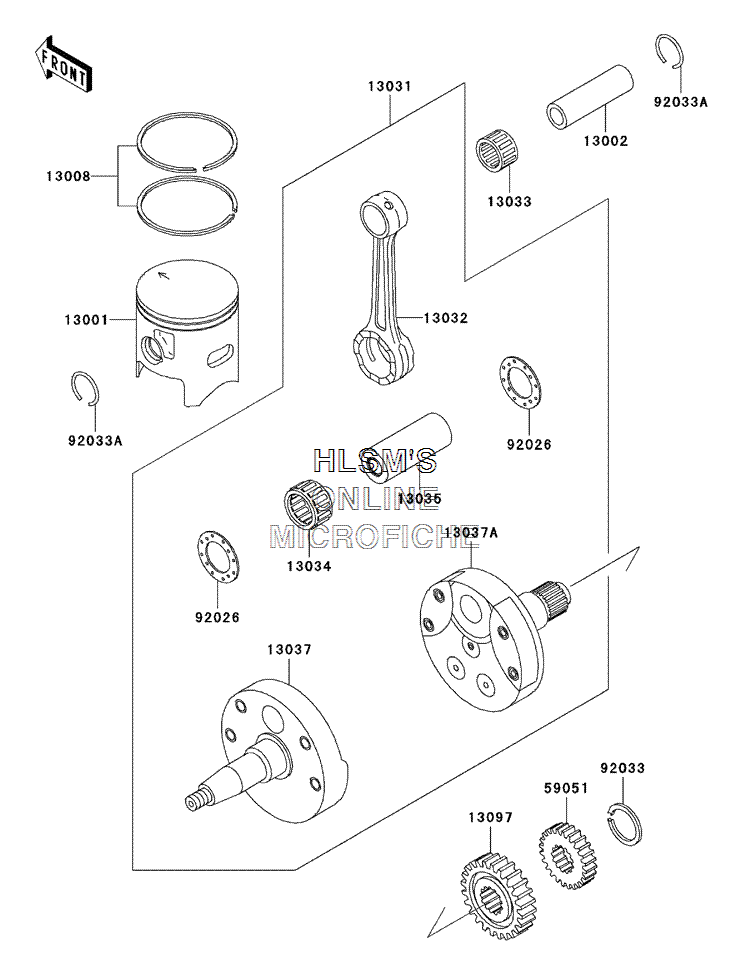

CRANKSHAFT - PISTON(S) для Kawasaki KX 250 - 2002 года выпуска
-
№АртикулНазвание
-
1300113001-1604 PISTON, ENGINE, SIZEBPISTON, ENGINE, SIZEB
-
1300213002-1098 PIN, PISTONPIN, PISTON
-
1300813008-1173 RING, SET, PISTONRING, SET, PISTON
-
1303113031-1495 CRANKSHAFT, COMPCRANKSHAFT, COMP
-
1303213032-1279 ROD, CONNECTING, SCM420KROD, CONNECTING, SCM420K
-
1303313033-1010 BEARING, NEEDLE, KBK18X22X23.8XBEARING, NEEDLE, KBK18X22X23.8X
-
1303413034-1112 BEARING, BIG END, B4BEARING, BIG END, B4
-
1303513035-1089 PIN, CRANKPIN, CRANK
-
1303713037-1611 CRANKSHAFT (LEFT)CRANKSHAFT (LEFT)
-
13037A13037-1613 CRANKSHAFT (RIGHT)CRANKSHAFT (RIGHT)
-
1309713097-1429 GEAR, PRIMARY SPUR (21 TEETH)GEAR, PRIMARY SPUR (21 TEETH)
-
5905159051-1248 GEAR, SPUR (27 TEETH)GEAR, SPUR (27 TEETH)
-
9202692026-1607 SPACER, 24X42X1.6SPACER, 24X42X1.6
-
9203392033-025 RING, SNAP, 20X25.5X1.2RING, SNAP, 20X25.5X1.2
-
92033A92033-1267 RING, SNAP, PISTON PINRING, SNAP, PISTON PIN
