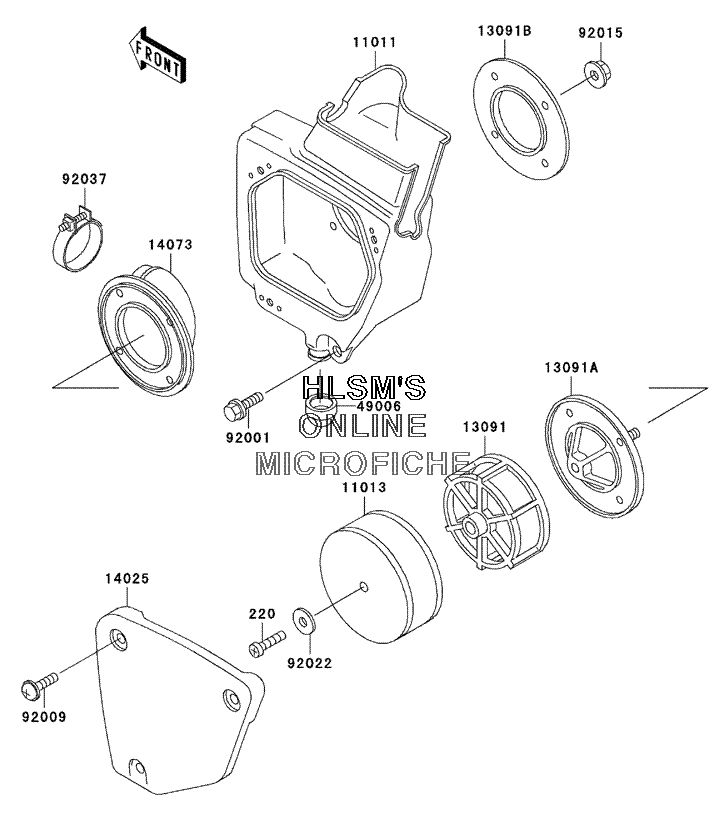

AIR CLEANER для Kawasaki KX 60 - 2002 года выпуска
-
№АртикулНазвание
-
220220B0625 SCREW, PAN, CROS, 6X25SCREW, PAN, CROS, 6X25
-
1101111011-1178 CASE, AIR FILTERCASE, AIR FILTER
-
1101311013-1121 ELEMENT, AIR FILTERELEMENT, AIR FILTER
-
1309113091-1336 HOLDER, ELEMENTHOLDER, ELEMENT
-
13091A13091-1337 HOLDER, AIR FILTER CASEHOLDER, AIR FILTER CASE
-
13091B13091-1338 HOLDER, AIR FILTER CASEHOLDER, AIR FILTER CASE
-
1402514025-1958 COVER, AIR FILTER CASECOVER, AIR FILTER CASE
-
1407314073-1191 DUCT, AIR FILTERDUCT, AIR FILTER
-
4900649006-1156 BOOT, AIR FILTERBOOT, AIR FILTER
-
9200192001-1517 BOLT, W/WASHER, 6X12BOLT, W/WASHER, 6X12
-
9200992009-1287 SCREW, 6X14 (WHITE)SCREW, 6X14 (WHITE)
-
9201592015-1259 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
-
9202292022-125 WASHER, 6.5X20X1.6WASHER, 6.5X20X1.6
-
9203792037-1172 CLAMPCLAMP
