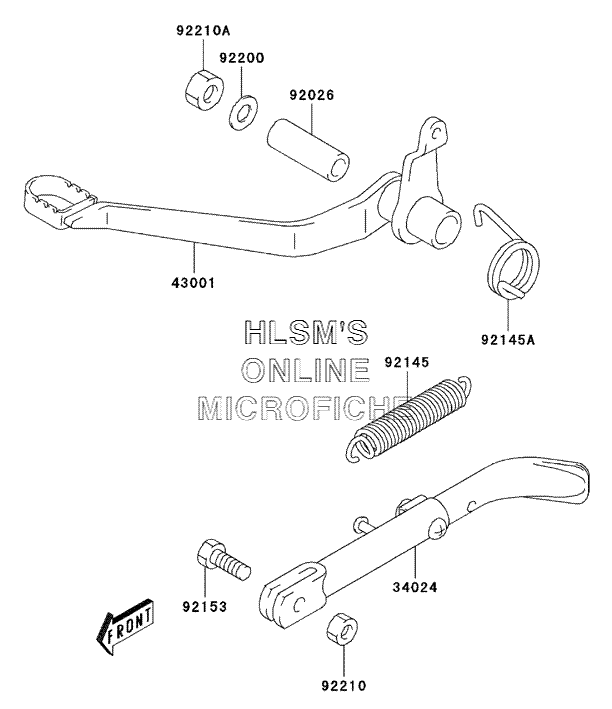

BRAKE PEDAL для Kawasaki KDX 50 - 2003 года выпуска
-
№АртикулНазвание
-
3402434024-S005-503 STAND, SIDE (BLACK)STAND, SIDE (BLACK)
-
4300143001-S005 LEVER, BRAKELEVER, BRAKE
-
9202692026-S109 SPACER, BRAKE PEDALSPACER, BRAKE PEDAL
-
9214592145-S119 SPRINGSPRING
-
92145A92145-S120 SPRING, BRAKE PEDAL RETURNSPRING, BRAKE PEDAL RETURN
-
9215392153-S318 BOLT, 8X22BOLT, 8X22
-
9220092200-S173 WASHER, 10.5X22X1.6WASHER, 10.5X22X1.6
-
9221092210-S051 NUTNUT
-
92210A92210-S117 NUT, BRAKE PEDALNUT, BRAKE PEDAL
