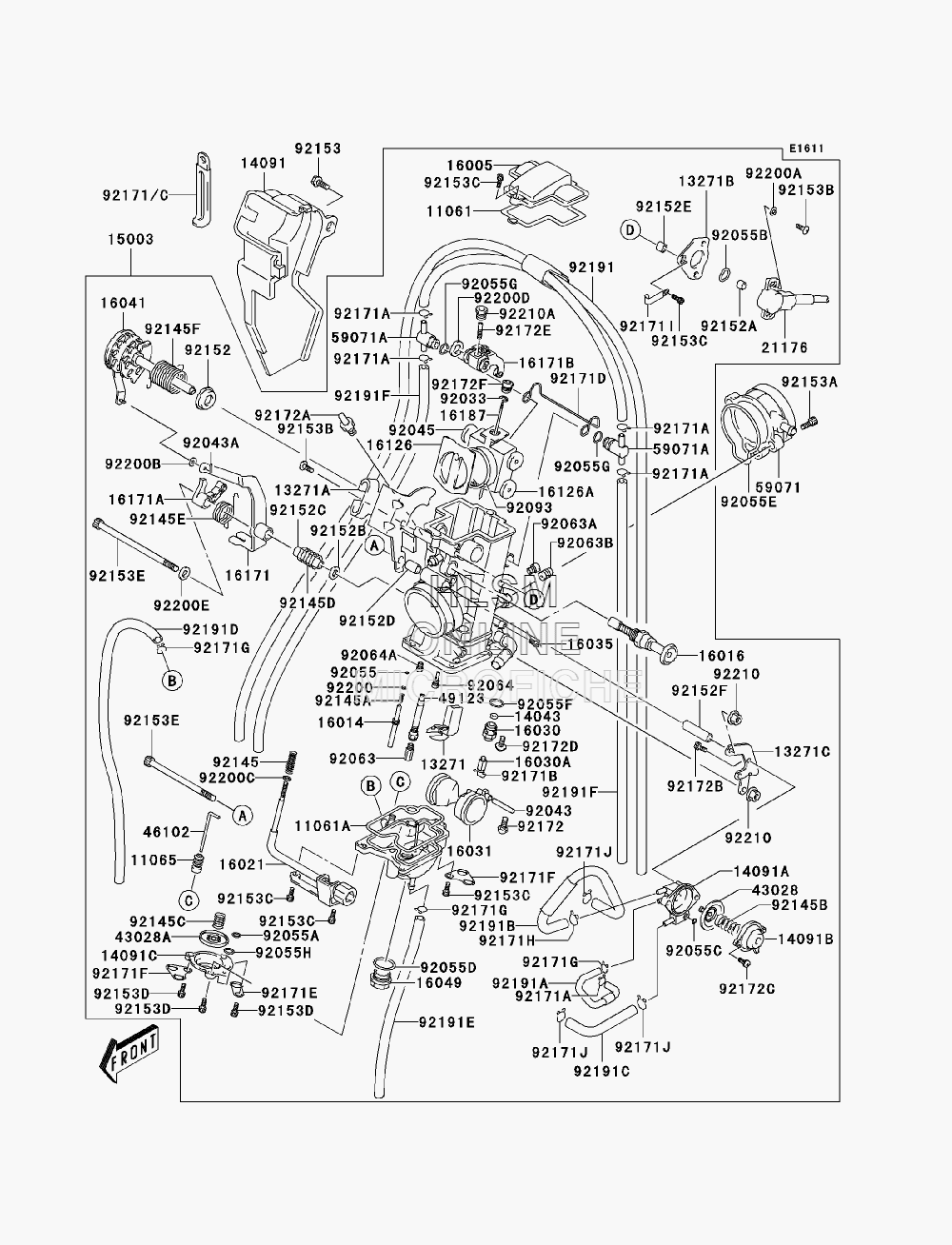

CARBURETOR для Kawasaki KLX 400R (KLX400-B1) - 2003 года выпуска
-
№АртикулНазвание
-
1106111061-S090 GASKET, TOP COVERGASKET, TOP COVER
-
11061A11061-S092 GASKETGASKET
-
1106511065-S056 CAPCAP
-
1327113271-S064 PLATEPLATE
-
13271A13271-S065 PLATEPLATE
-
13271B13271-S066 PLATEPLATE
-
13271C13271-S067 PLATEPLATE
-
1404314043-S005 FILTERFILTER
-
1409114091-S109 COVERCOVER
-
14091A14091-S112 COVER, DIAPHRAGMCOVER, DIAPHRAGM
-
14091B14091-S113 COVERCOVER
-
14091C14091-S114 COVERCOVER
-
1500315003-S011 CARBURETOR-ASSYCARBURETOR-ASSY
-
1600516005-S008 TOP-CHAMBERTOP-CHAMBER
-
1601416014-S007 SCREW-PILOT AIRSCREW-PILOT AIR
-
1601616016-S009 PLUNGERPLUNGER
-
1602116021-S007 SCREW-THROTTLE STOPSCREW-THROTTLE STOP
-
1603016030-S009 VALVE-FLOATVALVE-FLOAT
-
16030A16030-S010 VALVE-FLOATVALVE-FLOAT
-
1603116031-S007 FLOATFLOAT
-
1603516035-S005 JET-AIR, #90JET-AIR, #90
-
1604116041-S001 SHAFT-CARBURETORSHAFT-CARBURETOR
-
1604916049-S001 COVER-MAIN JETCOVER-MAIN JET
-
1612616126-S012 VALVEVALVE
-
16126A16126-S013 VALVE, THROTTLEVALVE, THROTTLE
-
1617116171-S002 LINK, LEVERLINK, LEVER
-
16171A16171-S003 LINK, LEVERLINK, LEVER
-
16171B16171-S004 LINK, ARMLINK, ARM
-
1618716187-S010 NEEDLE-JETNEEDLE-JET
-
2117621176-S005 SENSOR, THROTTLESENSOR, THROTTLE
-
4302843028-S012 DIAPHRAGMDIAPHRAGM
-
43028A43028-S013 DIAPHRAGMDIAPHRAGM
-
4610246102-S005 RODROD
-
4912349123-S007 HOLDER-MAIN JETHOLDER-MAIN JET
-
5907159071-S006 JOINT, AIR CLEANERJOINT, AIR CLEANER
-
59071A59071-S007 JOINTJOINT
-
9203392033-S054 RING-SNAPRING-SNAP
-
9204392043-S014 PIN, FLOATPIN, FLOAT
-
92043A92043-S054 PINPIN
-
9204592045-S062 ROLLERROLLER
-
9205592055-S026 RING-ORING-O
-
92055A92055-S027 RING-ORING-O
-
92055B92055-S028 RING-ORING-O
-
92055C92055-S081 RING-ORING-O
-
92055D92055-S084 RING-ORING-O
-
92055E92055-S085 RING-O, AIR CLEANERRING-O, AIR CLEANER
-
92055F92055-S086 RING-ORING-O
-
92055G92055-S087 RING-ORING-O
-
92055H92055-S088 RING-ORING-O
-
9206392063-S012 JET-MAIN, #142JET-MAIN, #142
-
92063A92063-S013 JET-MAIN, #200JET-MAIN, #200
-
92063B92063-S014 JET-MAIN, #60JET-MAIN, #60
-
9206492064-S010 JET-PILOT, #45JET-PILOT, #45
-
92064A92064-S011 JET-PILOT, #65JET-PILOT, #65
-
9209392093-S048 SEALSEAL
-
9214592145-S142 SPRINGSPRING
-
92145A92145-S143 SPRINGSPRING
-
92145B92145-S144 SPRINGSPRING
-
92145C92145-S145 SPRINGSPRING
-
92145D92145-S146 SPRINGSPRING
-
92145E92145-S147 SPRINGSPRING
-
92145F92145-S148 SPRINGSPRING
-
9215292152-S004 COLLARCOLLAR
-
92152A92152-S005 COLLARCOLLAR
-
92152B92152-S006 COLLARCOLLAR
-
92152C92152-S007 COLLARCOLLAR
-
92152D92152-S008 COLLARCOLLAR
-
92152E92152-S009 COLLARCOLLAR
-
92152F92152-S010 COLLARCOLLAR
-
9215392153-S161 BOLTBOLT
-
92153A92153-S256 BOLTBOLT
-
92153B92153-S358 BOLT, 4X8BOLT, 4X8
-
92153C92153-S359 BOLTBOLT
-
92153D92153-S360 BOLTBOLT
-
92153E92153-S361 BOLTBOLT
-
9217192171-S012 CLAMP, CARB OVERFLOW HOSECLAMP, CARB OVERFLOW HOSE
-
92171A92171-S024 CLAMPCLAMP
-
92171B92171-S039 CLAMPCLAMP
-
92171C92171-S081 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
92171D92171-S118 CLAMPCLAMP
-
92171E92171-S119 CLAMPCLAMP
-
92171F92171-S120 CLAMPCLAMP
-
92171G92171-S123 CLAMPCLAMP
-
92171H92171-S124 CLAMPCLAMP
-
92171I92171-S126 CLAMPCLAMP
-
92171J92171-S127 CLAMPCLAMP
-
9217292172-S083 SCREWSCREW
-
92172A92172-S213 SCREW, STOPSCREW, STOP
-
92172B92172-S215 SCREWSCREW
-
92172C92172-S220 SCREWSCREW
-
92172D92172-S221 SCREWSCREW
-
92172E92172-S222 SCREWSCREW
-
92172F92172-S223 SCREWSCREW
-
9219192191-S077 TUBETUBE
-
92191A92191-S078 TUBETUBE
-
92191B92191-S079 TUBETUBE
-
92191C92191-S080 TUBETUBE
-
92191D92191-S082 TUBETUBE
-
92191E92191-S083 TUBETUBE
-
92191F92191-S084 TUBETUBE
-
9220092200-S043 WASHERWASHER
-
92200A92200-S044 WASHERWASHER
-
92200B92200-S202 WASHERWASHER
-
92200C92200-S203 WASHERWASHER
-
92200D92200-S209 WASHERWASHER
-
92200E92200-S210 WASHERWASHER
-
9221092210-S139 NUTNUT
-
92210A92210-S140 NUTNUT
