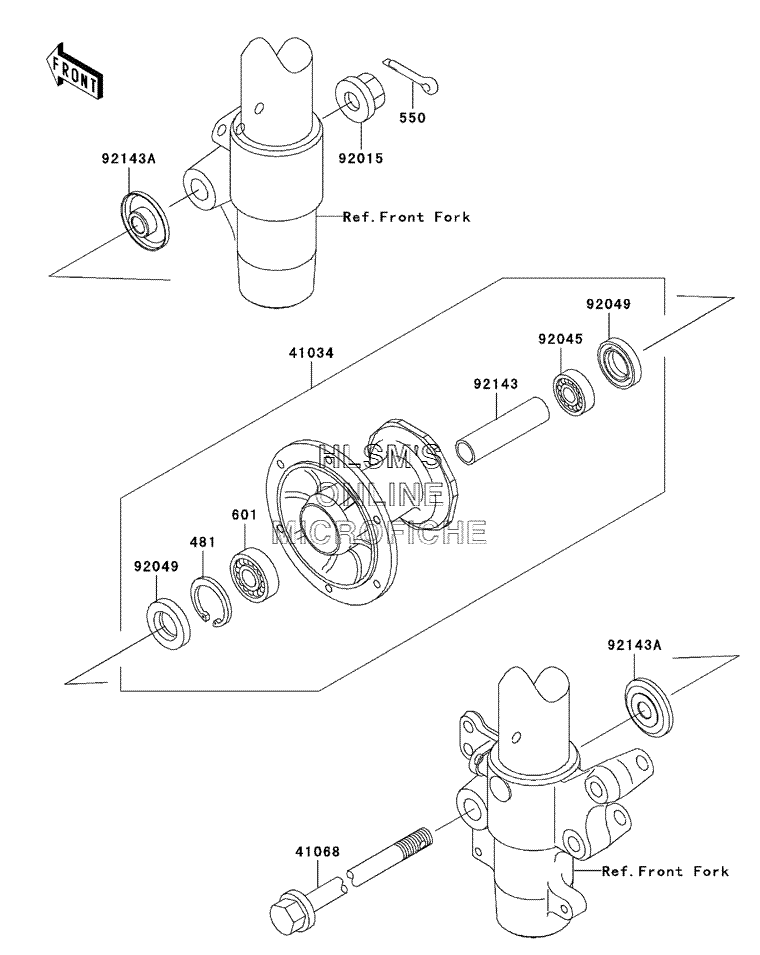

FRONT HUB для Kawasaki KX 100 - 2003 года выпуска
-
№АртикулНазвание
-
481481J3700 CIRCLIP, TYPE, C, 37MMCIRCLIP, TYPE, C, 37MM
-
550550D2520 PIN, COTTER, 2.5X20PIN, COTTER, 2.5X20
-
601601B6301UU BEARING, BALL, #6201UUC3BEARING, BALL, #6201UUC3
-
4103441034-1310 DRUM, ASSY, FRONT BRAKEDRUM, ASSY, FRONT BRAKE
-
4106841068-1333 AXLE, FRONTAXLE, FRONT
-
9201592015-1433 NUT, FLANGED, 12MMNUT, FLANGED, 12MM
-
9204592045-1062 BEARING, BALL, TMB201LLUC3/2ABEARING, BALL, TMB201LLUC3/2A
-
9204992049-1257 SEAL, OIL, TC20376.5SEAL, OIL, TC20376.5
-
9214392143-1935 COLLAR, FRONT BRAKE DRUM, L=76COLLAR, FRONT BRAKE DRUM, L=76
-
92143A92143-1936 COLLAR, FRONT AXLE, L=12COLLAR, FRONT AXLE, L=12
