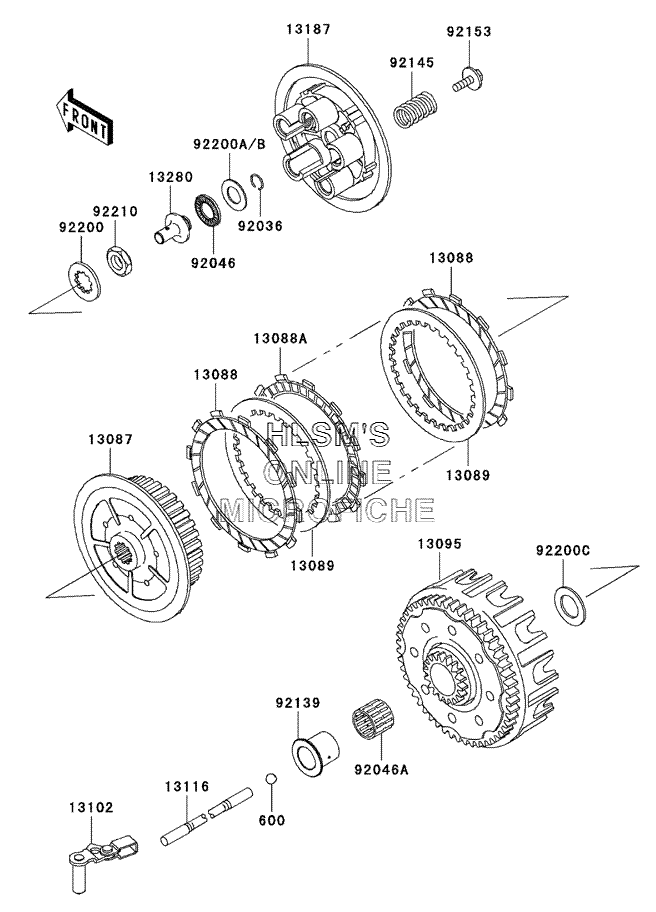

CLUTCH для Kawasaki KX 125 - 2003 года выпуска
-
№АртикулНазвание
-
600600A1000 BALL, STEEL, 5/16"BALL, STEEL, 5/16"
-
1308713087-1184 HUB, CLUTCHHUB, CLUTCH
-
1308813088-1057 PLATE, FRICTIONPLATE, FRICTION
-
13088A13088-1102 PLATE, FRICTIONPLATE, FRICTION
-
1308913089-013 PLATE, CLUTCH, T=1.6PLATE, CLUTCH, T=1.6
-
1309513095-1412 HOUSING, COMP, CLUTCHHOUSING, COMP, CLUTCH
-
1310213102-1160 RELEASE, COMP, CLUTCHRELEASE, COMP, CLUTCH
-
1311613116-1171 ROD, PUSHROD, PUSH
-
1318713187-1089 PLATE, CLUTCH OPERATINGPLATE, CLUTCH OPERATING
-
1328013280-1266 HOLDERHOLDER
-
9203692036-007 RING, SNAP, PISTON PINRING, SNAP, PISTON PIN
-
9204692046-1190 BEARING, NEEDLE, FNTA, 1326BEARING, NEEDLE, FNTA, 1326
-
92046A92046-1299 BEARING, NEEDLEBEARING, NEEDLE
-
9213992139-1077 BUSHINGBUSHING
-
9214592145-1487 SPRINGSPRING
-
9215392153-1123 BOLT, 6.25BOLT, 6.25
-
9220092200-1178 WASHERWASHER
-
92200A92200-1547 WASHER, T=1.0WASHER, T=1.0
-
92200B92200-1548 WASHER, T=1.5WASHER, T=1.5
-
92200C92200-1621 WASHERWASHER
-
9221092210-1207 NUT, 16MMNUT, 16MM
