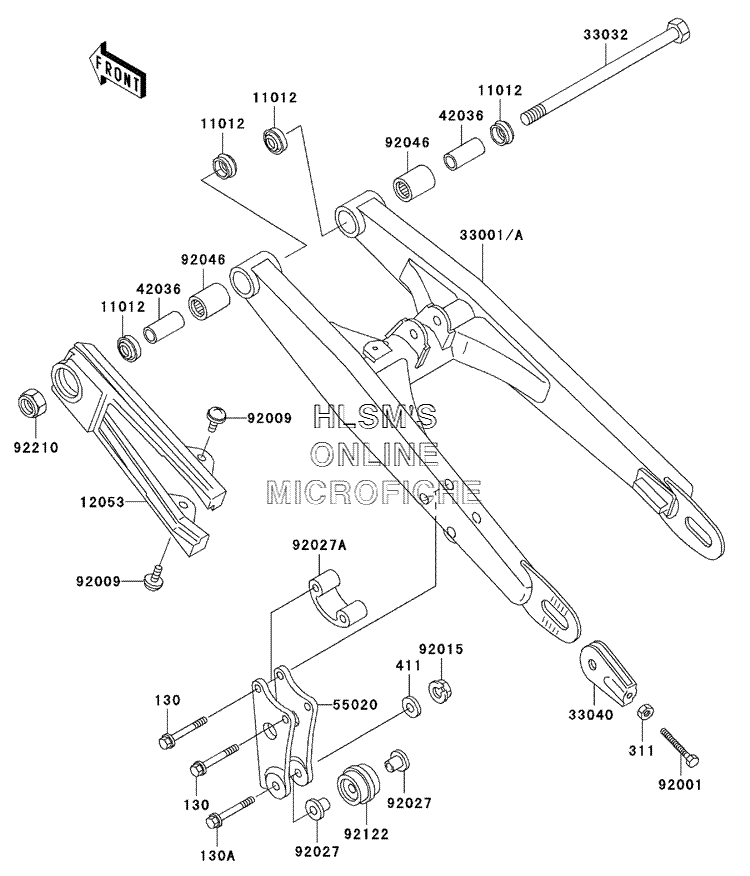

SUSPENSION - SWINGARM для Kawasaki KX 60 - 2003 года выпуска
-
№АртикулНазвание
-
130130G0645 BOLT, FLANGED, 6X45BOLT, FLANGED, 6X45
-
130A130G0650 BOLT, FLANGED, 6X50BOLT, FLANGED, 6X50
-
311311B0600 NUT, HEX, 6MMNUT, HEX, 6MM
-
411411B0600 WASHER, PLAIN, 6MMWASHER, PLAIN, 6MM
-
1101211012-1263 CAPCAP
-
1205312053-1410 GUIDE, CHAIN, FRONTGUIDE, CHAIN, FRONT
-
3300133001-1307-CE ARM, COMP, SWING (SILVER NO.25)ARM, COMP, SWING (SILVER NO.25)
-
3303233032-1031 SHAFT, SWING ARM, PIVOTSHAFT, SWING ARM, PIVOT
-
3304033040-1055 ADJUSTER, CHAINADJUSTER, CHAIN
-
4203642036-1067 SLEEVE, SWING ARM, L=34SLEEVE, SWING ARM, L=34
-
5502055020-1163 GUARD, CHAIN, REARGUARD, CHAIN, REAR
-
9200192001-1463 BOLT, 6X39BOLT, 6X39
-
9200992009-1286 SCREW, 6X10 (WHITE)SCREW, 6X10 (WHITE)
-
9201592015-1393 NUT, 6MMNUT, 6MM
-
9202792027-1183 COLLARCOLLAR
-
92027A92027-1495 COLLAR, CHAIN GUIDECOLLAR, CHAIN GUIDE
-
9204692046-1046 BEARING, NEEDLEBEARING, NEEDLE
-
9212292122-1030 ROLLER, CHAIN GUIDEROLLER, CHAIN GUIDE
-
9221092210-1249 NUT, LOCK, 12MMNUT, LOCK, 12MM
