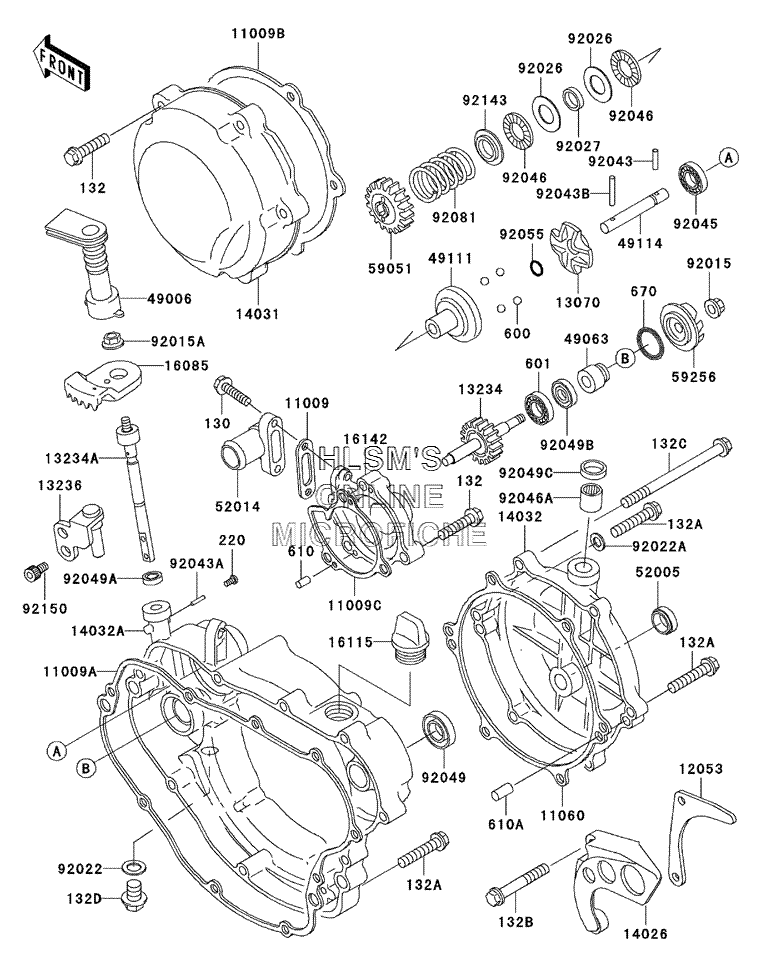

ENGINE COVER для Kawasaki KDX 200 - 2004 года выпуска
-
№АртикулНазвание
-
1100911009-1952 GASKET, ELBOWGASKET, ELBOW
-
11009A11009-1996 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
11009B11009-1997 GASKET, GENERATOR COVERGASKET, GENERATOR COVER
-
11009C11009-1998 GASKET, WATER PUMP COVERGASKET, WATER PUMP COVER
-
1106011060-1630 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
1205312053-1228 GUIDE, CHAINGUIDE, CHAIN
-
1307013070-1122 GUIDEGUIDE
-
1323413234-1091 SHAFT, COMP, PUMPSHAFT, COMP, PUMP
-
13234A13234-1101 SHAFT, COMP, GOVERNORSHAFT, COMP, GOVERNOR
-
1323613236-1260 LEVER, COMP, GOVERNORLEVER, COMP, GOVERNOR
-
1402614026-1159 COVER, CHAINCOVER, CHAIN
-
1403114031-1231 COVER, GENERATORCOVER, GENERATOR
-
1403214032-1382 COVER, CLUTCH, OUTCOVER, CLUTCH, OUT
-
14032A14032-1418 COVER, CLUTCHCOVER, CLUTCH
-
1608516085-1273 GEARGEAR
-
1611516115-018 CAP, OIL FILLERCAP, OIL FILLER
-
1614216142-1090 COVER, PUMPCOVER, PUMP
-
4900649006-1291 BOOT, GOVERNOR SHAFTBOOT, GOVERNOR SHAFT
-
4906349063-1055 SEAL, MECHANICAL, WATERSEAL, MECHANICAL, WATER
-
4911149111-1051 HOLDER, GOVERNOR WEIGHTHOLDER, GOVERNOR WEIGHT
-
4911449114-1058 SHAFT, GOVERNORSHAFT, GOVERNOR
-
5200552005-1055 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
5201452014-1067 ELBOWELBOW
-
5905159051-1189 GEAR, SPUR, GOVERNOR (18 TEETH)GEAR, SPUR, GOVERNOR (18 TEETH)
-
5925659256-1063 IMPELLERIMPELLER
-
9201592015-1365 NUT, 6MMNUT, 6MM
-
92015A92015-1572 NUT, 6MMNUT, 6MM
-
9202292022-1488 WASHER, 8.2X14X1.0WASHER, 8.2X14X1.0
-
92022A92022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
9202692026-1238 SPACER, 15X28X1SPACER, 15X28X1
-
9202792027-1839 COLLAR, 15.2X17X4COLLAR, 15.2X17X4
-
9204392043-1256 PIN, 3X12.8PIN, 3X12.8
-
92043A92043-1293 PIN, 2X9.8PIN, 2X9.8
-
92043B92043-1319 PIN, 3X19.8PIN, 3X19.8
-
9204592045-1305 BEARING, BALL, 608MC3BEARING, BALL, 608MC3
-
9204692046-1052 BEARING, NEEDLE, AXK1102BEARING, NEEDLE, AXK1102
-
92046A92046-1230 BEARING, NEEDLEBEARING, NEEDLE
-
9204992049-013 SEAL, OIL, SB18307SEAL, OIL, SB18307
-
92049A92049-1207 SEAL, OIL, SDO8144SEAL, OIL, SDO8144
-
92049B92049-1259 SEAL, OIL, SC12 28.555SEAL, OIL, SC12 28.555
-
130130Z0520 BOLT, FLANGEDBOLT, FLANGED
-
132132Y0625 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132Y0630 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132B132Y0640 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132C132Y0680 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132D132Y0810 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
220220B0306 SCREW, PAN, CROSSCREW, PAN, CROS
-
600600A1000 BALL, STEEL, 5/16"BALL, STEEL, 5/16"
-
601601B6201U BEARING, BALL, #6201LUC3/2ABEARING, BALL, #6201LUC3/2A
-
610610A0408 ROLLER, 4X8ROLLER, 4X8
-
610A610A0612 ROLLER, 6X12ROLLER, 6X12
-
670670B1506 O-RING, 6MMO-RING, 6MM
-
92049C92049-1262 SEAL, OILSEAL, OIL
-
9205592055-1343 O-RING, 5.5X1.5O-RING, 5.5X1.5
-
9208192081-1769 SPRING, GOVERNORSPRING, GOVERNOR
-
9214392143-1001 COLLARCOLLAR
-
9215092150-1888 BOLT, SOCKET, 4X8BOLT, SOCKET, 4X8
